This article describes how to turn off the Elo Splash screen through the Factory OSD Menu on an ET1509L Touchmonitor

1. Connect video source to monitor and connect AC power cord.

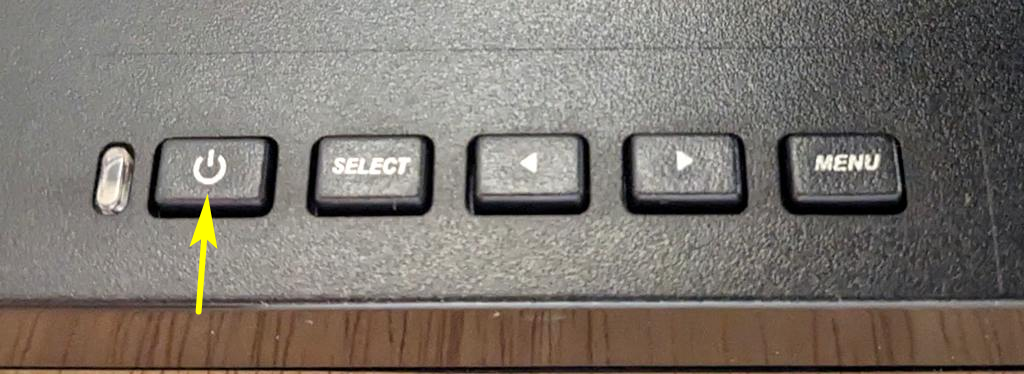

2. Turn off DC power by pressing the Power button on the OSD keys on back of monitor.

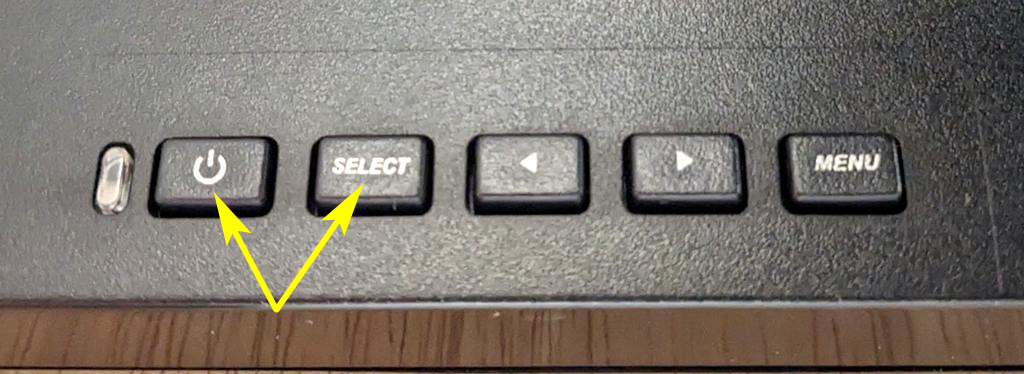

3. Press and hold the Select and Power buttons in at the same time.

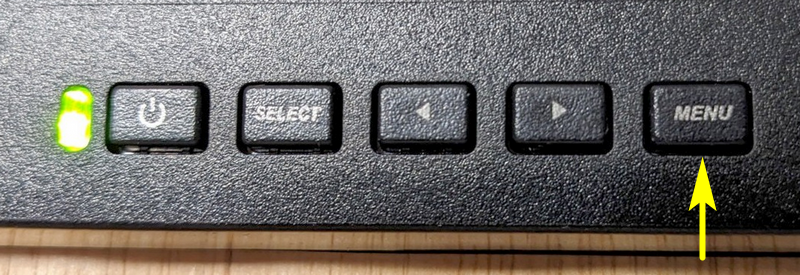

4. When video appears on the screen, release all buttons, then press the Menu button.

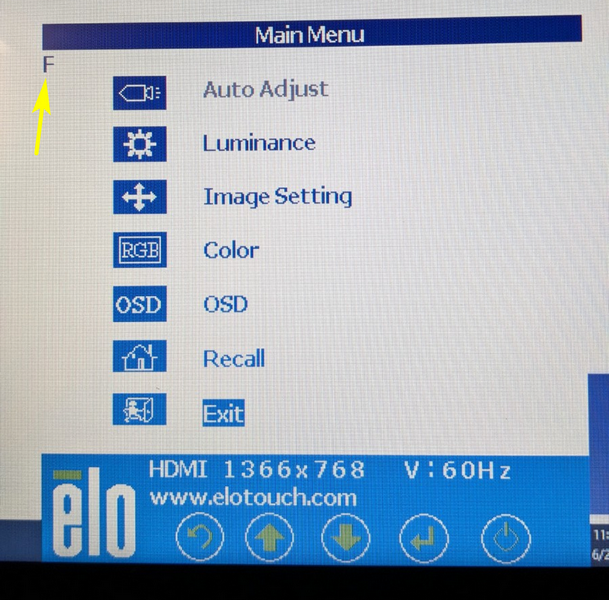

5. Use the Left/Right arrow keys to navigate to the "F" in the upper left corner of the Main Menu, then press the Select button to enter the Factory OSD Menu.



6. You are now in the Elo Factory OSD Menu. Use the Left/Right arrow buttons on back of monitor to navigate the menu until you get to ELO LOGO ON.



7. Press the Select button then press either the Left or Right Arrow button to toggle the setting from ON to OFF.

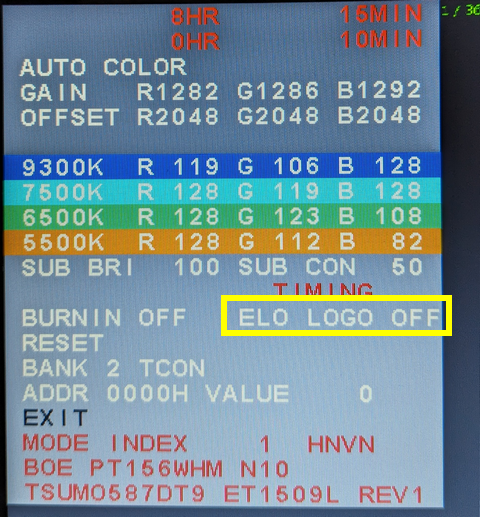

When OFF appears, press the Select button again. You should see ELO LOGO OFF in white letters as shown below.



8. Use the Left/Right arrow buttons to navigate to the Exit option in the menu  and press the Select button to exit the menu, or turn monitor power off and back on. You should no longer see the Elo splash screen during monitor power up.
