Discontinuation & Specifications: Side Mounting Bracket Kit for IDS 4202L & 4602L (P/N: E329508)
Audience: Public / Elo Customers, Kiosk Integrators & Field Technicians
Article Type: Product Lifecycle & Hardware Accessory Reference
⚠️ Product Status: End of Life (Discontinued)
The Side Mounting Bracket Kit (P/N: E329508 / ELO-IDS02S-SIDEMOUNT-BKT-R) for 4202L and 4602L Interactive Digital Signage (IDS) displays was officially discontinued on June 8, 2021. Factory inventory has been depleted and no direct replacement parts are available.
Reference: PMB 745: Elo Transition Notice – 4602L Interactive Displays
Kit Contents & Hardware Checklist
| Qty | Component Description | Notes |
|---|---|---|
| 4× | Side-Mount Kiosk Brackets | Chassis interface brackets |
| 4× | Side-Mount Brackets | Enclosure mounting tabs |
| Set | M4 × 8 mm Screws | Includes integrated spring lock washers |
| 1× | Installation Instruction Flyer | A5 black & white printed procedure sheet |
Bracket Components & Hardware Photos

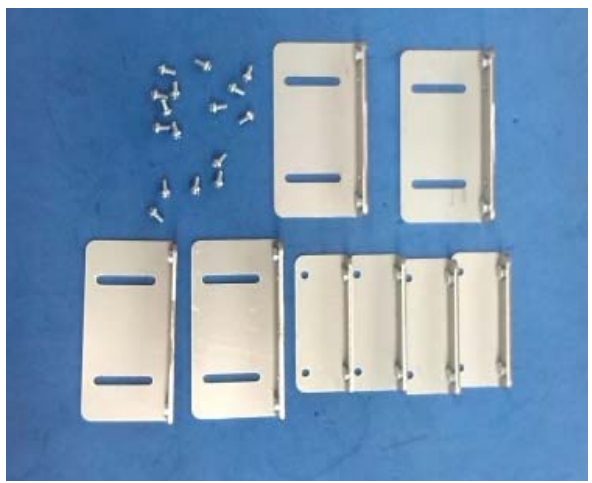

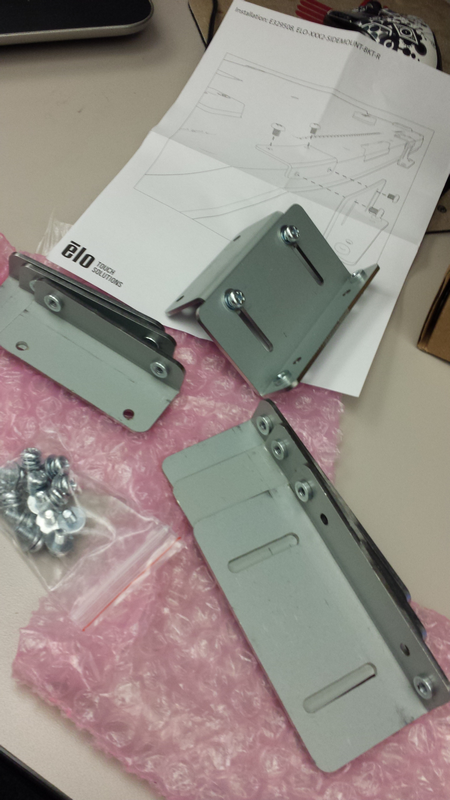

Side-Mount Bracket Components:
Bracket Dimensions & Hole Profiles:

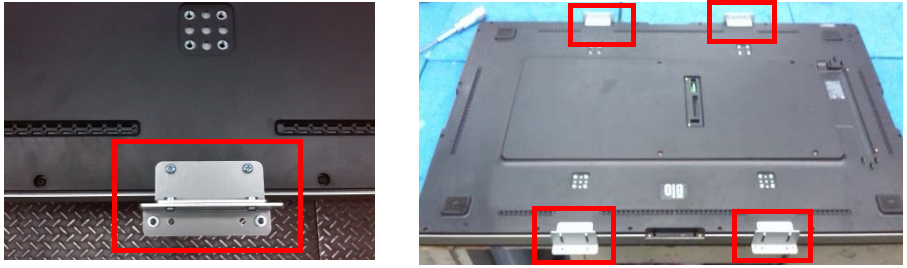

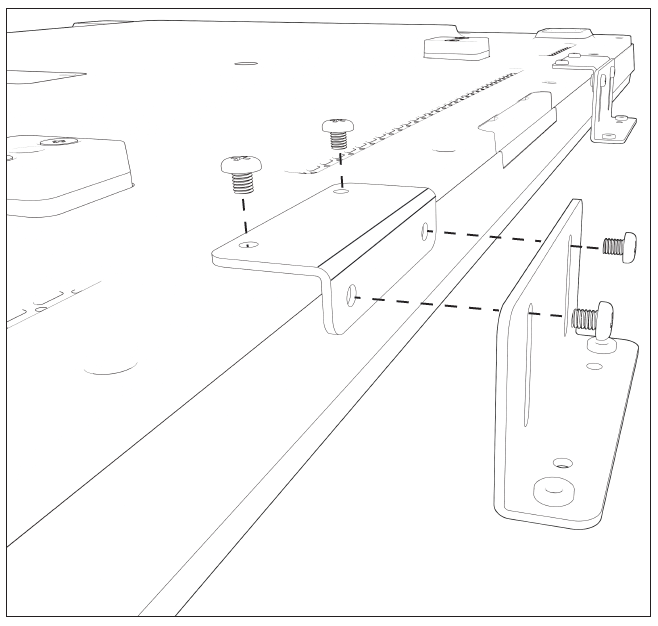

Assembly & Chassis Mounting Diagram
ℹ Mounting Guidance: When flush-mounting 4202L or 4602L displays into kiosk enclosures, use the M4 × 8mm screws with spring washers to attach the brackets to the designated threaded chassis side-points as illustrated above.
