Where can I find E047458, 6-Inch Pole Mount Kit Dimensional Drawings?

This article provide the E047458, 6-Inch Pole Mount Kit Dimensional Drawings as an image

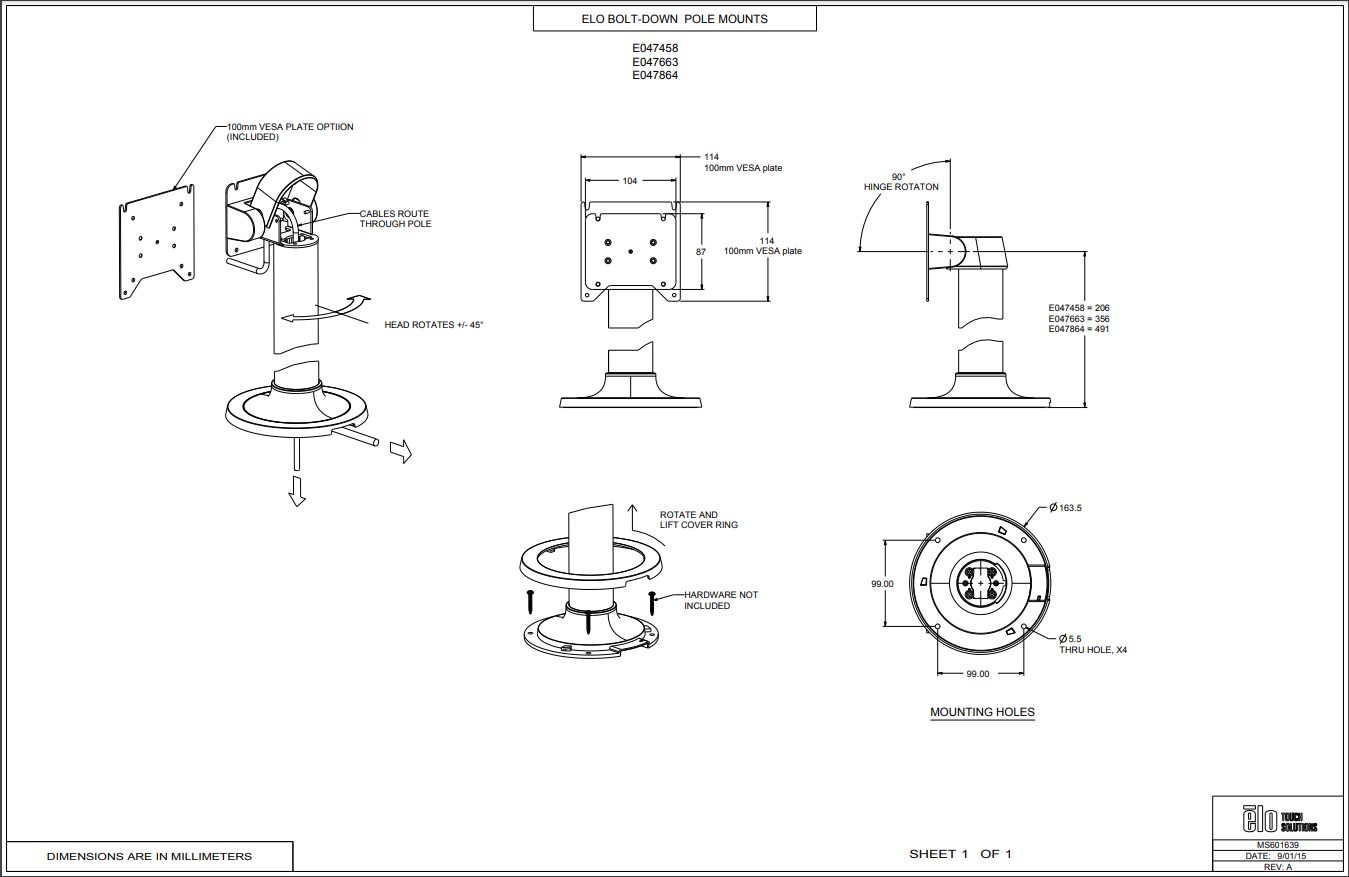

E047458, 6-Inch Pole Mount Kit Dimensional Drawings

The below drawing is also on the Elo website HERE

Request a CAD drawing HERE

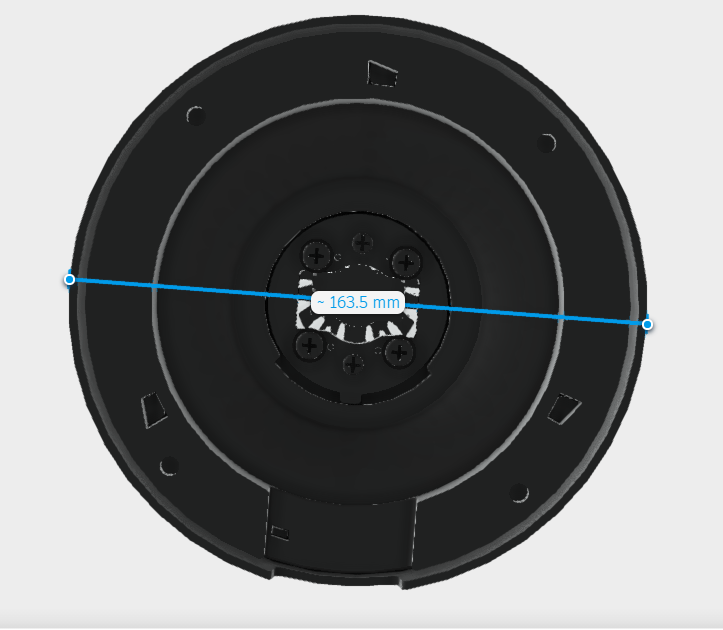

Below shows base diameter measurement of stand = 163.5mm




Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
