How do I assemble the Pole Mount Floor Stand E048069?

This article explains how to assemble the Pole Mount Floor Stand E048069

Below describes how to assemble P/N: E048069 Pole Mount Floor Stand.

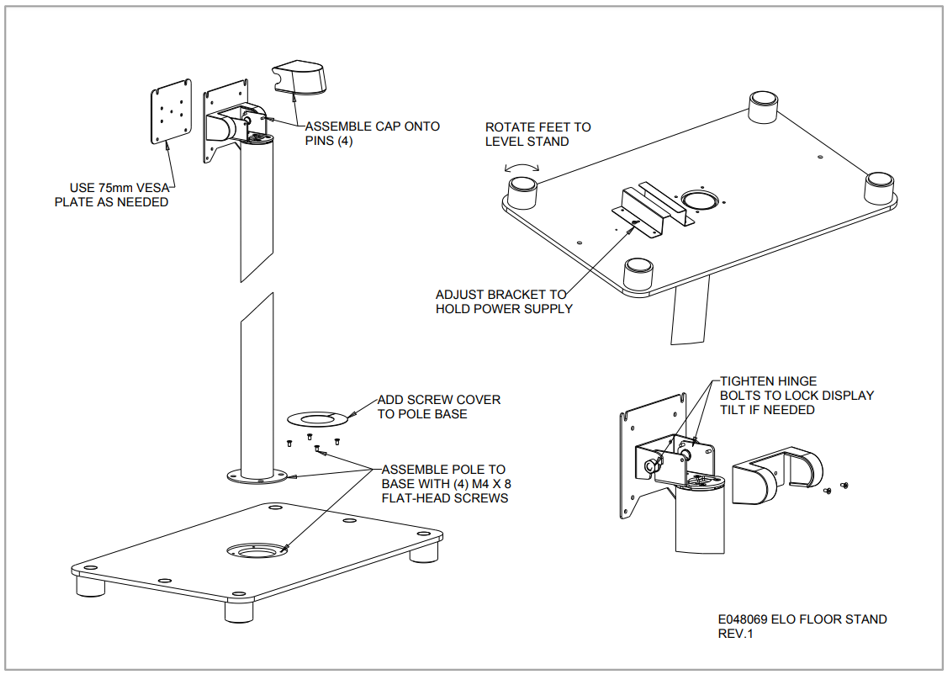

Each Pole Stand kit is shipped with the below assembly instruction sheet.

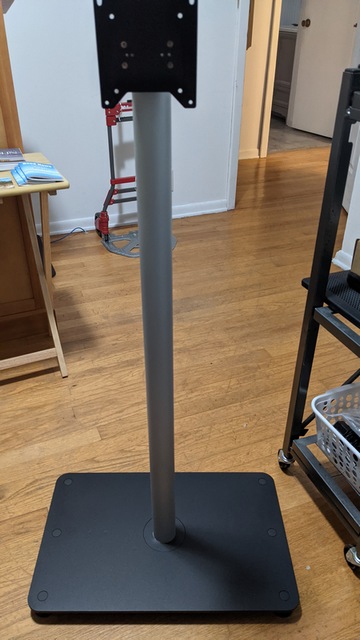

Below are photos of the Pole Stand out of the box and assembled.

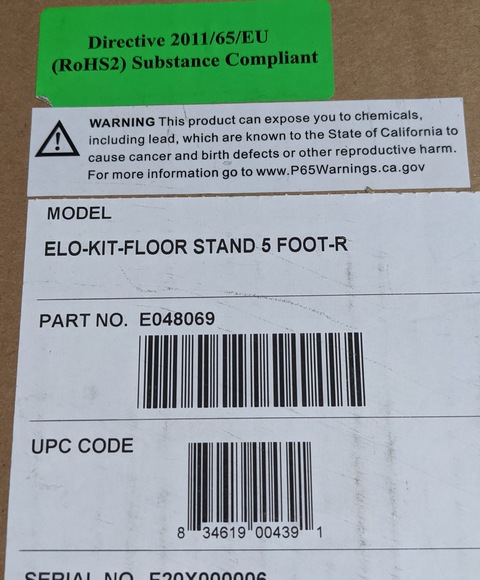

1. Outer label on box.

Box label

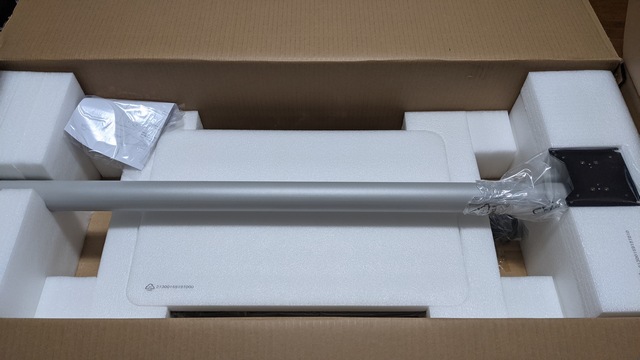

2. Remove pole from top layer of box.

Open box

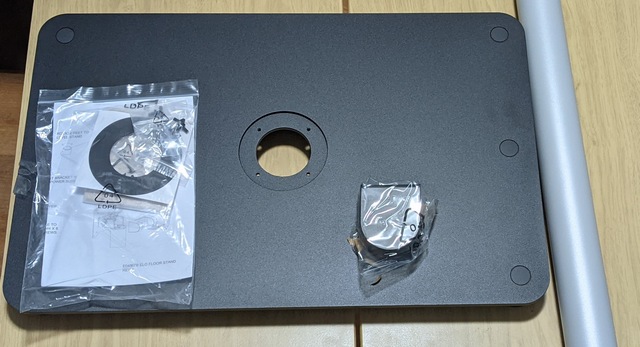

3. Remove stand base and other parts from box.

Stand base in box beneath pole

4. Below shows contents of box before unwrapping parts.

Parts included in box

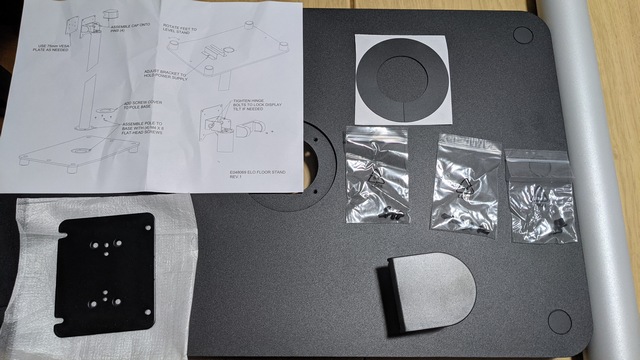

5. All contents of box unwrapped.

All packaged parts unpackaged

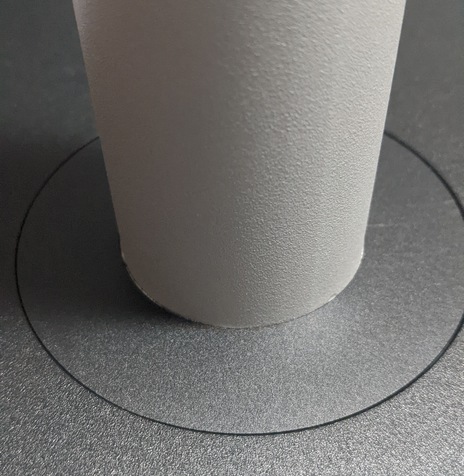

6. Stand pole up on base and align holes.

Place pole onto base and align holes

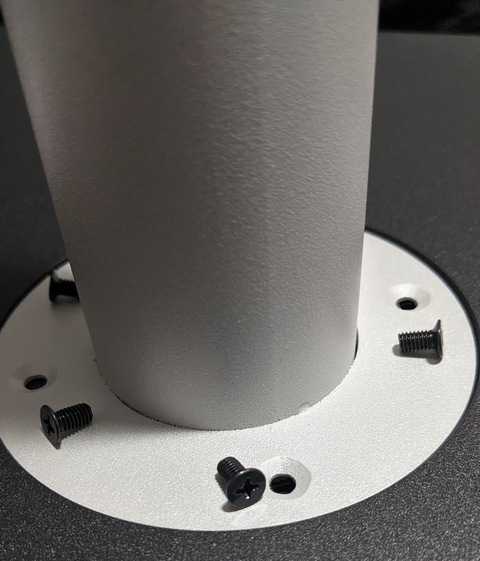

7. Use the flat-head screws to secure pole to stand base.

Secure pole to base using flathead screws

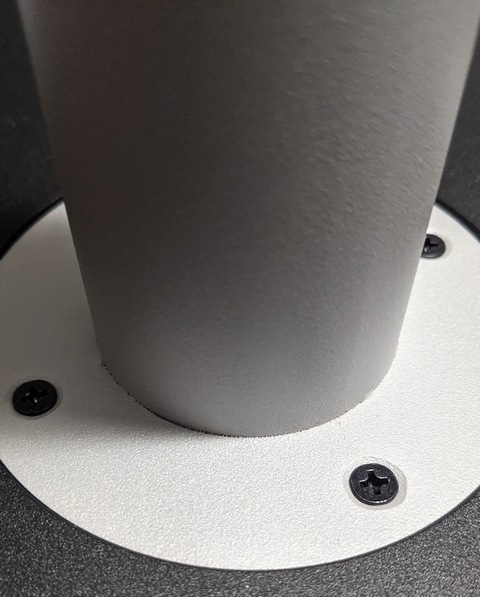

8. Align adhesive ring cover over screws and press into place.

Place adhesive cover over screws

9. Run any desired cables up through hole in bottom of base and through the access hole in pole.

Run any cables up through access hole in stand base and pole and stand upright

10. Secure monitor or touchcomputer to pole using the provided 4mm VESA screws. If 75mm VESA is needed, use the included 75mm VESA plate.

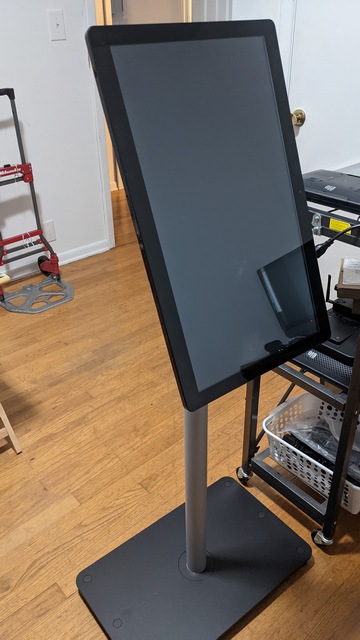

Attach monitor or computer to stand using provided 4mm VESA screws.
