This article explains how to connect a secondary monitor to the Z30 POS Stand

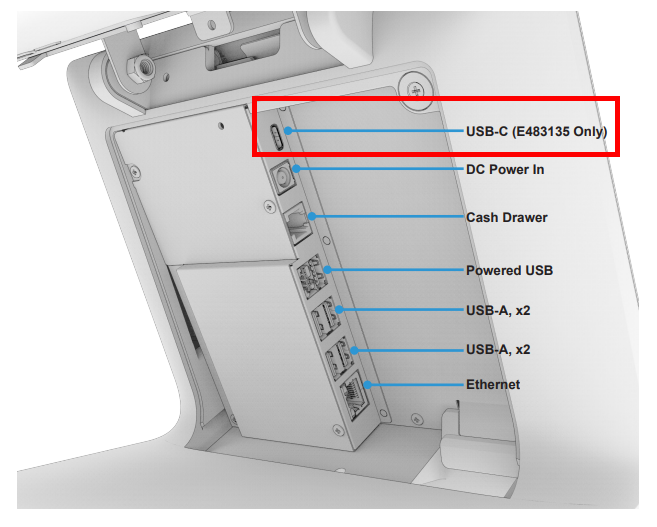

To connect a secondary monitor to the Z30 POS Stand with NO CFD (E483135), simply add a USB-C cable connection from the USB-C port on the stand to a USB-C compatible monitor.


Suggested hardware:

Z30 POS Stand

• Z30 POS Stand without CFD - Elo P/N: E483135

Compatible I-Series 4 (Slate)

• Standard Model - Elo P/N: E391994
• Value Model - Elo P/N: E392786

Compatible USB-C Monitors

• 0702L – Elo P/N: E796382
• 1002L – Elo P/N: E155834 and E324341
• 1302L – Elo P/N: E683595 and E683787
• 1502L – Elo P/N: E125496

USB-C Cable

• USB-C to USB-C Cable Kit – Elo P/N: E710364
