This article provides step-by-step instructions on how to disable and re-enable the rear-facing customer display on an Elo Z30 POS stand, specifically using the I-Series 3 Slate running Windows 10 IoT Enterprise

It guides users through accessing the Intel Graphics Command Center to manage display settings, helping them turn off the customer display when needed and easily reactivate it by adjusting the multiple display options.

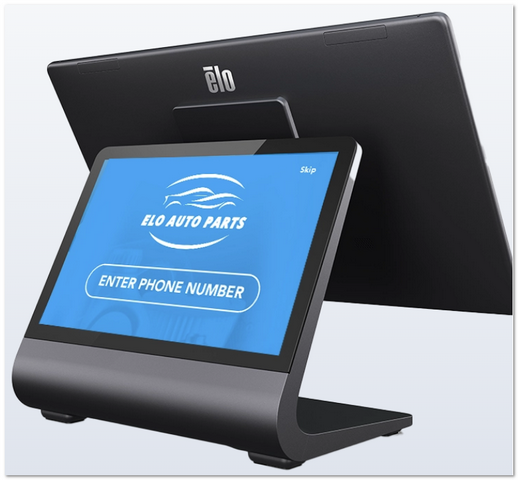

How to Disable the Rear-Facing Customer Display on an Elo Z30 POS Stand

Applies to:

• Elo Z30 POS Stand with Customer-Facing Display (CFD), P/N: E768749
• Elo I-Series with Intel System

Tested with:

• I-Series 3 Slate with Intel, Windows 10 IoT ENT, P/N: E984657

Overview:
This article explains how to disable and re-enable the rear-facing customer display on an Elo Z30 POS stand with an I-Series 3 Slate running Windows 10 IoT Enterprise.

Steps to Disable the Rear-Facing Customer Display:

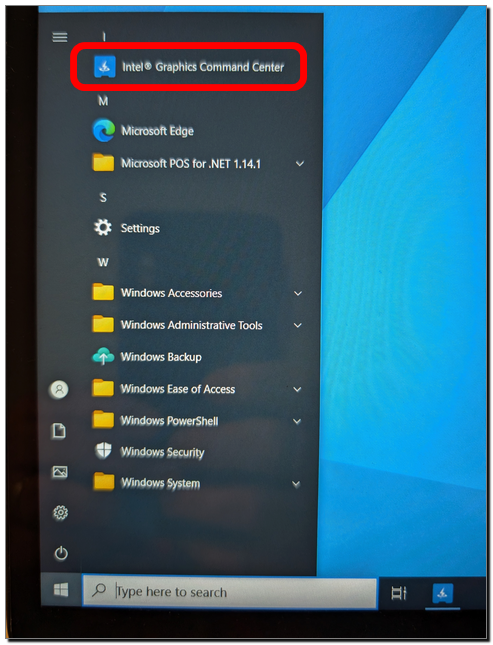

1. Open Intel Graphics Command Center:

   • Click on the Windows Start icon.
   • Select the Intel(R) Graphics Command Center from the menu.
   • Alternatively, you can type “Intel” in the Windows 10 search bar and select Intel Graphics Command Center from the search results.

2. Access Display Settings:

   • In the Intel Graphics Command Center, navigate to the Display section.
   • Click on the three dots (⋮) next to the graphic representing Display 2.

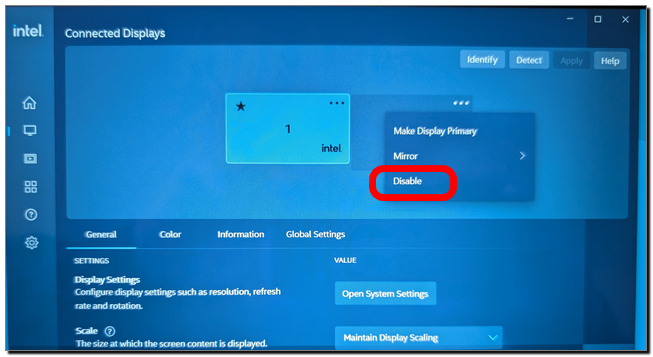

3. Disable Display 2:

   • From the drop-down menu, select Disable.

4. Confirmation:
   The rear-facing customer display will now be turned off.

Steps to Re-Enable the Rear-Facing Customer Display:

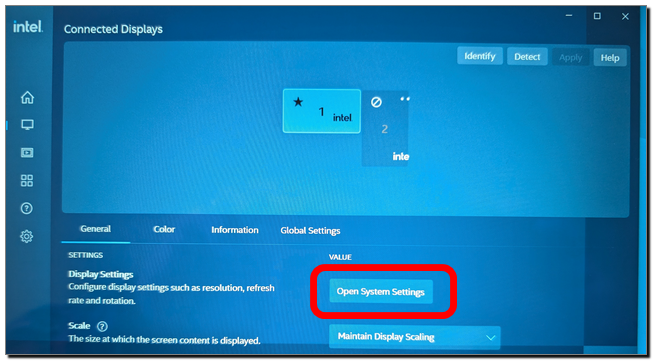

1. Access System Settings:

   • In the Intel Graphics Command Center, click on Open System Settings.

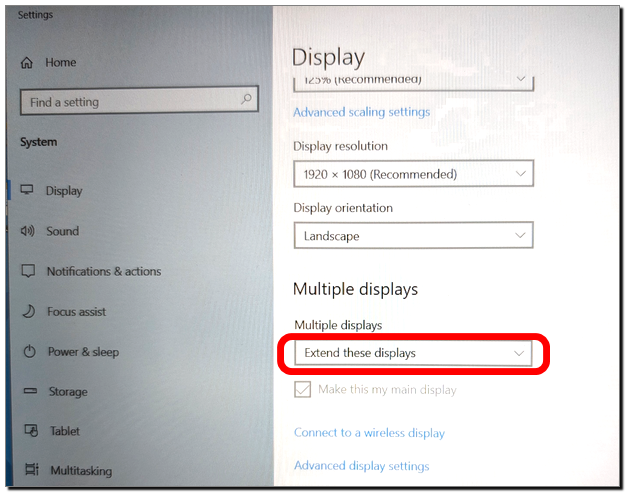

2. Enable Multiple Displays:

   • Scroll down to the Multiple Displays section.
   • Select Extend these displays from the drop-down menu.

3. Apply Settings:

   • Choose Keep these settings to confirm the changes.
     The rear-facing customer display will now be active again.
