This article provides more information about E860319 Front Mount Bezel Kit

Below is information for P/N: E860319 Front Mount Bezel Kit for 1739L Open Frame Monitors.

Part Number: E860319

• Detail: ELO-17INCH-FRONTMOUNT-BEZ-R
• Description: 1739L Front-Mount Bezel Kit
• Color: Black
• Material: Brushed Aluminum, Metal
• Thickness: 4.8mm

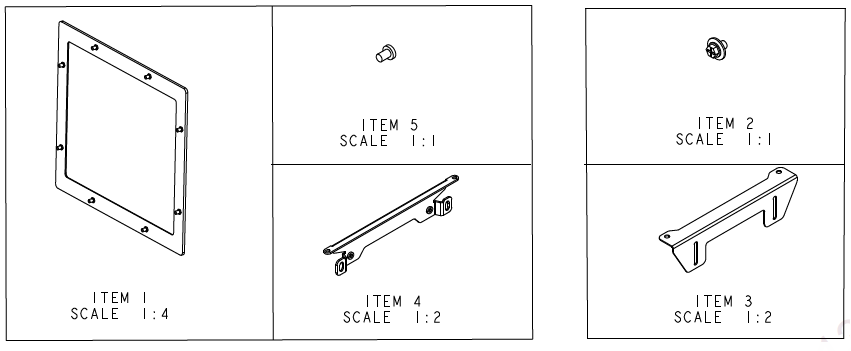

Kit Contents and Quantity

• 1 - Front Mount Bezel Assembly, Aluminum 17-inch
• 8 - Pan Head Phillips Screw, M4 x 6
• 4 - Front Mount Bracket, 1-R, 17-inch
• 4- Front Mount Braciet, 2-R, 17-inch
• 16- Screw Cone Washer Assembly M4

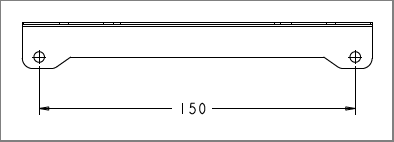

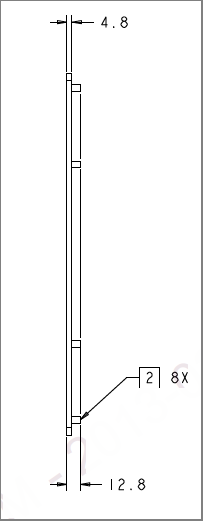

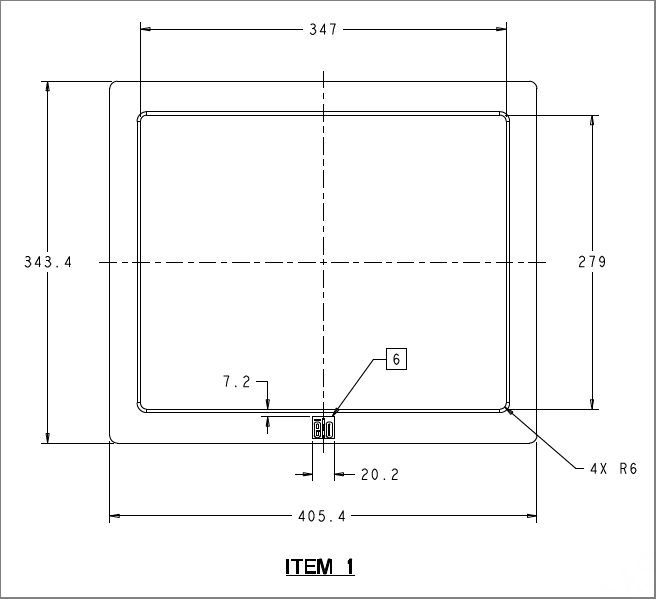

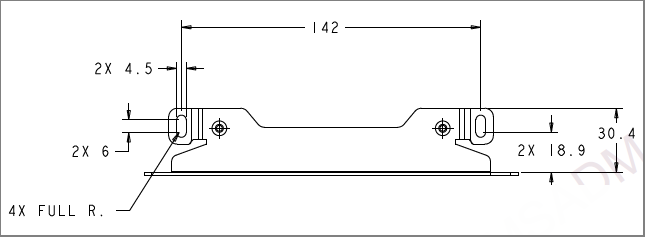

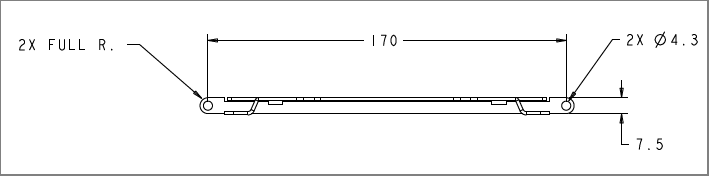

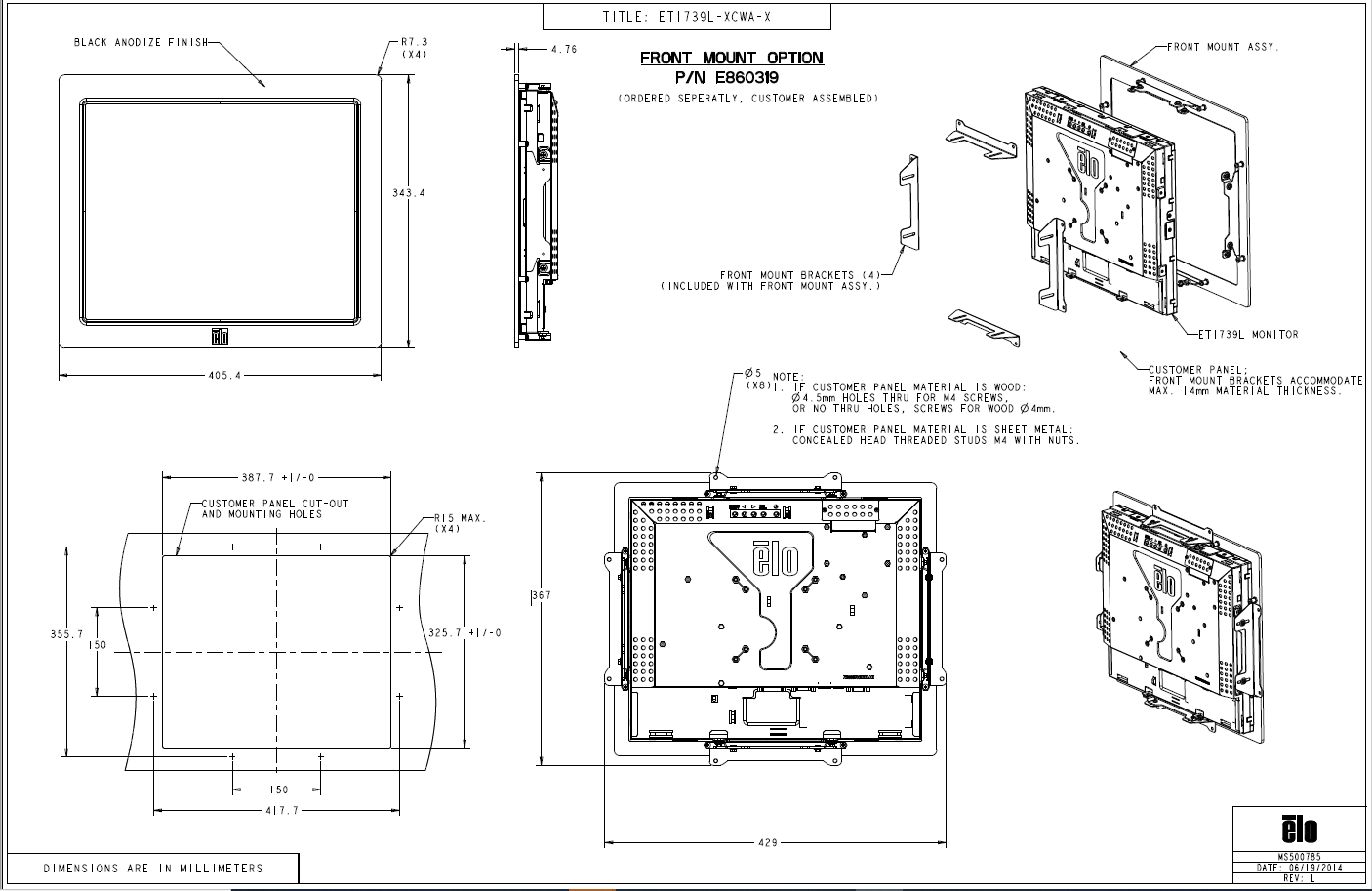

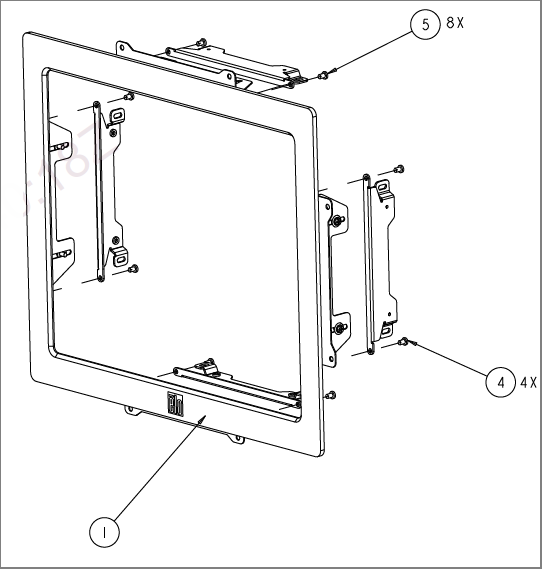

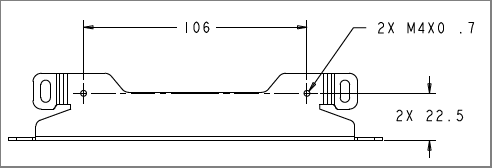

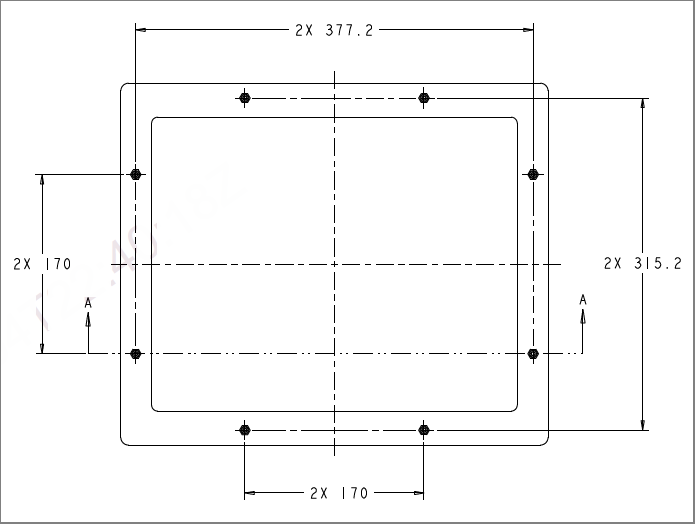

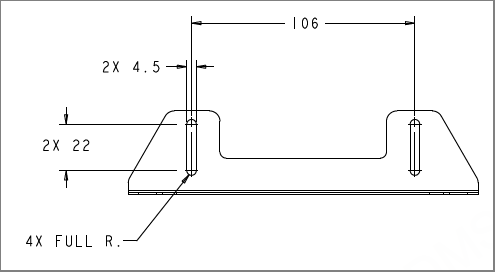

Drawings and Assembly

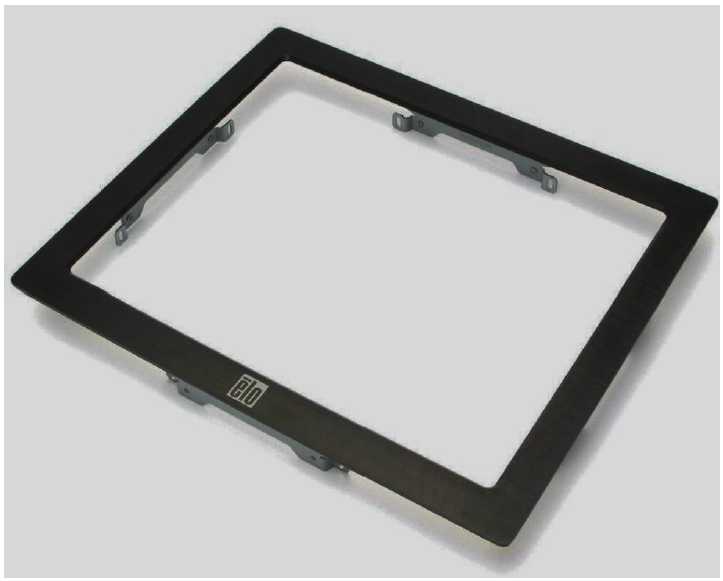

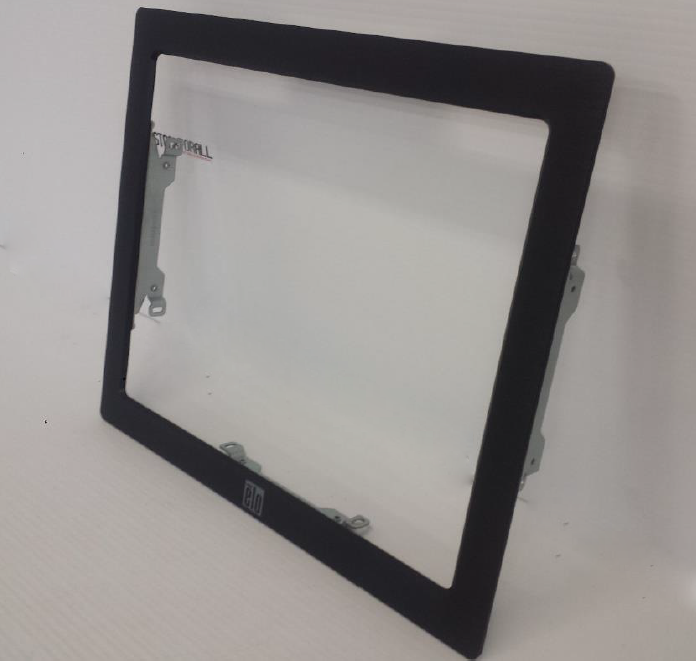

Photos
