This article provides information and drawings for Elo P/N: E160104, Table top stand for 1002L and 10i

Information and drawings for Elo P/N: E160104, Table top stand for 1002L and 10i

Part Detail: E160104: ELO-STAND-10.1IN-GY-R
Part Description: Table top stand for 1002L and 10i

The following components are included in the kit:

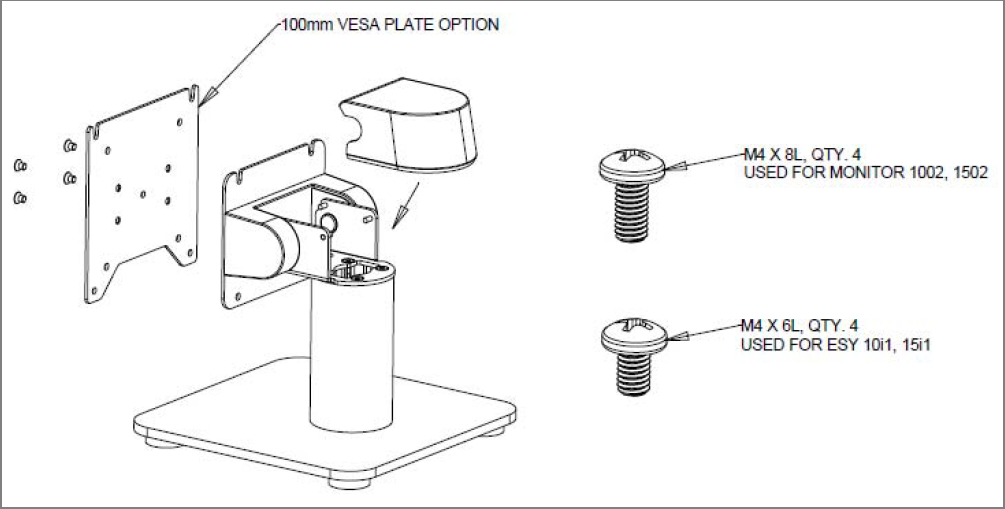

• 1x 100mm VESA plate table top stand.
• 4x M4 X 6L Philips Pan-Head, Black
• 1x Desiccant
• 4x M4 X 8L Philips Pan-Head, Black in separate bag in kit
• 1x Assembly instructions flyer

Tilt angle of the stands shall be -10° / +90 ° ± 2 °
Weight (unboxed) = 4.5 lbs (2.04117 kg)

Drawings

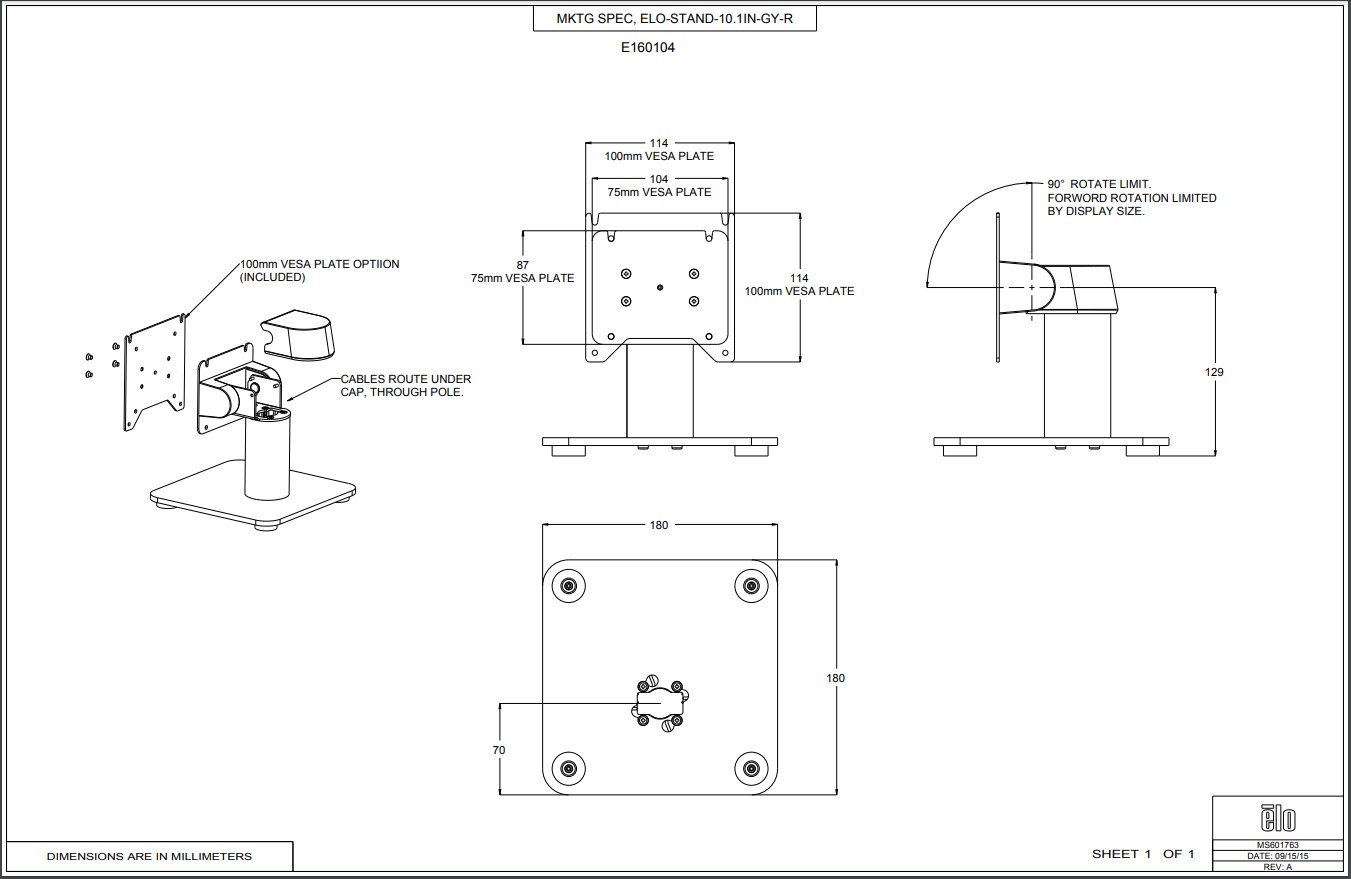

• 2-D Dimensional Drawing (.pdf format)
• 3-D CAD (.stp format)

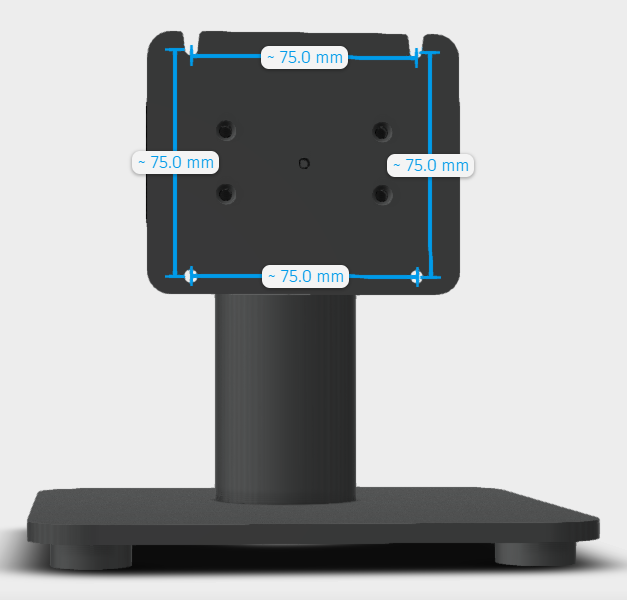

VESA Mounting Pattern = 75mm (unless 100mm VESA plate option is added)

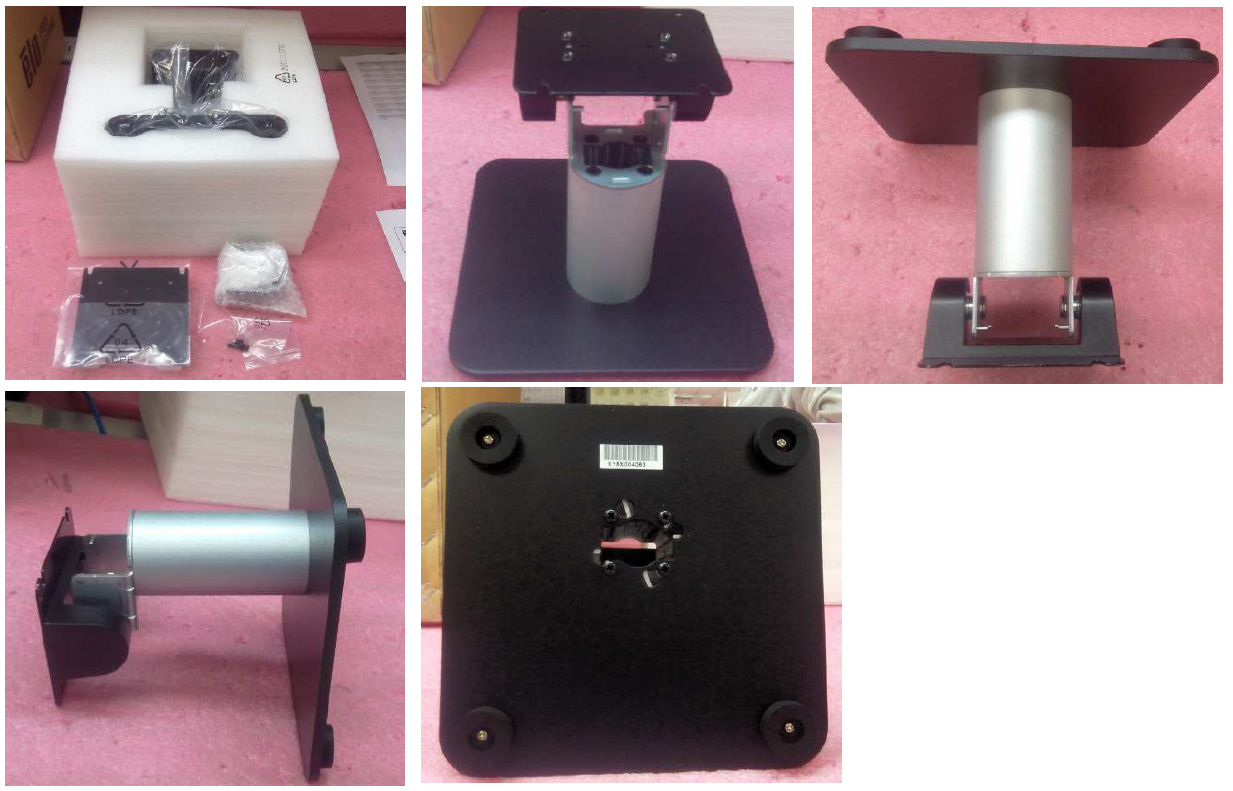

Photos
