This article provides steps for removing the HDD from the legacy B-Series AIO units.

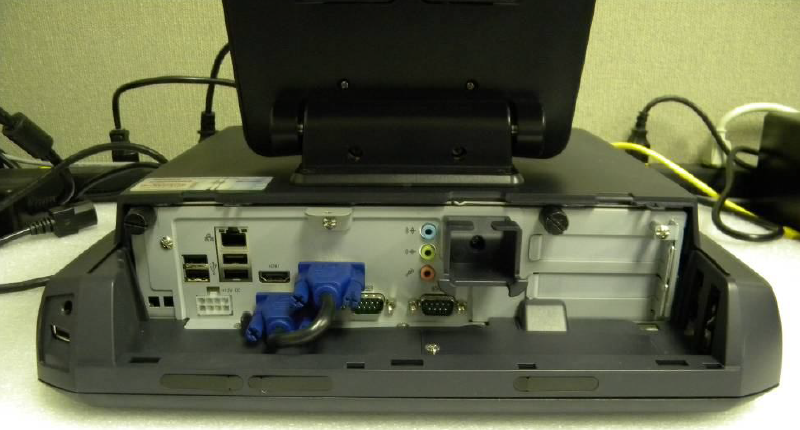

1. Place the B-Series touchcomputer face down on a level, padded surface and disconnect power from the unit. (Remove rear cable cover if attached)

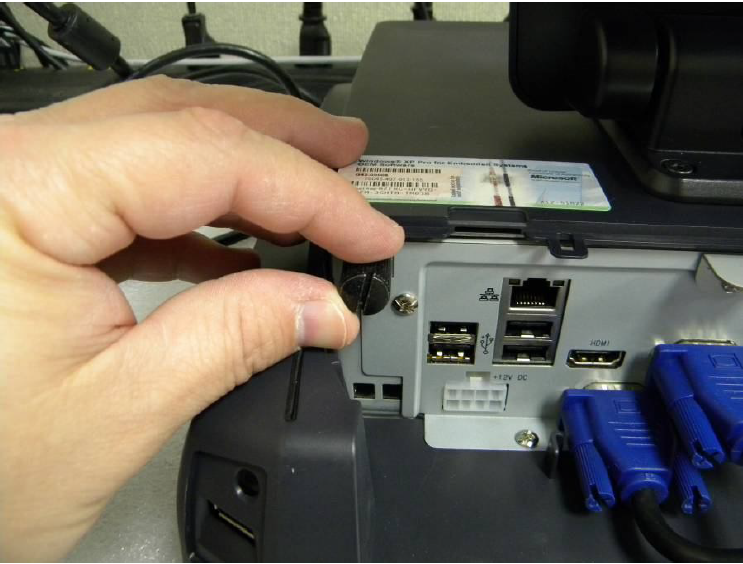

2. Remove the two (2) large thumb screws from the bottom of unit.

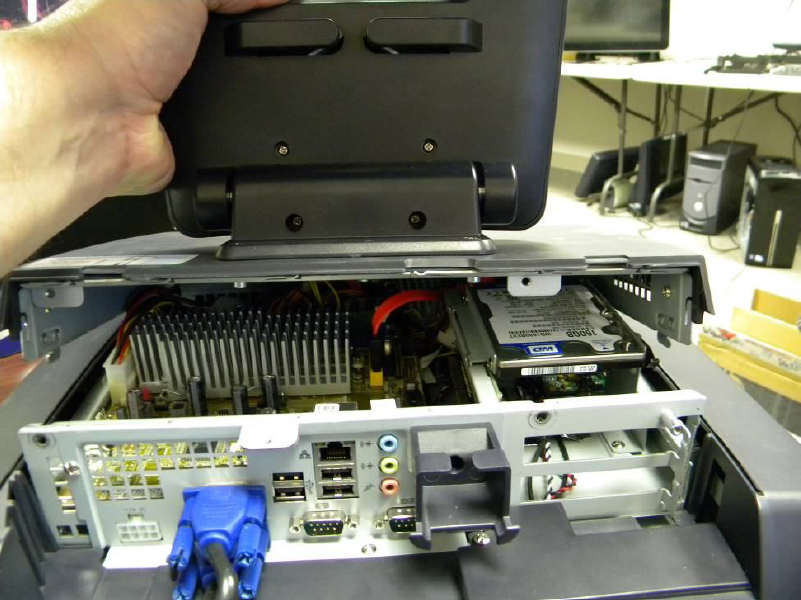

3. Remove the back cover with stand by pushing back and pulling upwards.

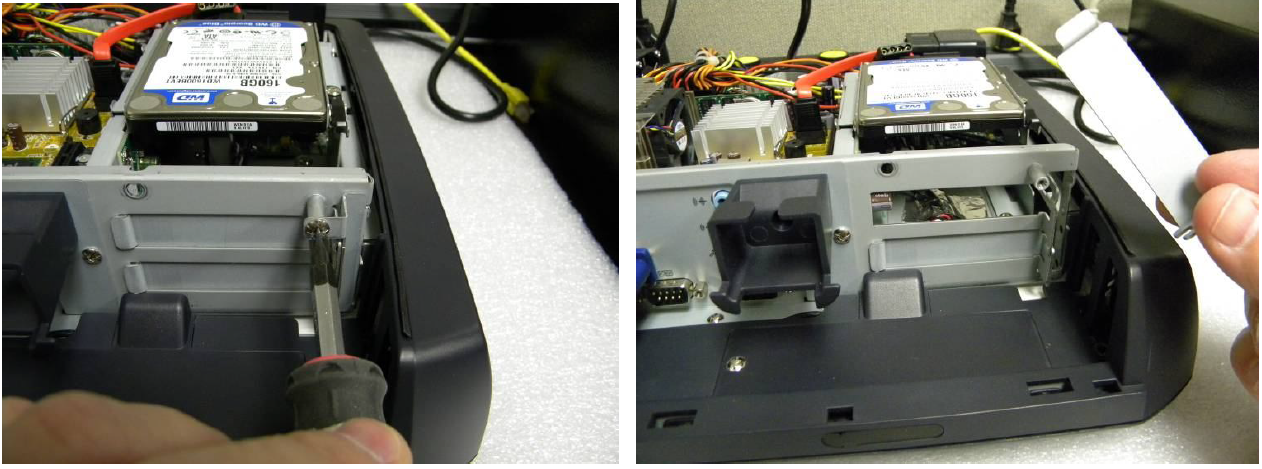

4. Remove the PCI lock by unscrewing the mounting screw and pulling the lock upward.

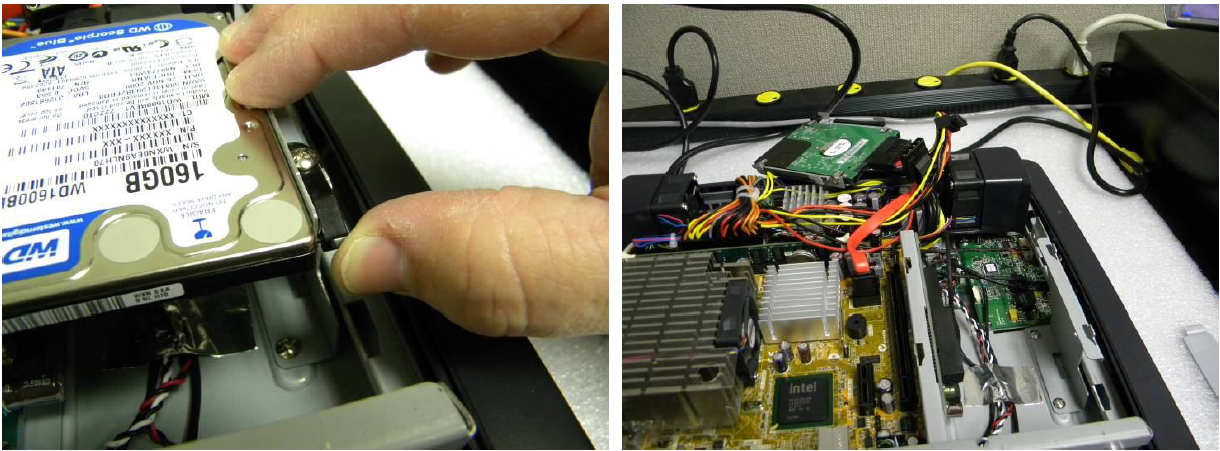

5. Remove the Hard Drive by pulling up on the mounting latch and sliding it back then remove all cable connections.
