This article provides more information about E809509, Android Expansion Module

Elo's expansion module provides options for installation - either on the back of the I-Series unit with a VESA mount or under the flip stand for better cable management.

Elo P/N: E809509
Description: KIT-EXP MODULE-LONG CABLE-ANDROID

• Compatibility: I-Series 4
  • Note: Expansion Module can only be used with the power brick included in the kit (I-Series 4 power brick is not compatible). This expansion module is backward compatible with I-Series 2.0 and 3.0

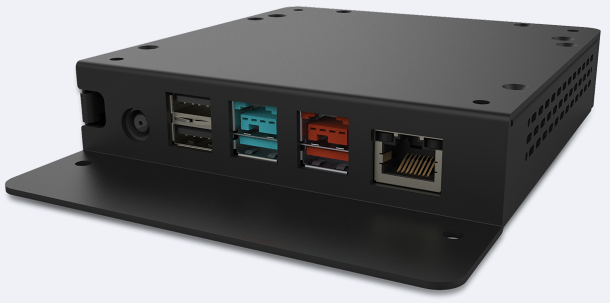

• Available I/O Ports
  • 12V (1.5A) Powered USB
  • 24V (2.3A) Powered USB
  • Serial COM Port (RJ45)
  • 2x 5V USB 2.0
  • 19V DC IN
• Dimensions - 5.79" x 4.69" x 1.02" / 147 mm x 119 mm x 26 mm
• Shipping Box Dimensions - 13.5" x 10.0" x 3.93" / 344 mm x 255 mm x 100 mm
• Mounting Options - 100mm VESA mount
  • Additional mounting options with I-Series Flip Stand - Elo P/N: E924077 (see I-Series Flip Stand dimensional drawing MS601866 for more details)
• Weight (Unpackaged) - 1.26 lbs / 0.57 kg
• Weight (Packaged) - 4.00 lbs /1.81 kg
• Operating Temperature - 0°C to 40°C / 32°F to 104°F
• Storage Temperature - -20°C to 60°C / -4°F to 140°F
• Humidity - Operating: 20% to 80%; Storage: 10% to 95%
• Regulatory approvals and declarations:
  • CE (Europe) - Class A
  • China RoHS
• The following countries are certified with the I-Series:
  • UL, FCC (US) - Class A
  • cUL, IC (Canada)
  • CB (International safety)
  • VCCI (Japan)
  • RCM (Australia)
• MTBF - 50,000 hours demonstrated
• Warranty - 2-year
• What's in the Box
  • Power adapter
  • Power cable (1.8 m) IEC 60320-C5 to NA plug
  • Power cable (1.8 m) IEC 60320-C5 to EU/KR plug
  • RJ45 to DB9 Serial Cable
• Specific for flip-stand (E924077):
  • Qty.2 - M4 x 6 pan head
  • Qty.2 – M4 X 28 flat head
  • Qty.1 – M3 X 8 pan head
  • Qty.3 – tie-wrap
  • QIG PN E988926
  • Cable Bracket
  • Qty.1 – M3x4 pan head

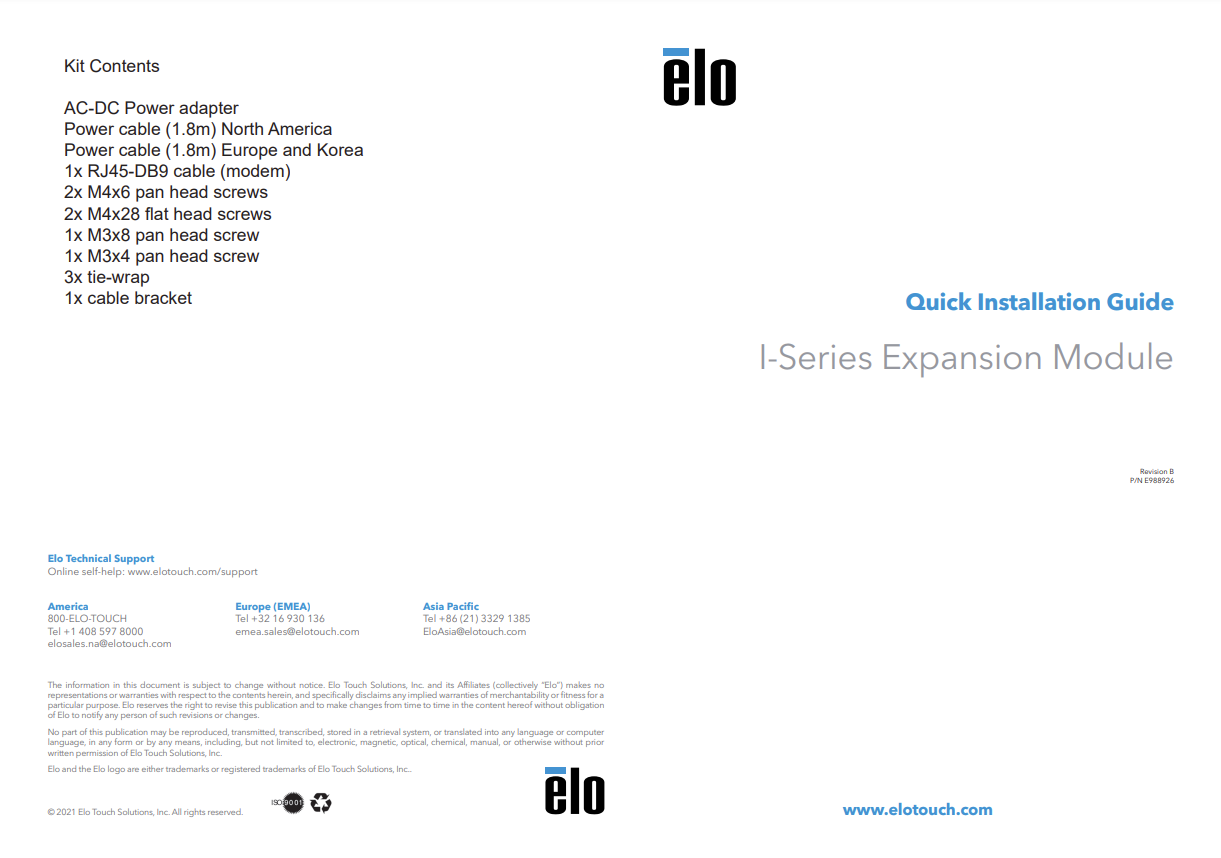

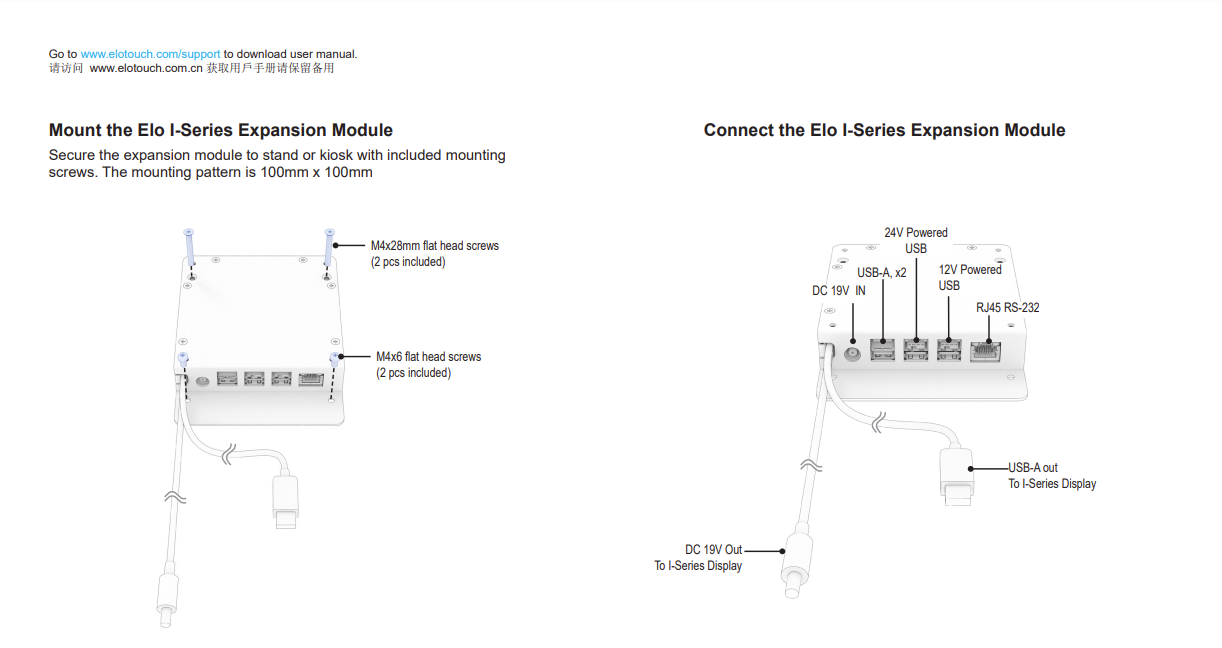

Quick Install Guide (also available in .pdf here)
