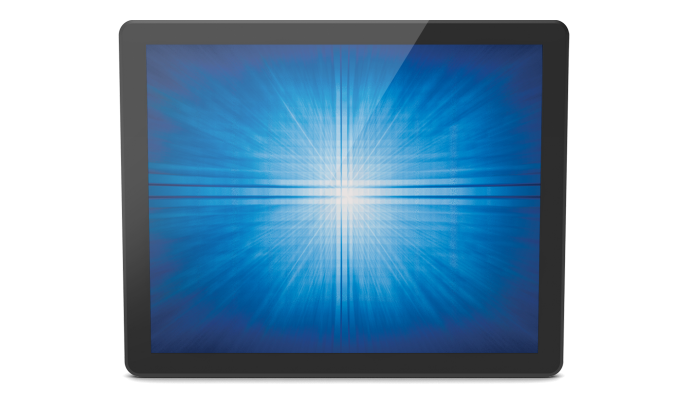

This article decribes mounting options for the Elo 1291L Open Frame Touch Monitor.

The 1291L encompasses multiple models with different touch technologies: PCAP and IntelliTouch (SAW). The mounting options vary depending upon the model. The PCAP model is Elo part number E331595. PCAP models are also notated as "Zero-Bezel" models. The IntelliTouch, or SAW, model is Elo part number E329452. SAW models are also notated as "Bezeled" models.

Part Number(s)

• IntelliTouch (Worldwide) - E329452
• TouchPro PCAP (Worldwide) - E331595
• Elo 12-inch - L-Bracket - Elo P/N: E549171
• Elo 12-inch Flush mount Bracket - Elo P/N: E548984

The PCAP, E331595, is compatible only with the Elo Flush Mount, E548984.

The SAW, E329452, is compatible only with the Elo L-Bracket, E549171.

Additional information about mounting options:

4-hole 75mm VESA mount
Rear mount through bezel or with included mounting brackets (IntelliTouch models).
Flush mount with included mounting brackets (TouchPro PCAP models)
