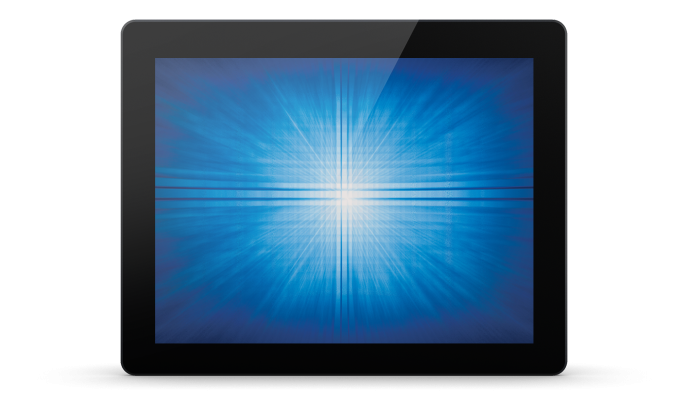

This article provides informatioin on mounting options for the Elo 1590L Open Frame Touch Monitor.

The 1590L encompasses multiple models with different touch technologies: SecureTouch, AccuTouch, PCAP, and IntelliTouch (SAW). The mounting options vary depending upon the model. PCAP models are also notated as "Zero-Bezel" models. The AccuTouch, SecureTouch, IntelliTouch, or SAW, models are also notated as "Bezeled" models.

Part Number(s)

• IntelliTouch (Worldwide) - E326738
• AccuTouch (Worldwide) - E326154
• SecureTouch (Worldwide) - E334530
• TouchPro PCAP (Worldwide) - E334335
• Elo 15-inch- Flush-mount Bracket - Elo P/N: E139556
• Elo 15-inch - L-Bracket - Elo P/N: E203787
• Elo 15-inch - Front-mount Bezel - Elo P/N: E323425
• Elo 15-inch - Rack-mount Bracket - Elo P/N: E295006

The PCAP, E334335, is compatible only with the Elo Flush Mount, E139556.

The SecureTouch, AccuTouch, PCAP, and IntelliTouch (SAW) are compatible only with the Elo L-Bracket, E203787.

Additional information about mounting options:

• 75 mm VESA mount (TouchPro PCAP Models see Part Numbers for details)
• 75 mm and 100mm VESA mount (IntelliTouch/AccuTouch/SecureTouch Models see Part Numbers for details)
• Rear mount (TouchPro PCAP Models see Part Numbers for details)
• 2 Hole mounting interface on all four sides.
• Front mount with optional bezel kit (IntelliTouch/AccuTouch/SecureTouch Models see Part Numbers for details - Not for use with TouchPro PCAP Models)
• Rack mount with optional kit (IntelliTouch/AccuTouch/SecureTouch Models see Part Numbers for details - Not for use with TouchPro PCAP Models)
• Flush mount with included brackets (TouchPro PCAP Models see Part Numbers for details)
