Where can I find a dimensional drawing for the DC10, 4-Slot Device Charger?

This article provides the dimensional drawing of the DC10, 4-Slot Device Charger, P/N: E864653, for the M50 Mobile Handheld device.

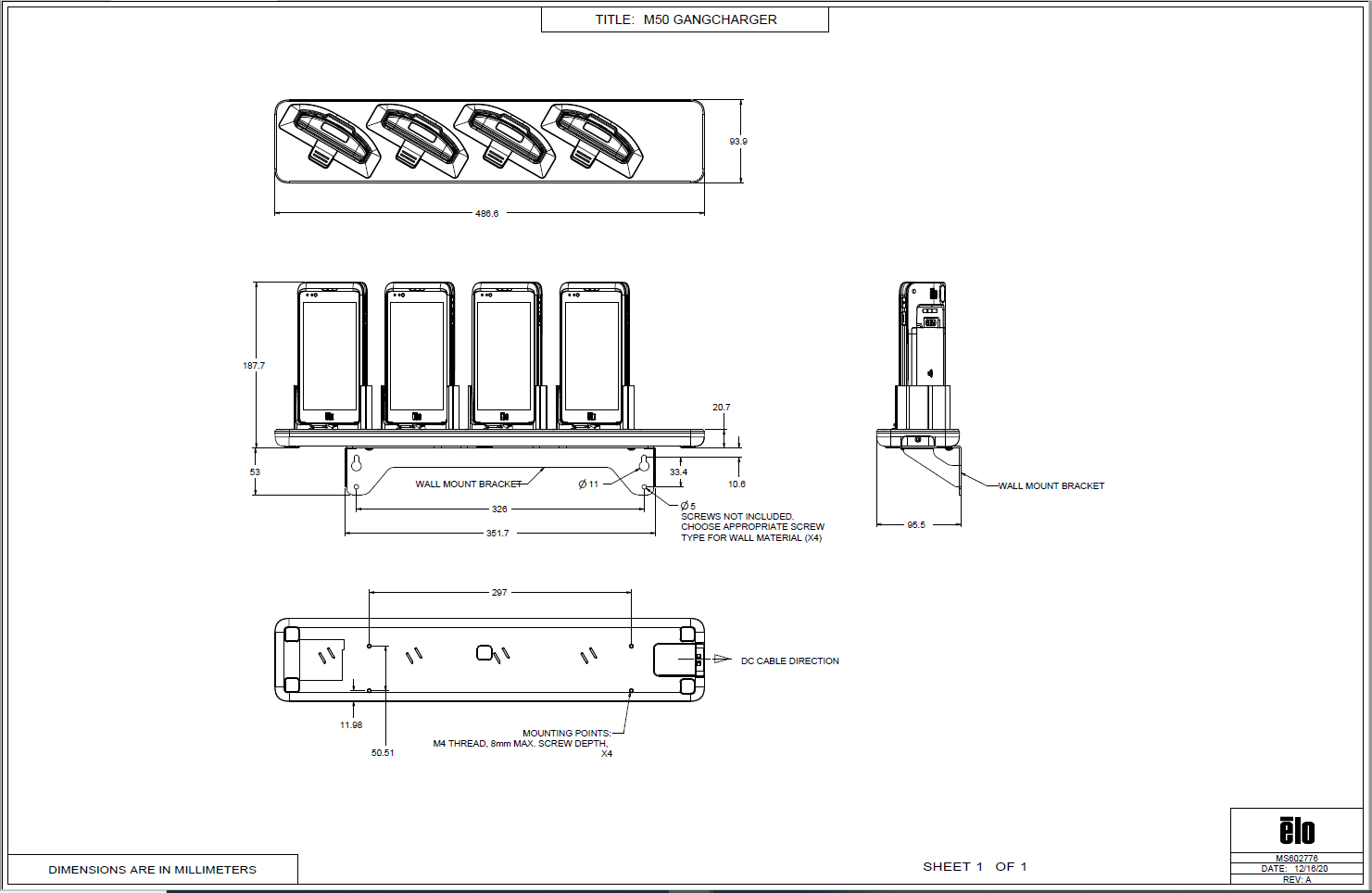

The below drawing can be downloaded HERE



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
