How do I assemble the M51 Handstrap?

This article describes how to assemble the Elo M51 Handstrap, P/N: E118460

Product spec page: https://www.elotouch.com/m51-hand-strap.html

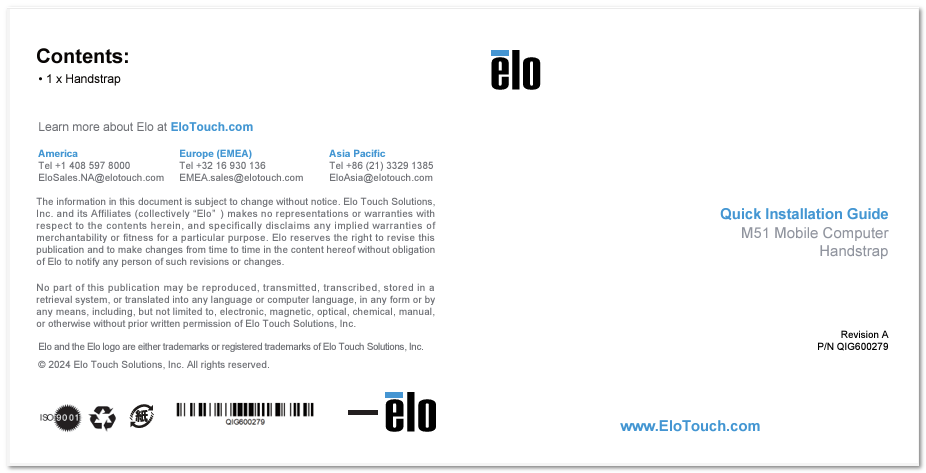

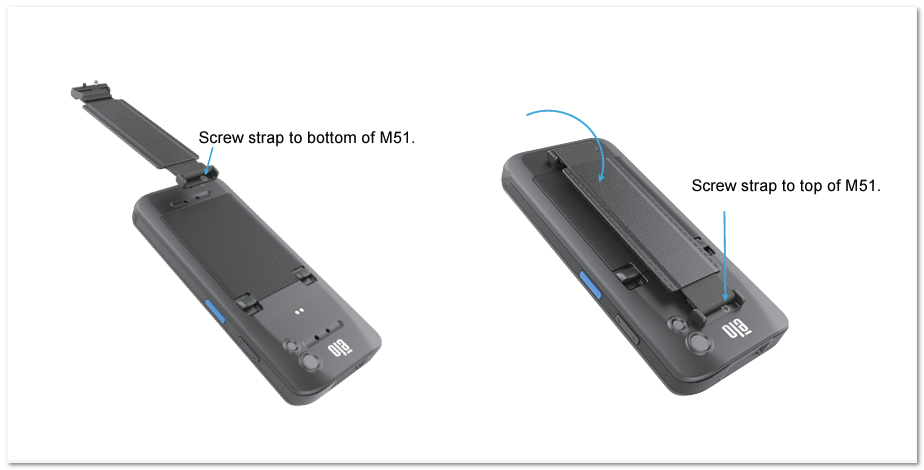

Quick Install Guide: https://docs.elotouch.com/QIG600279.pdf

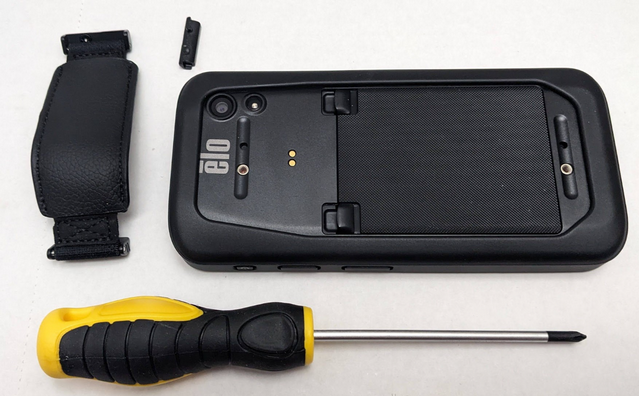

Hardware Required

E118460 M51 Handstrap
M51 Mobile Device
Philips Head Screwdriver

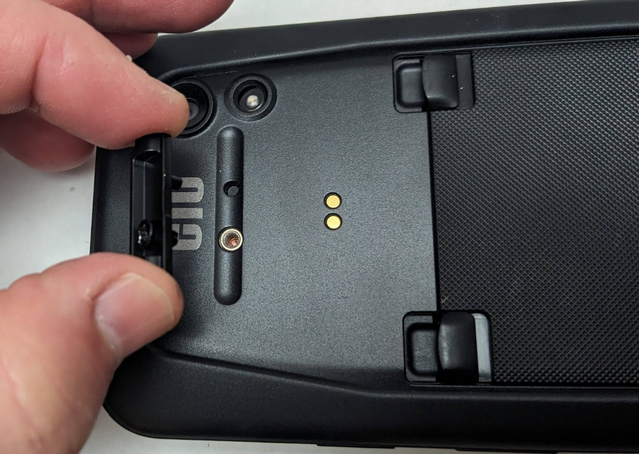

1. Place handstrap holder on top slot on back of M51

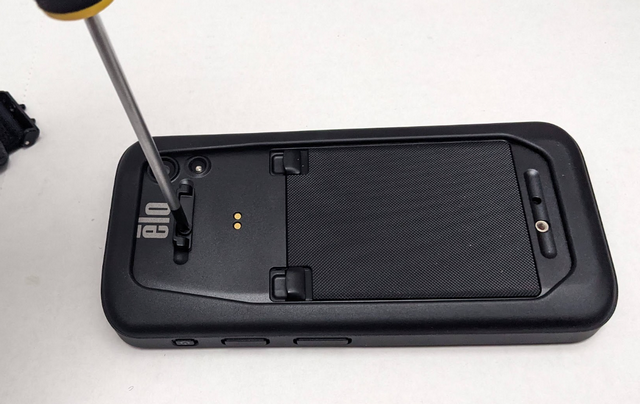

2. Use the Philips screwdriver to tighten handstrap holder to M51

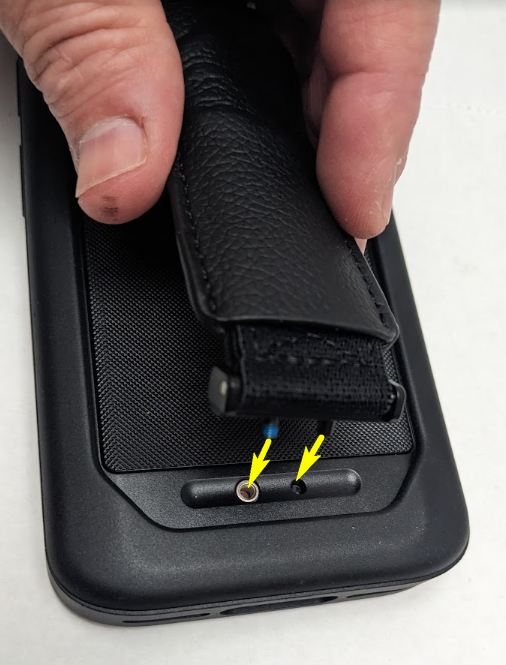

3. Orient the lower handstrap bracket to match up with the holes on the bottom backside of the M51.

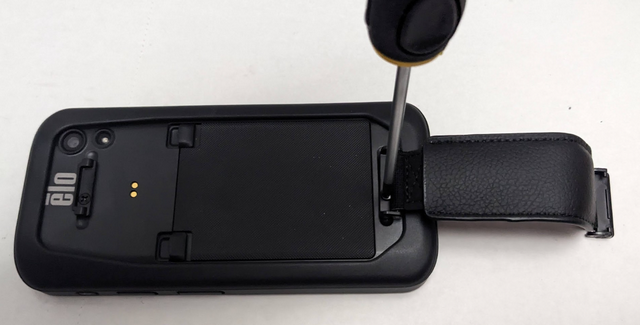

4. Use the Philips screwdriver to tighten bracket to lower holes on backside of the M51

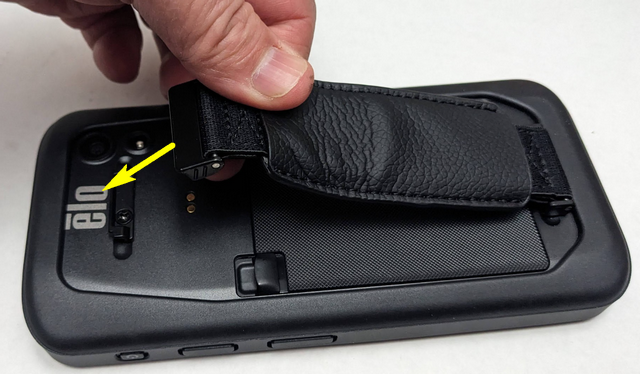

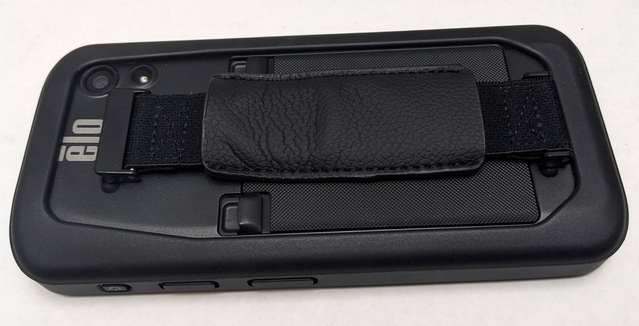

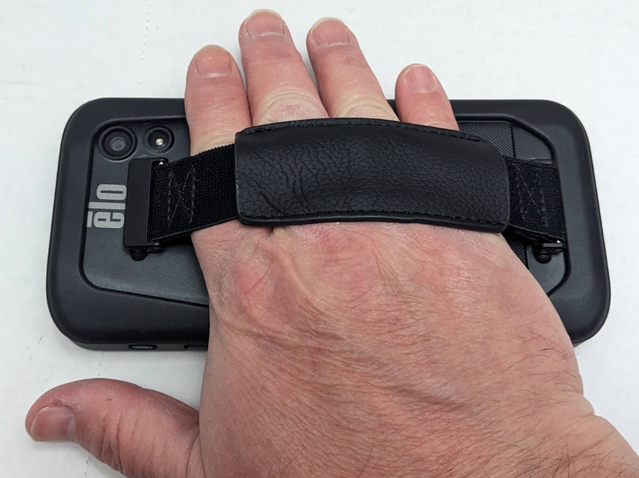

5. Pull handstrap over the top bracket
