This article explains EloView 3 Device Control Panel Password Restricted Access, and how to use it

Within EloView, you can set up two levels of access for the Elo Control Panel on Elo devices – Standard Access, and Restricted Access.  If a user types in an “Access Restricted Password” on the device Control Panel, the user will not have access to OS Upgrades, Apps tab and Advanced Android Settings.  The options on the Network tab can be disabled, to include adding a Network, uploading a Network CSV file and disabling a Network.  The Options on the Settings tab can also be disabled, to include updating the device and Enterprise reset. Utilizing the “Access Restricted Password” feature enhances security on the device, preventing unauthorized changes to specific areas of the device.

Enabling Access Restricted Password

1.    Login to the EloView website:
https://manage.eloview.com

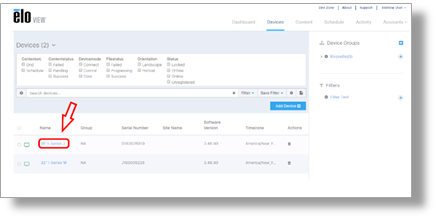

2.    In the “Devices” section, click the appropriate device to configure. Alternatively, click the Settings icon next to the appropriate group or filter.


3.    In the “Settings” area, you can view all available device settings:

•     Brightness
•     Volume
•     Control Panel Password
•     Access Restriction Password
•     Display Timer
•     Language
•     Power Button
•     Device Mode
•     Interactive Overlay
•     Android Home
•     NTP URL
•     Auto Play
•     Android Navigation Bar
•     Home Button
•     Physical Analytics
•     Content Pinning
•     Reboot
•     Enterprise Reset
•     Network
•     Network Configuration
•     EST
•     Delayed Content Deployment
•     WiFi
•     Virtual Keyboard
•     Touch Sound
•     DFS

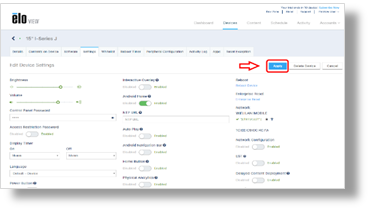

4.    In the “Settings” area, click the Edit button.

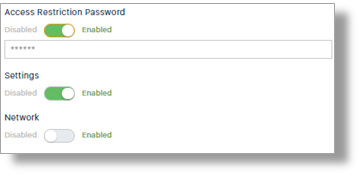

5.    Select Enabled for the “Access Restricted Password” and enter the password of your choice.


6.    Select Enabled for “Settings” to disable “Update Device” and “Enterprise Reset” on the Device Settings tab.

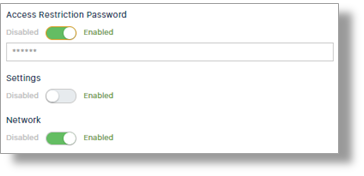

7.    Select Enabled for “Network” to disable adding or removing Networks on the device.


8.    Click the Apply button when done.


9.    To verify, access the Control Panel on the device and press the Home and Power buttons simultaneously. Enter the Access Restricted Password.

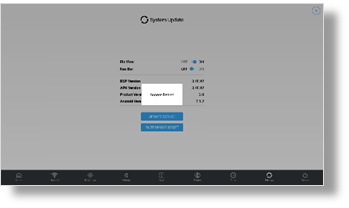

10.    When a user logs in with an Access Restricted Password, they will get an “Access Denied” message on areas that are restricted.
