This article explains the EloView 3 Custom Device List View and how do I use it
Highlights
• Device listing can now show data based upon the ones selected in customize column.
• User needs to select at least one option during customization.
• Serial number is no longer mandatory.
• Sort option is available for column headers.
• The CSV gets exported in the same order.
1. Login to the EloView website – https://manage.eloview.com

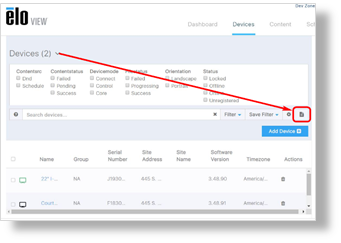

2. In the “Devices” section, click the device list icon.

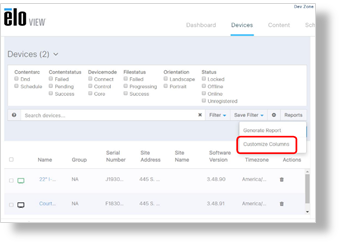

3. From the drop-down list, choose “Customize Columns.”

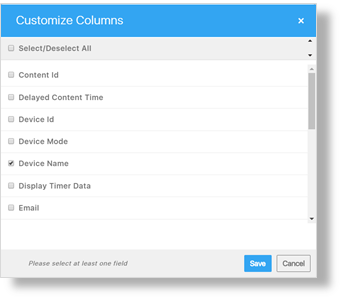

4. From the Customize Columns list, select categories you would like to see. (At least one field must be chosen)
Available Categories
- Content Id
- Delayed Content Time
- Device Id
- Device Mode
- Device Name
- Display Timer Data
- Group Name
- Home Button
- Language
- OTA
- Power Button
- Screenshot
- Serial Number
- Site Address
- Software Version
- Time Zone

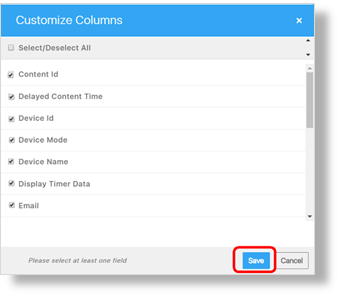

5. Once categories are chosen, click the “Save” button to save changes.

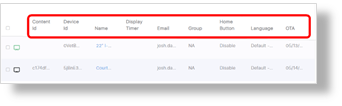

6. Selected categories will now be displayed in the Device list.

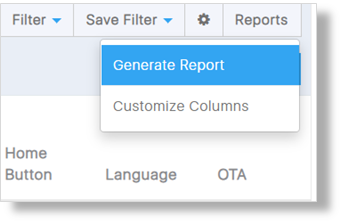

7. To export the data to a .CSV file, click on the device list icon and choose “Generate Report.”
What is a .CSV file?
A comma-separated values (CSV) file is a delimited text file that uses a comma to separate values. Each line of the file is a data record. Each record consists of one or more fields, separated by commas. The use of the comma as a field separator is the source of the name for this file format. A CSV file typically stores tabular data (numbers and text) in plain text, in which case each line will have the same number of fields.

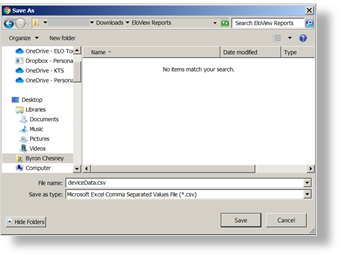

8. Select location to save .csv report.

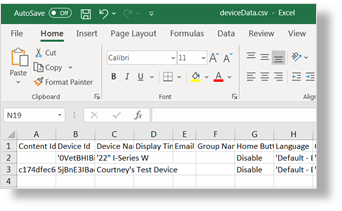

9. To view the .csv file, navigate to the saved location and open.
