Understanding the X, Y, and Z Coordinates of a Touchscreen

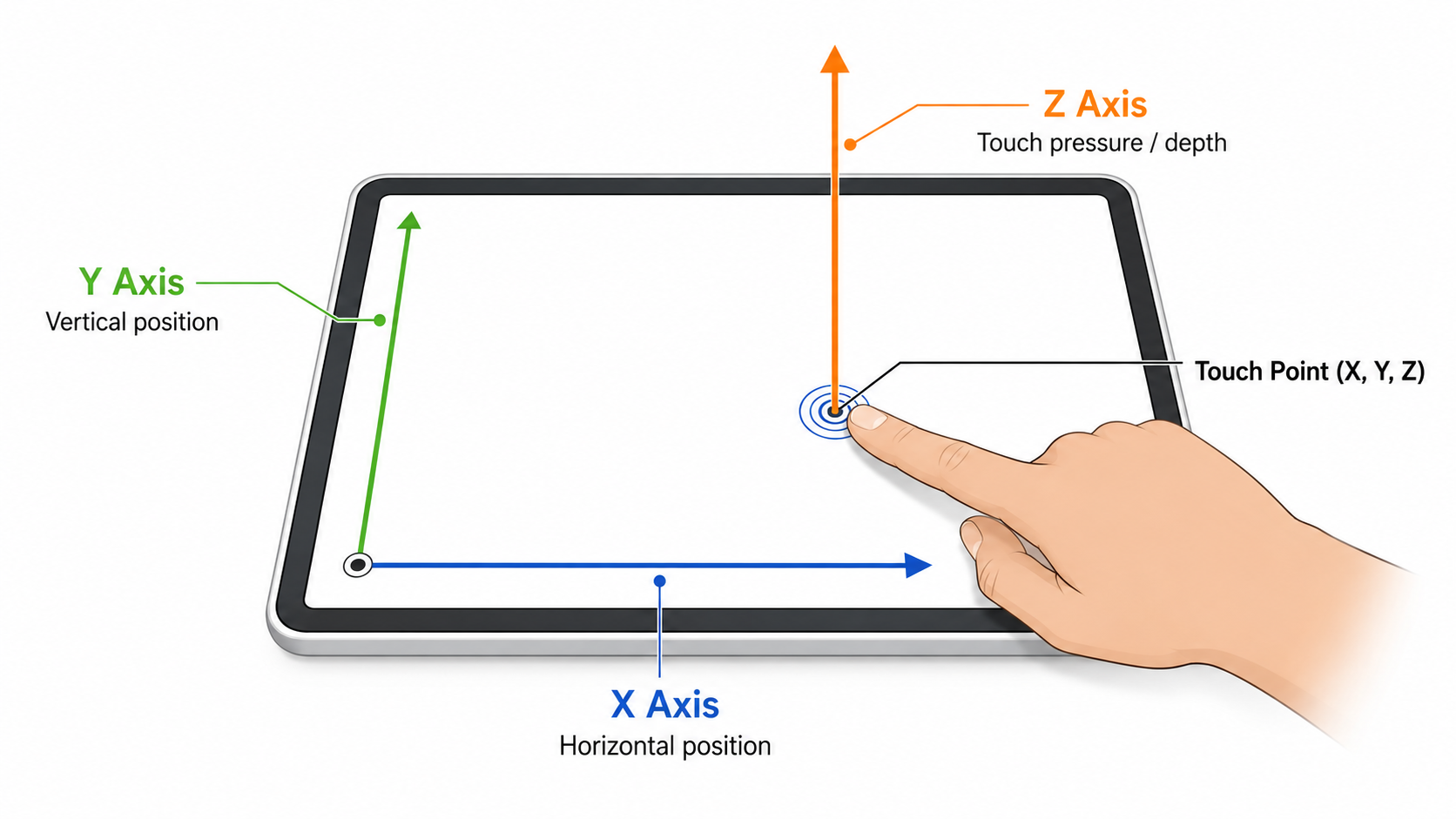

Touchscreens use a system of X, Y, and sometimes Z coordinates to track the location, movement, and intensity of a user's touch or stylus input on an Elo — Now part of Zebra Technologies device. Here is an explanation of each of these coordinates:
- X coordinate: The X coordinate represents the horizontal position of the touch on the screen. This coordinate is usually measured in pixels or inches and is based on the location of the touch relative to the left or right edge of the screen.
- Y coordinate: The Y coordinate represents the vertical position of the touch on the screen. This coordinate is also usually measured in pixels or inches and is based on the location of the touch relative to the top or bottom edge of the screen.
- Z coordinate: The Z coordinate, also known as the pressure or depth coordinate, represents the amount of pressure applied to the screen by the user's touch or stylus. This coordinate is often used to measure the level of force applied, which can be used for advanced interactions like drawing or handwriting recognition.
How it Works: Together, the X and Y coordinates define the exact two-dimensional location of the touch on the screen, while the Z coordinate provides additional information about the pressure or depth of the touch. These coordinates are typically reported by the touchscreen hardware to the device's operating system, which then uses this information to perform the desired actions, such as registering a button press or drawing a line on the screen.
Hardware Note: It is worth noting that different touchscreen technologies may use slightly different methods for tracking and reporting touch coordinates. For example, some touchscreen technologies use a matrix of sensors to detect the location of the touch, while others use capacitive or resistive materials that can detect changes in electrical charge or physical pressure.
