Recommended Adhesive for Mounting Elo TouchPro® Touchscreen Display Modules (3M™ VHB™ 4920)
Audience: Public / Elo Customers, Kiosk Designers, OEM Integrators & Mechanical Engineers
Article Type: Mechanical Assembly & OEM Integration Guide
When integrating and flush-mounting an Elo TouchPro® Touchscreen Display Module (TDM) into custom enclosures, medical housings, or kiosk bezels, Elo engineering recommends using 3M™ VHB™ 4920 Double-Sided Foam Tape for structural bonding and environmental perimeter sealing.
Recommended Structural Adhesive
3M™ VHB™ 4920 is a high-strength, closed-cell acrylic foam tape designed for bonding rigid metals, plastics, and glass substrates while absorbing mechanical vibration and thermal expansion differentials:
Elo Touchscreen Display Modules Overview

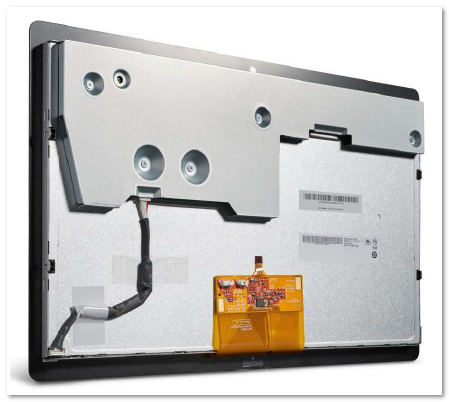

Elo Touchscreen Display Modules combine an optically bonded TouchPro® PCAP sensor, cover glass, and industrial TFT LCD into a single integrated assembly ready for OEM mechanical mounting:
- Explore available screen sizes and engineering integration guides on the official Elo Touchscreen Display Modules Webpage.
💡 Mounting Best Practices:
- Surface Preparation: Thoroughly clean all bezel contact surfaces using a 50/50 Isopropyl Alcohol (IPA) and water solution prior to tape application.
- Uniform Pressure: Apply firm, uniform pressure (minimum 15 psi) along the perimeter bond line to ensure 100% surface wet-out and optimal adhesion.
- Cure Time: Allow approximately 72 hours for full bond strength development before subjecting the assembly to extreme shock or environmental testing.
