This article provides the Quick Install Guide (QIG) for the Elo 4K Conference Camera Kit, P/N: E988153.

A .pdf copy is attached to this knowledge article.

Installation: Elo recommends mounting the camera to the top of the display. Mounting the camera to the side or the bottom will require image rotation via software. Some software programs may not provide a rotation feature.

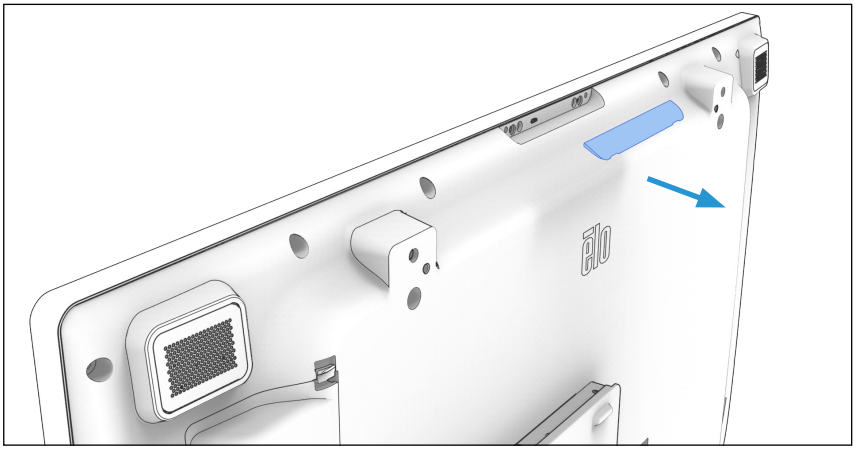

Step 1 - Remove the Elo Edge Connect TM cover from the top of the IDS display by gently pulling with your fingers.

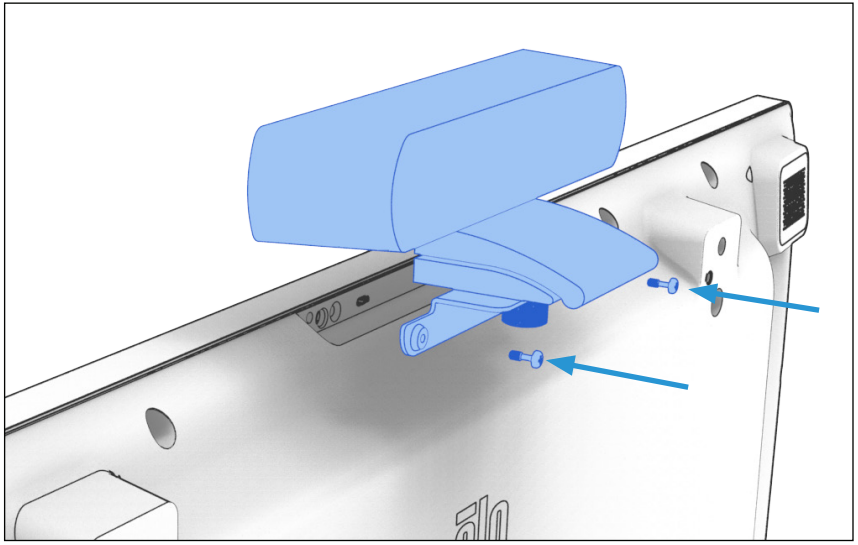

Step 2 -Attach the camera to the display using the two screws (included) and a Phillips head screwdriver (not included).

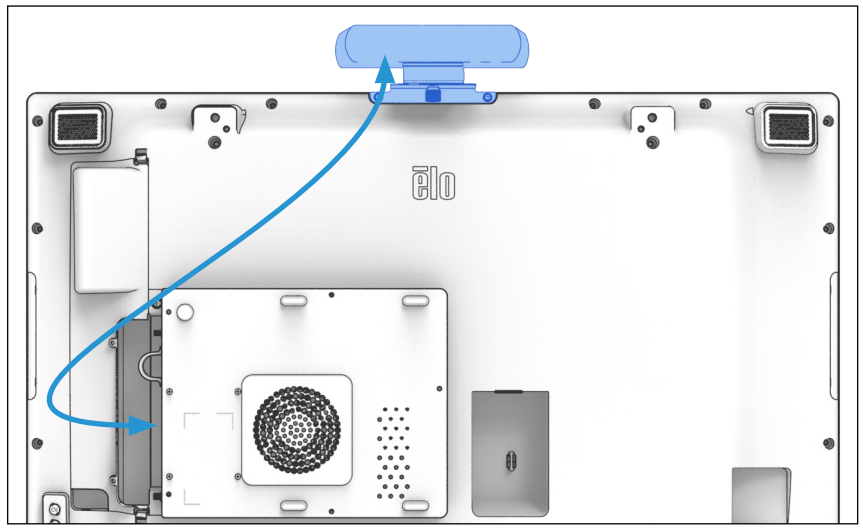

Step 3 - Connect the camera to the Elo compute device (sold separately), or to a third-party compute device using the USB type C to type A cable (included). To achieve greater compatibility and 4K resolution, Elo recommends connecting the camera to a USB3.0 port.



Step 4 - Launch your camera app or conference software and select “Elo Conference Camera” in the camera drop down menu or settings area.




Box Contents

• 1x Elo Conference Camera with mounting bracket pre-attached.

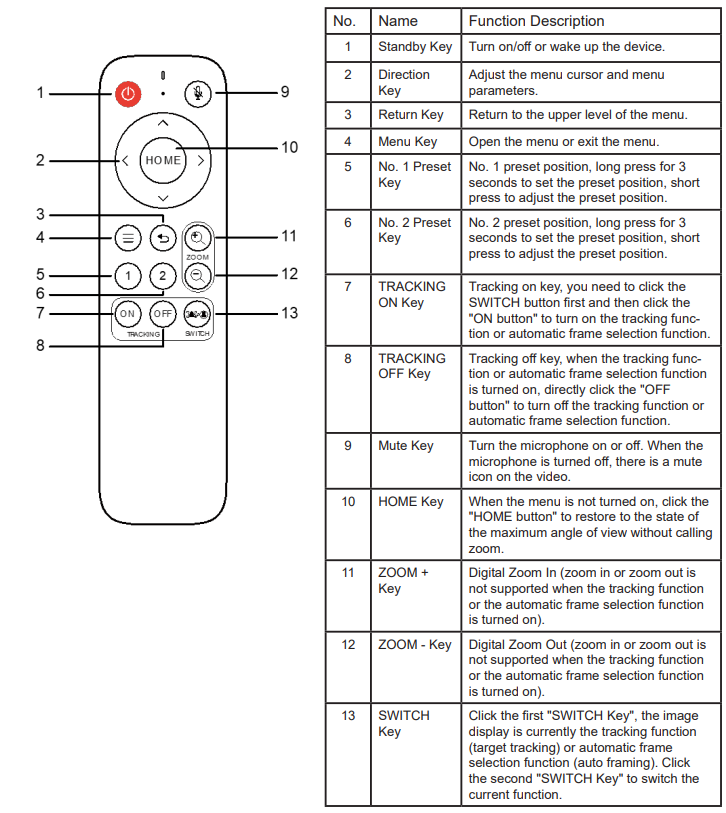

• 1x Remote control
• 2x M3 mounting screws
• 1x USB Type C to Type A cable

Troubleshooting
If the camera produces an image that appears to jitter, check if the camera has been installed securely and if there are any other objects in the area that may be causing vibration.

• If the on screen display menu is flipped try one of these options:
