This article explains how to import a Network Configuration in EloView 4

Below describes how to import a Network Configuration to EloView

1. In the “Devices” area, select the appropriate device

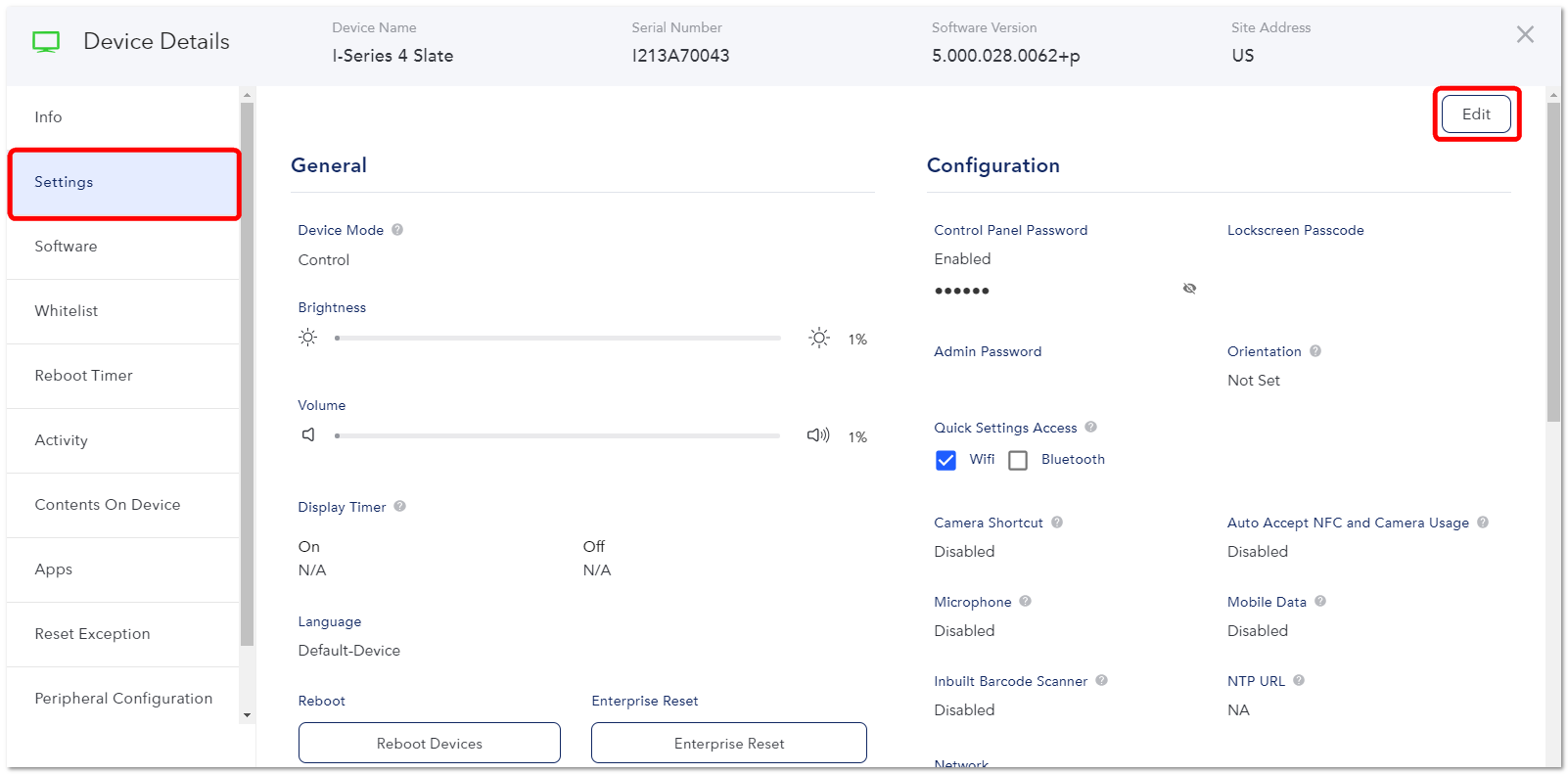

2. In the “Settings” area, click the Edit button

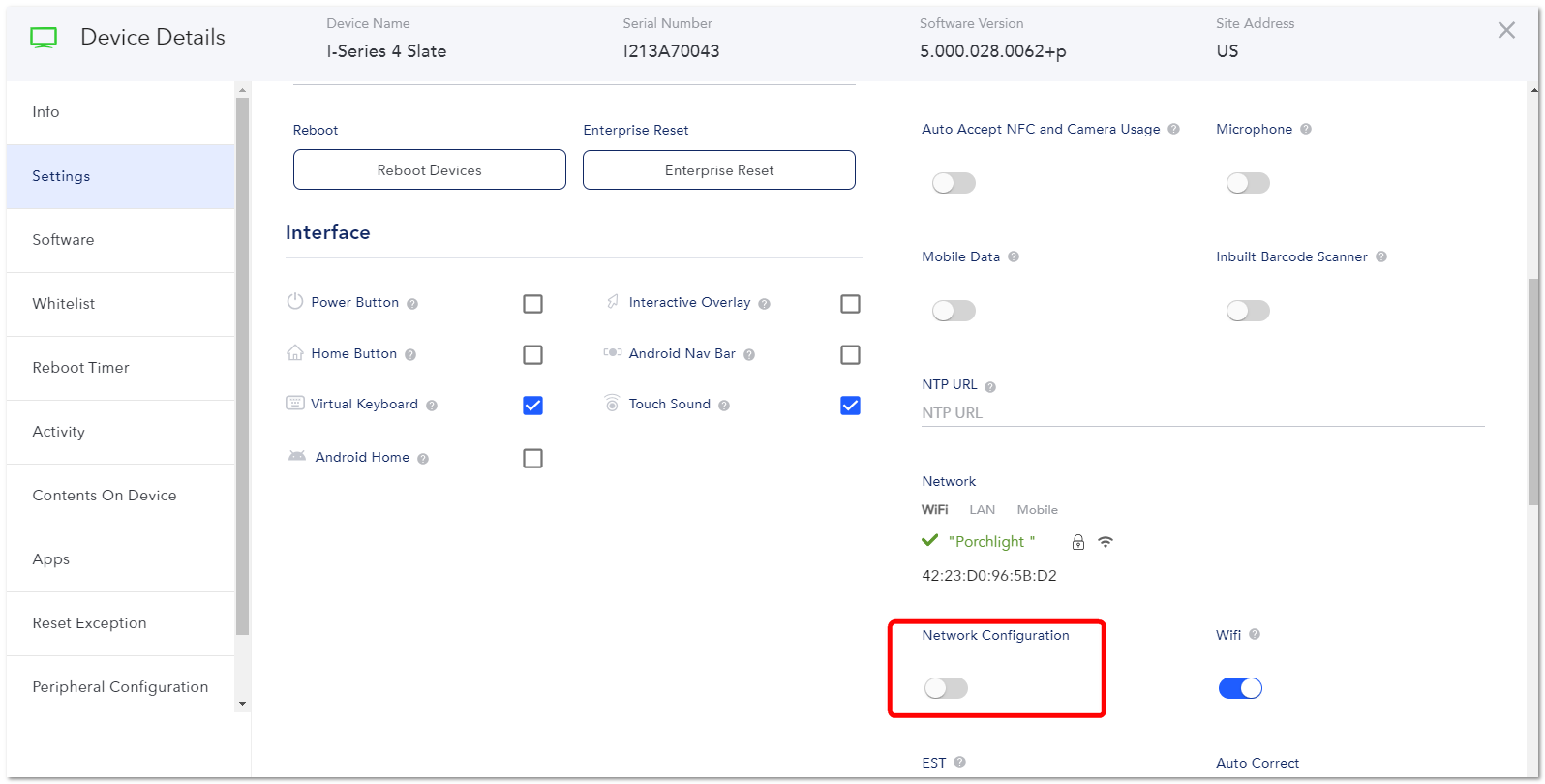

3. Enable the “Network Configuration” setting

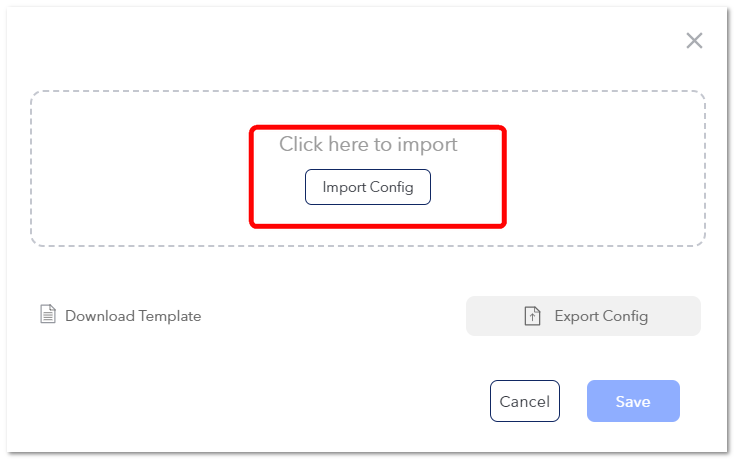

4. Click on the Import Config button

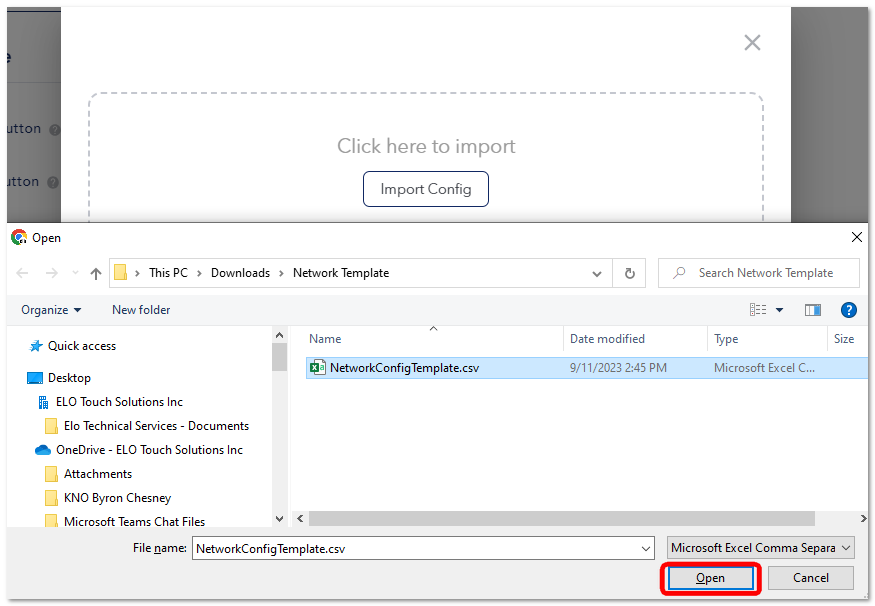

5. Navigate to the folder your Network Configruation CVS file is stored and choose it. Select Open to proceed.



6. You should see a message stating "Upload Successfully". Click on the Save button to save.

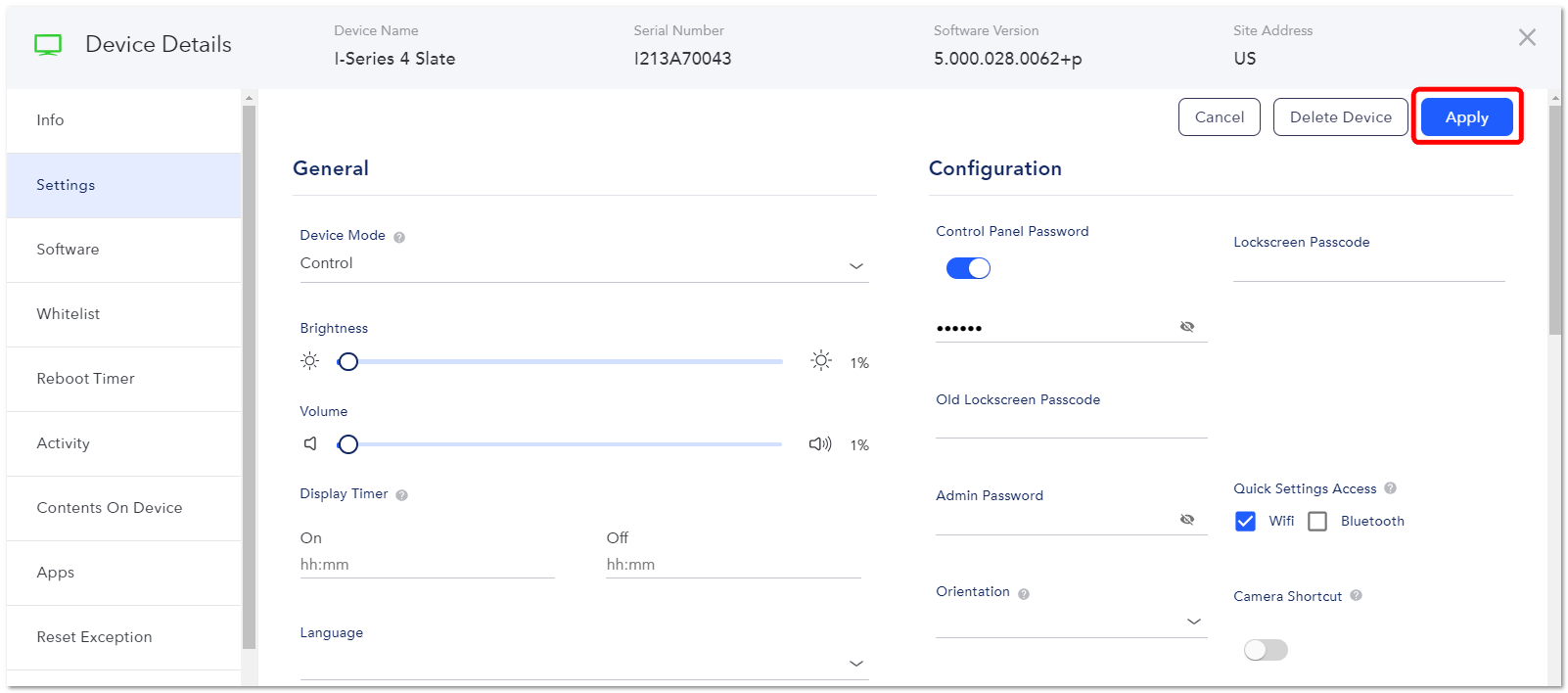

7. Click on the Apply button in the upper right corner



8. You should see a "Changes applied successfully" message at the bottom of the screen



9. The Network Configuration is now applied to the device
