This article explains how to setup a website to display on Elo Android devices through EloView 4 (EV4)

See steps below for how to run a single website url through EloView.

Adding a Website/Web Application

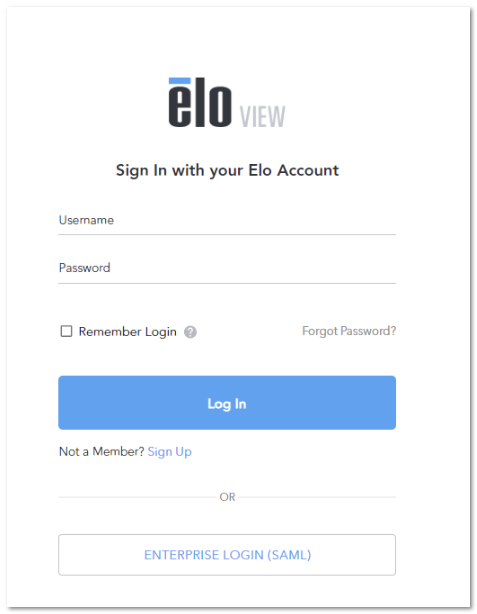

1. Login to the EloView website – https://secure.eloview.com/

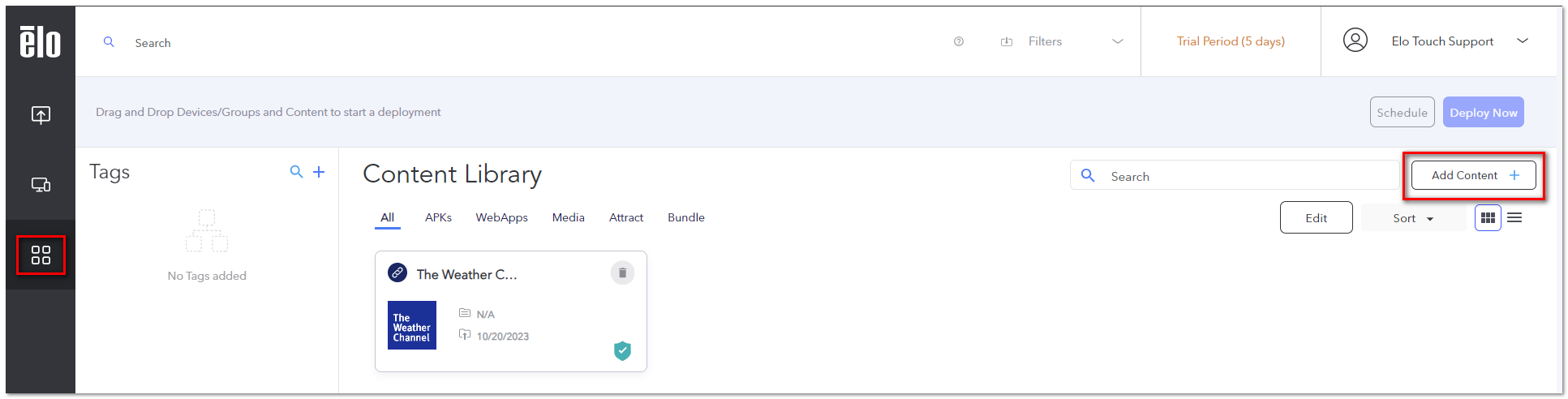

2. From the Eloview homepage, please click the Contents tab on the left-hand side, then click Add Content (+) in the Content Library

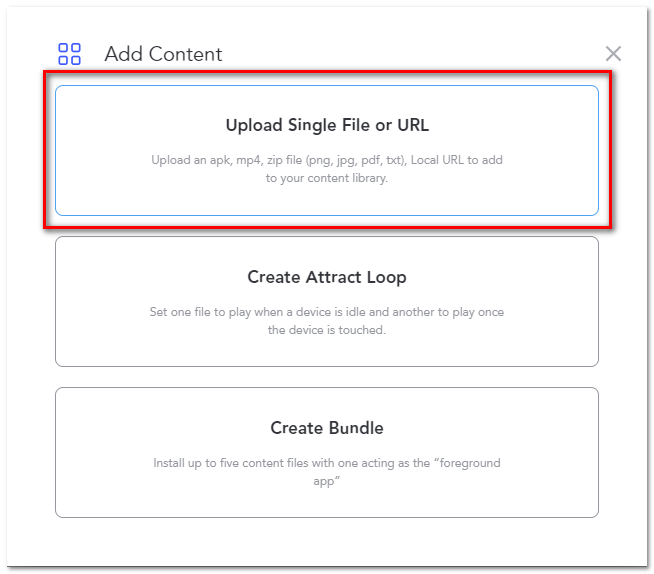

3. Click the option Upload Single File or URL

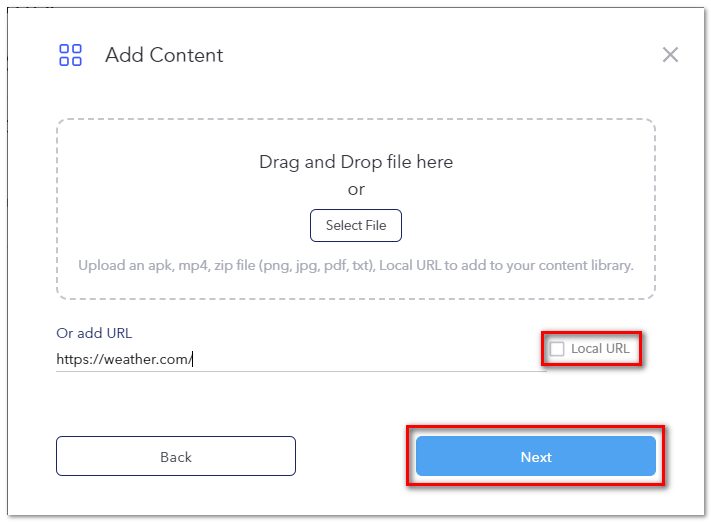

4. Click the check box to choose the appropriate web app type and click Next:
Web (online website)
Local (local HTML file)



5. For a website, specify the following:

• The website name
• The website address (URL)
• Browse to the website icon file
• A short description of the website

6. For a local web application, specify the following information:

• The web app name
• The web app upload folder (this is a single zip file of all web application files, folders, and subfolders)
• The web app home page (located within the zip file)
• Browse to the website icon file
• A short description of the website

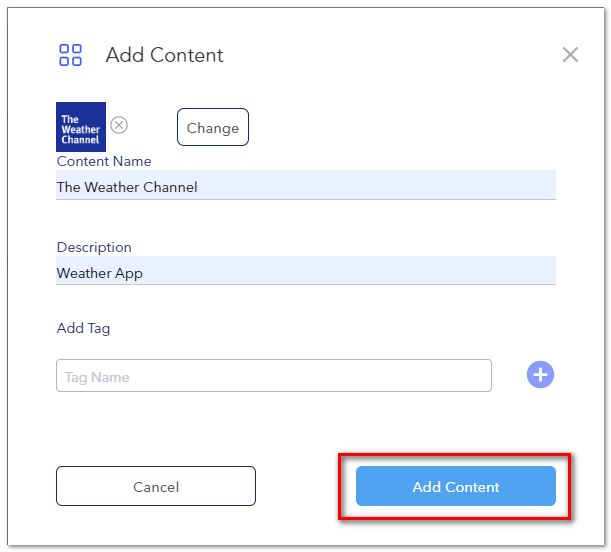

7. Click the Add Content button when ready

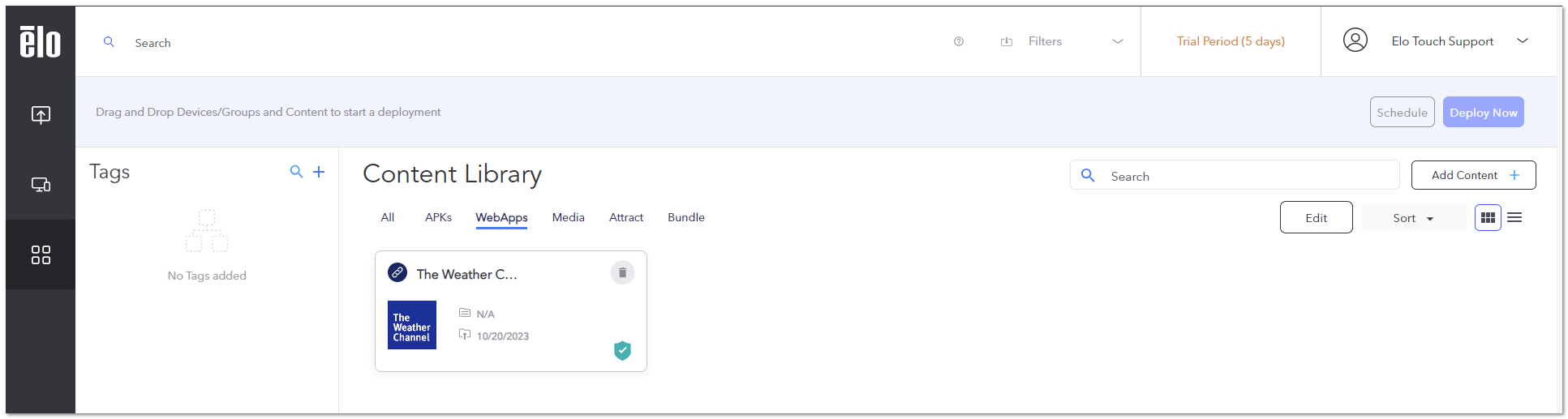

8. If successful, the new website will be displayed in the Content Library under WebApps.

9. To edit or delete the website, double-click the icon in the Content Library.

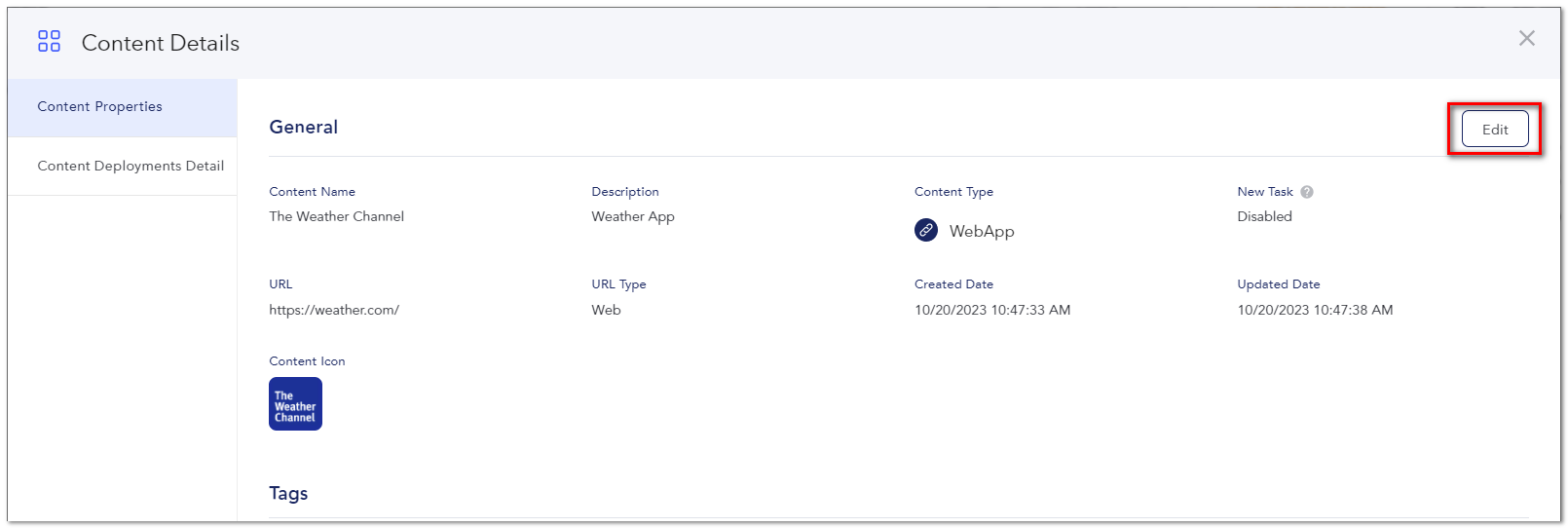

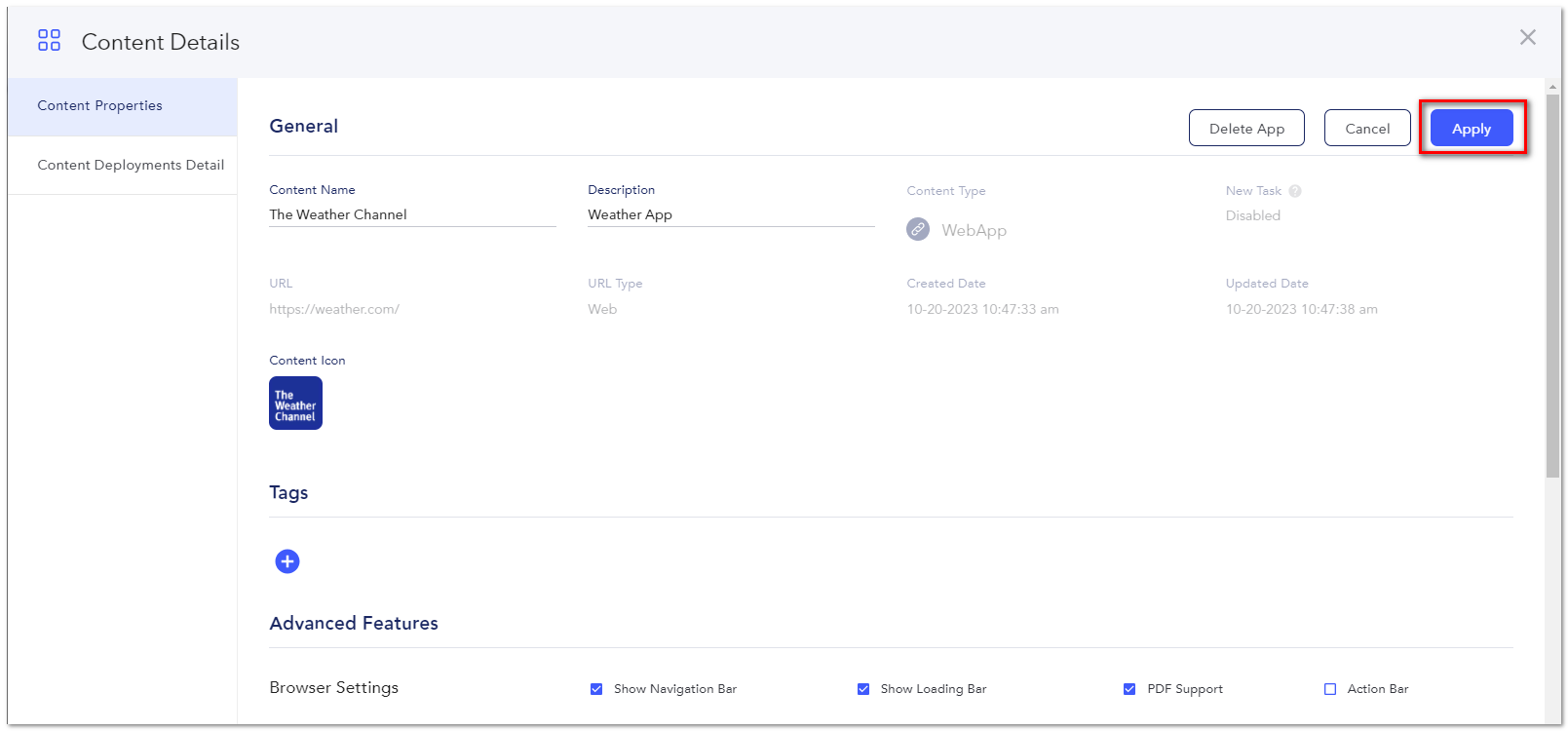

10. Click the Edit button

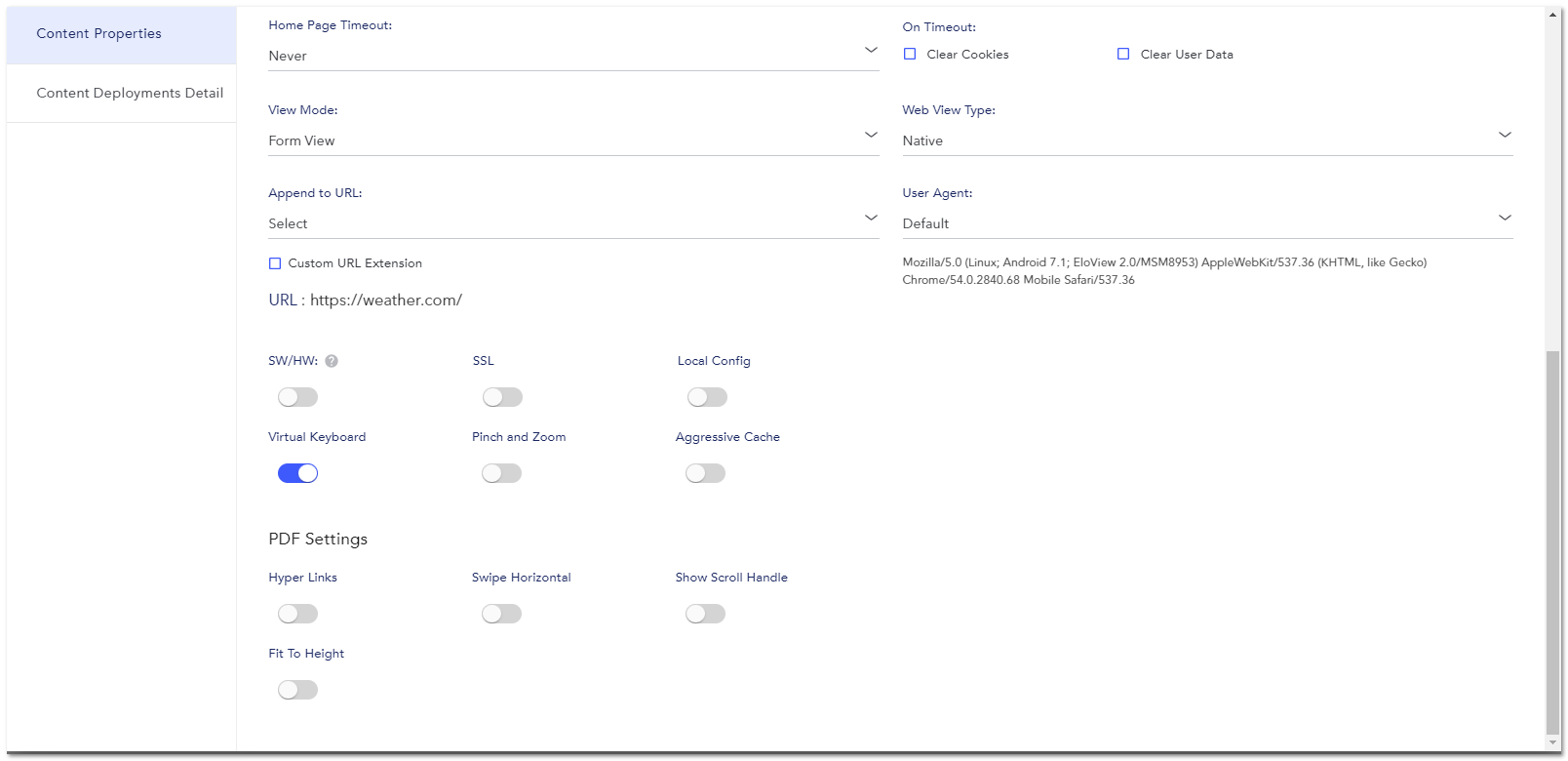

11. Make all necessary changes to the website in order to enhance performance, customize the user interface and clear browser data:

• Website name and/or description
• Show/hide the navigation bar
• Show/hide the loading bar
• Support/Not Support PDF documents
• Establish a timeout period (inactive time) after which the system will return to the home page
• Designate a View Mode – Full View or Form View. Select “Form View” for automatically scrolling within the website.
• Web View Type – choose the browser rendering engine to use. Select “Native” to use the default Android Chrome-based WebView (WebKit). Select “Xwalk” to use the Crosswalk WebView. Crosswalk is effectively a modified version of Chromium, the open source basis of the Google Chrome browser, and provides better performance, more video codec support and HTML5 features like WebGL, WebRTC, IndexedDB, Web Sockets, CSS3. Moreover, it has been optimized for running continuous display devices.
• User Agent – choose which browser (version and operating system) to use. Default user agent is Mozilla/5.0 (Linux; Android 7.1; EloView 2.0/MSM8953) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/54.0.2840.68 Mobile Safari/537.36.
• Append information (site name, device name, or serial number) to the website address. This is considered a Smart URL and allows you to track individual device use and potentially customize the website experience for each device. For example, smart URLs can be used to display a store’s inventory.
• Enable/disable the hardware layer to speed up buffering of online videos
• Enable/disable the virtual keyboard
• Enable/disable SSL
• When done, click the Apply button
