What are details for P/N: E458605, EMV Cradle Kit for Ingenico Lane 3000 on Wallaby Self-Service Stand with I-Series?

This article provides details for E458605 Rev. A, EMV Cradle Kit for Ingenico Lane 3000 on Wallaby Self-Service Stand with I-Series

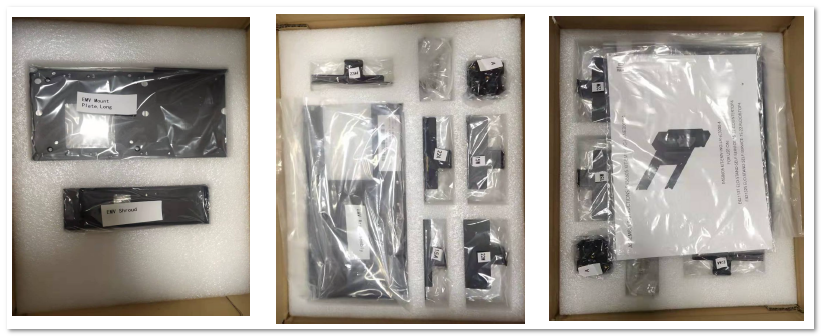

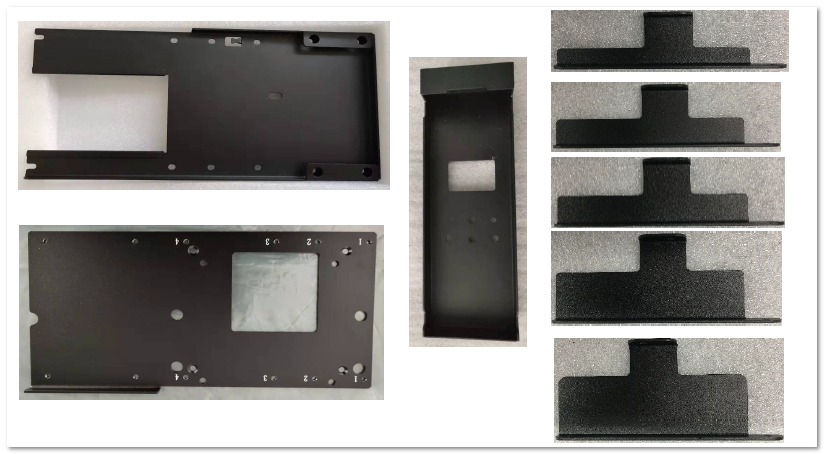

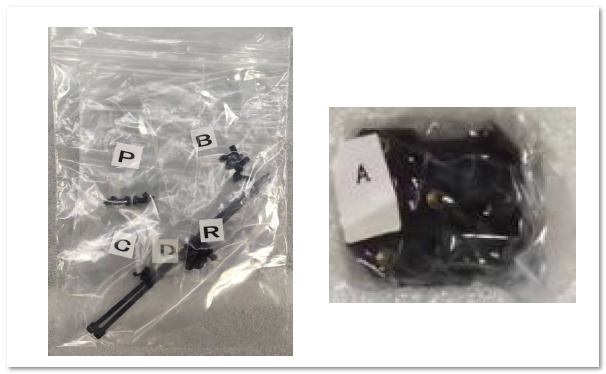

Photos:

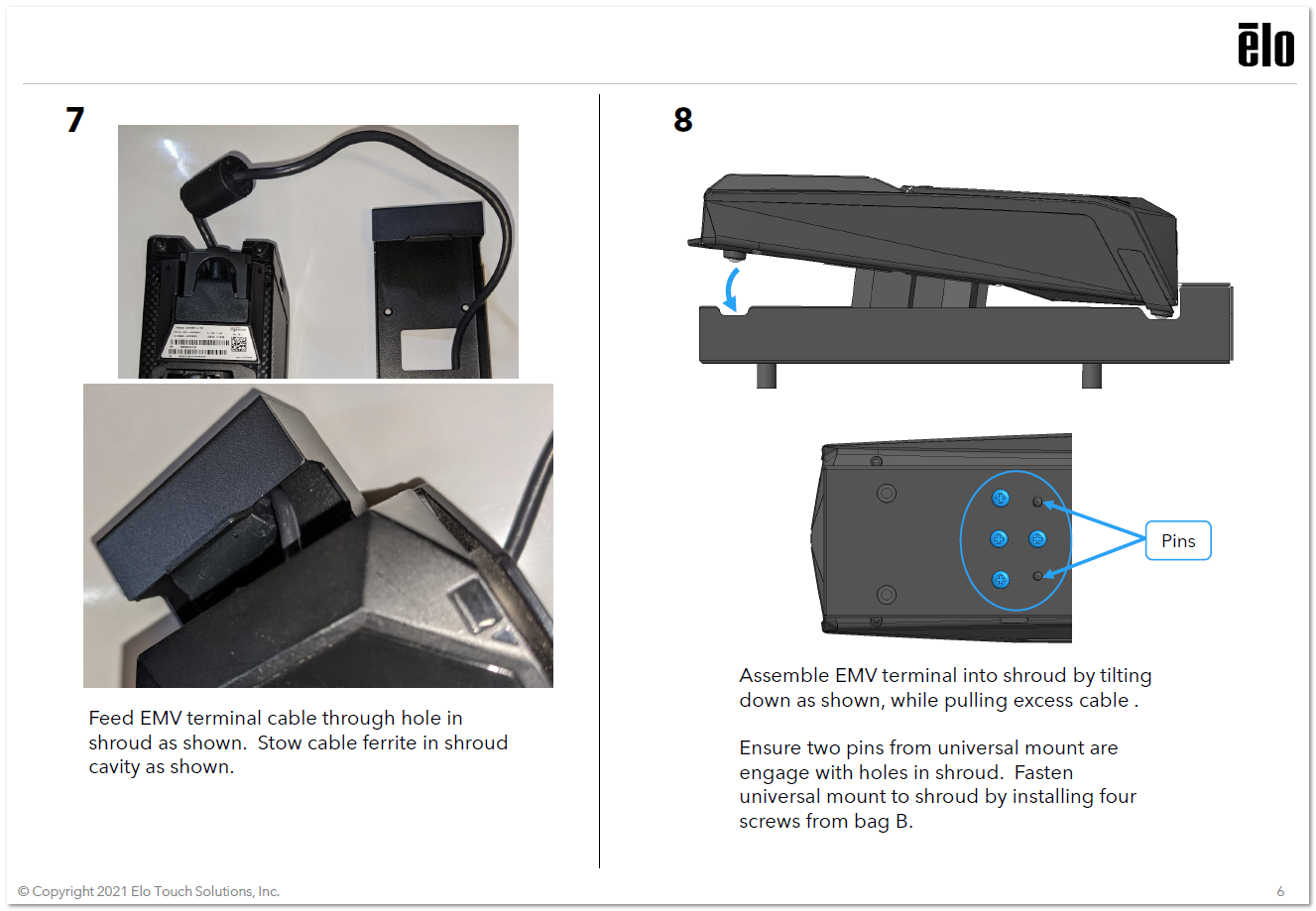

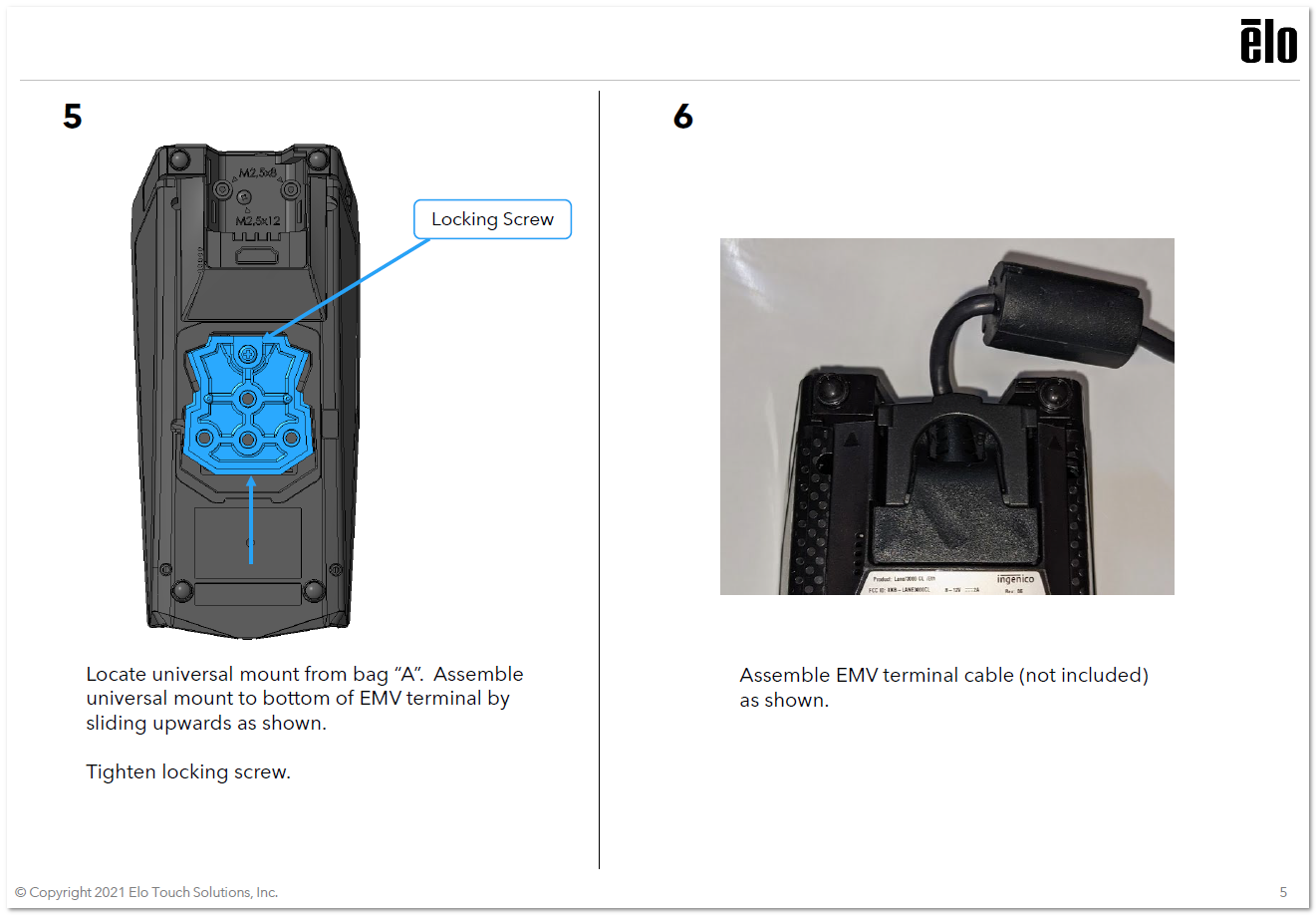

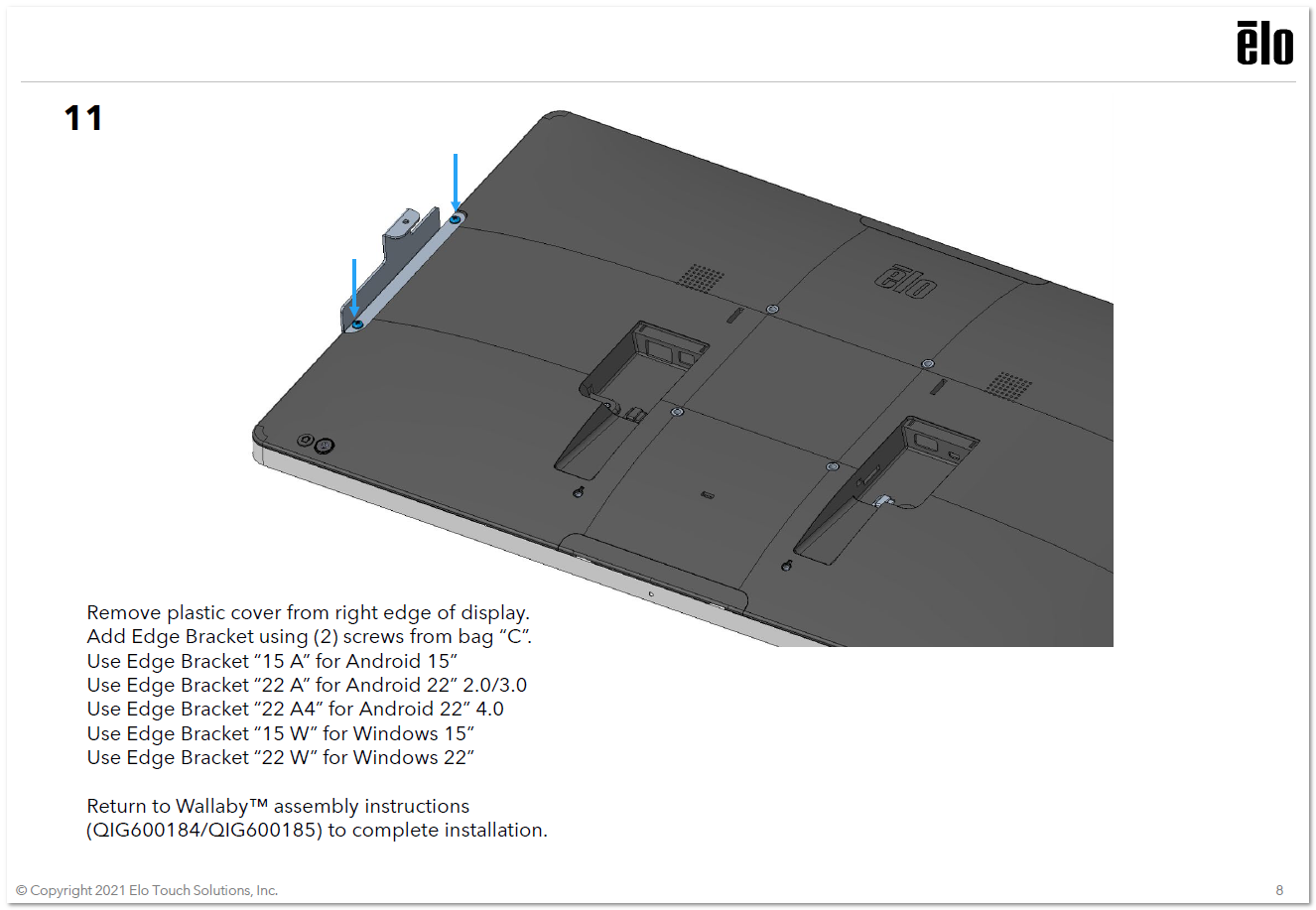

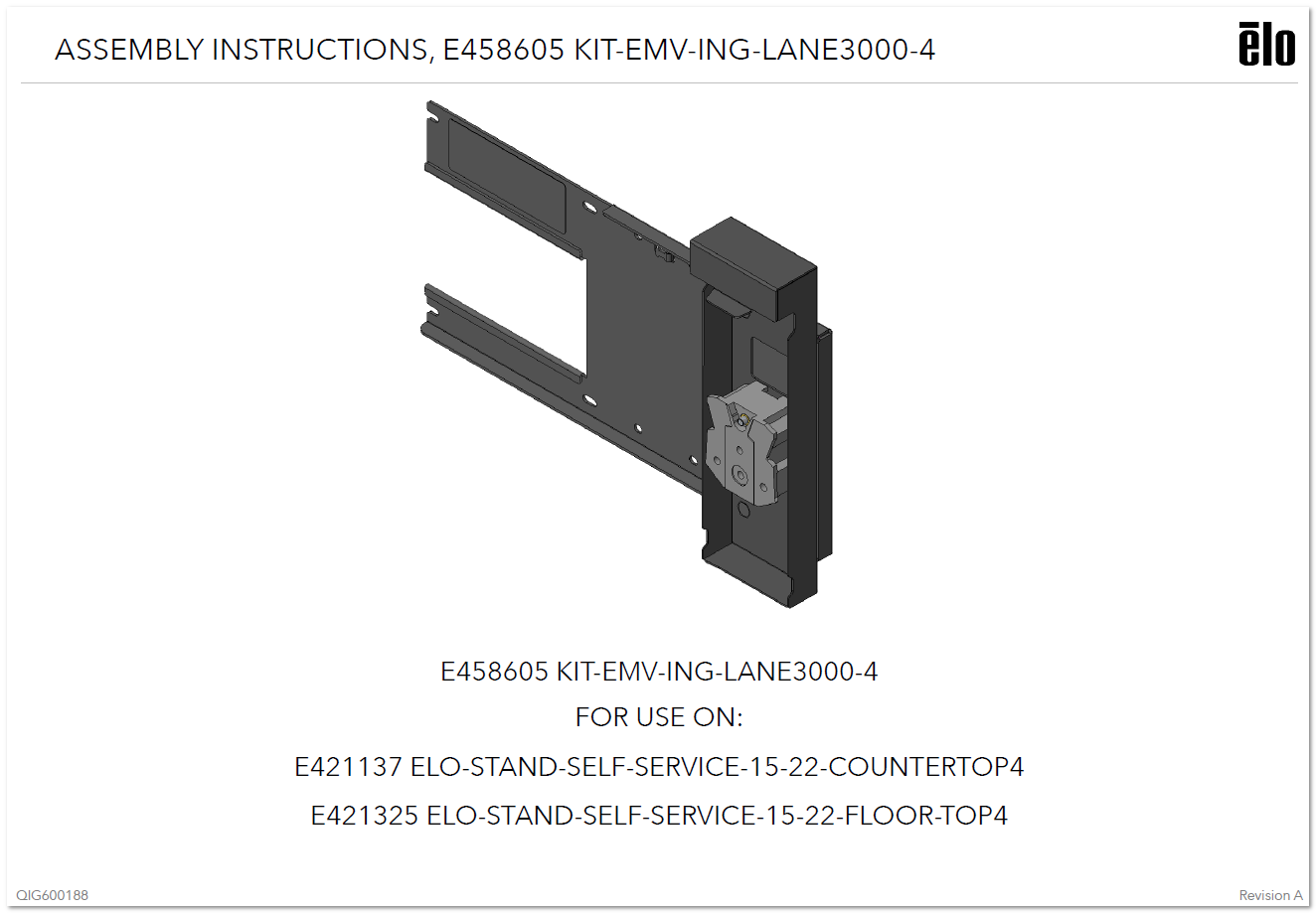

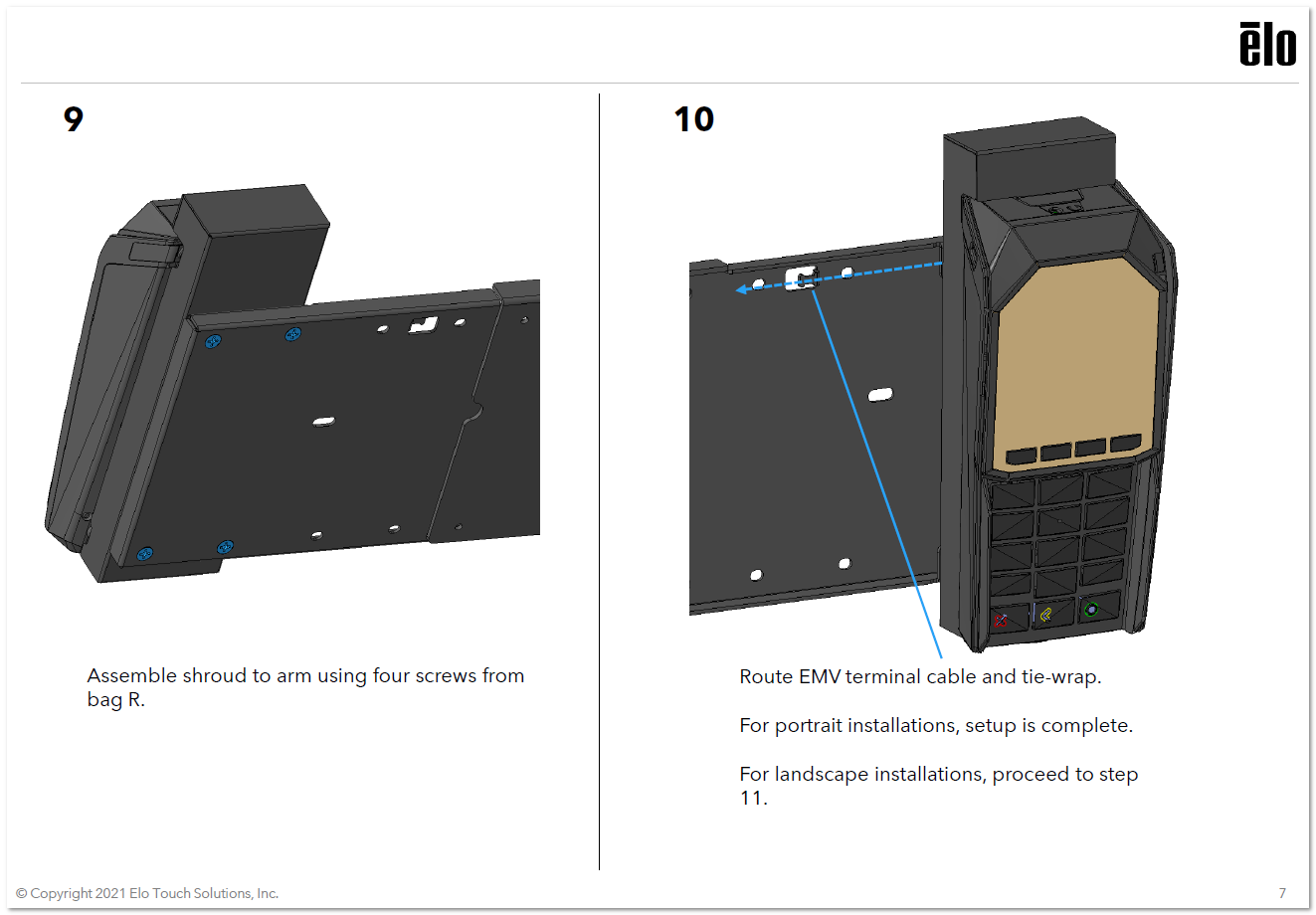

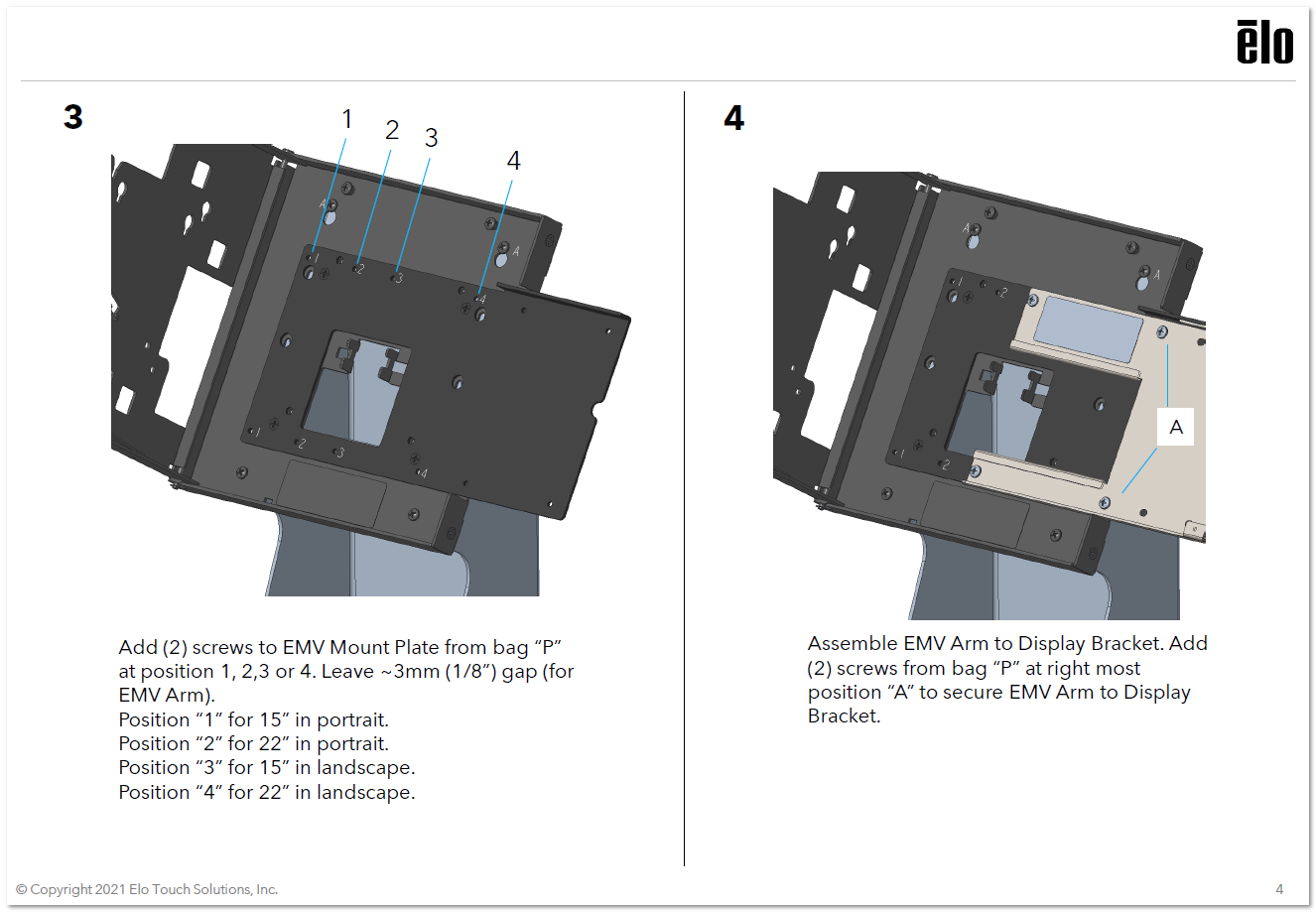

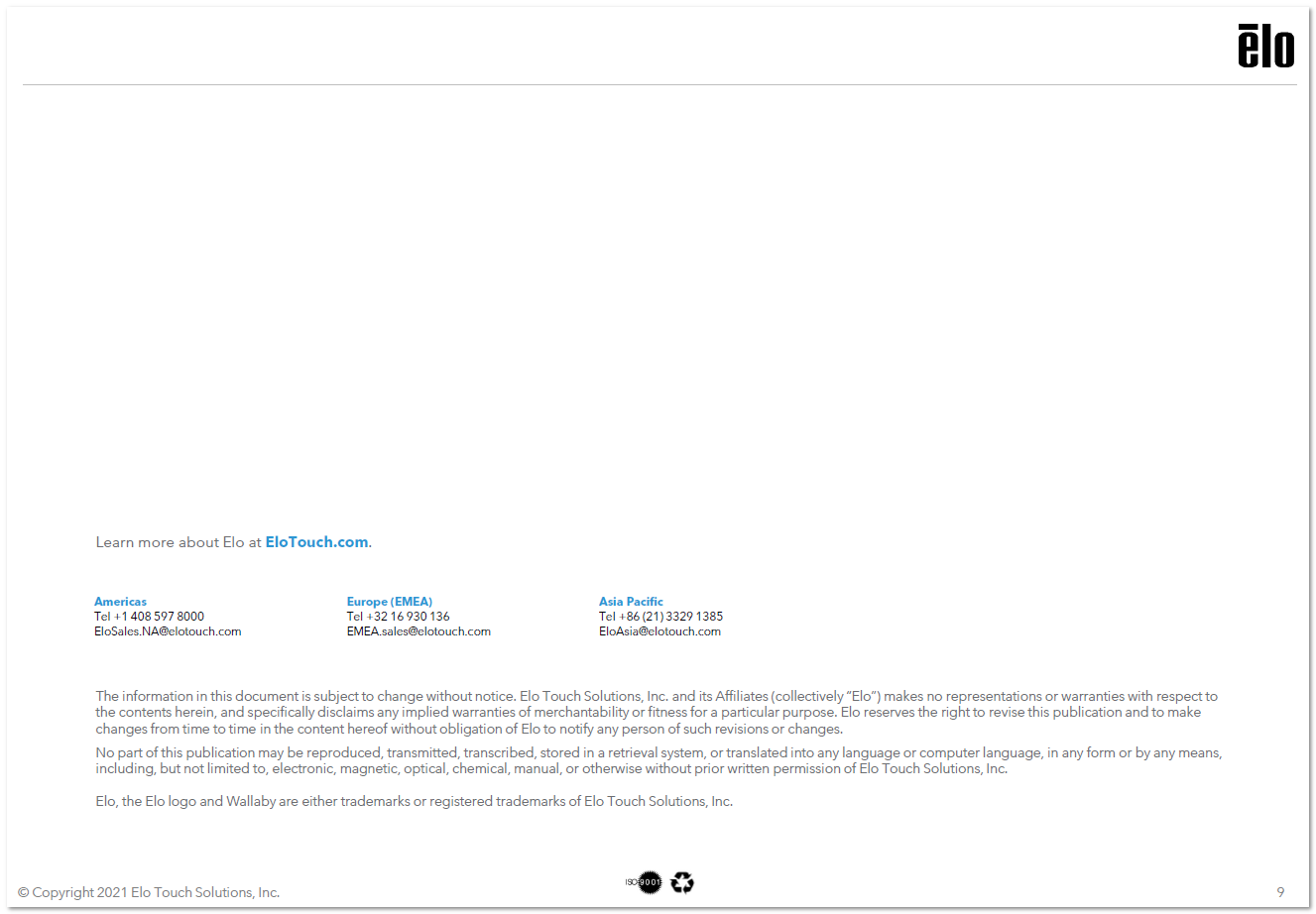

Quick Install Guide (QIG) (also attached to this article)

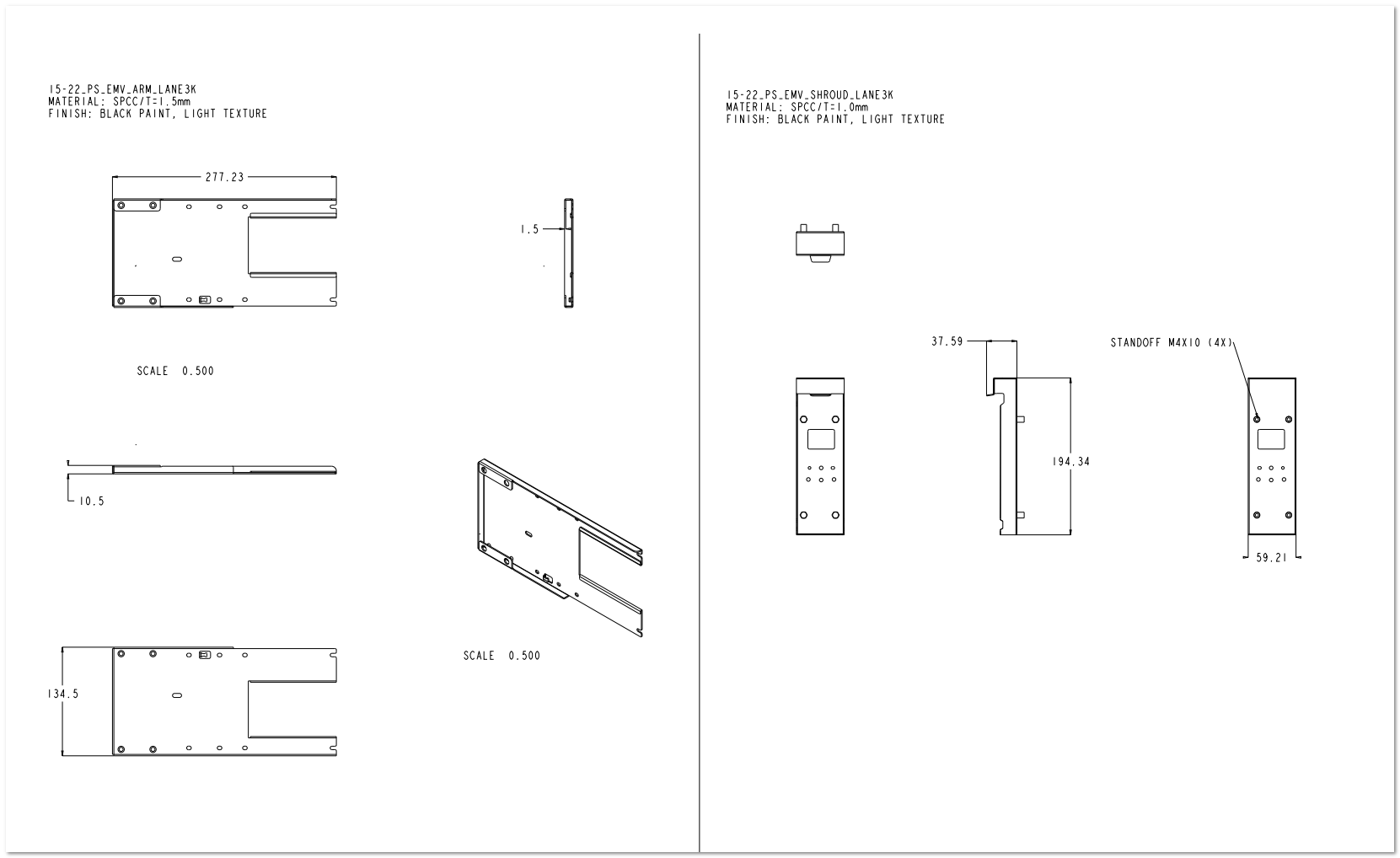

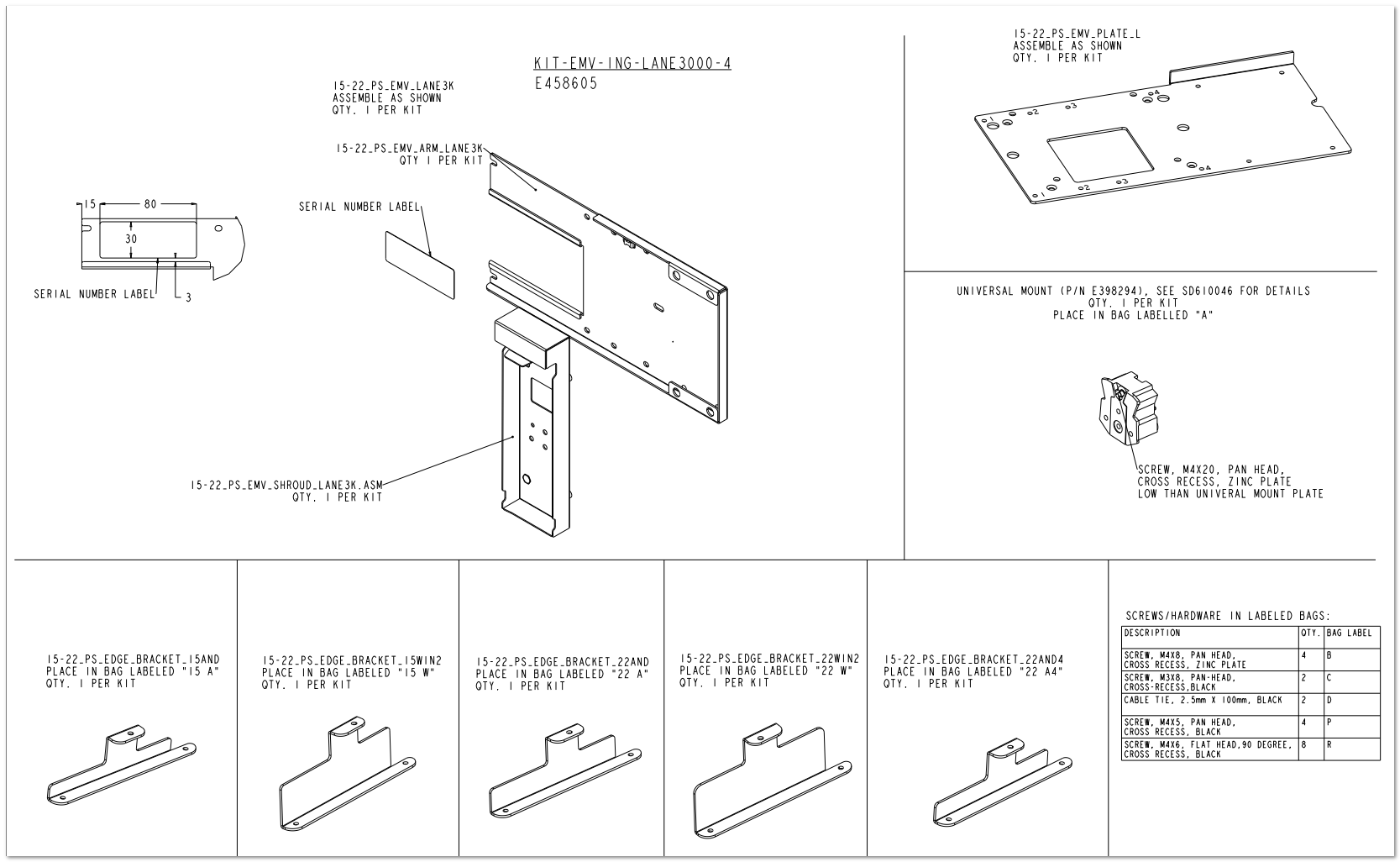

Drawings


Please report any broken links by emailing elo.support@zebra.com and include a link to the knowledge article
