This article provides information about Elo P/N: E906829, EMV cradle kit for Wallaby self-service stand, compatible with Verifone P400

Below information is for Elo P/N: E906829, EMV cradle kit for Wallaby self-service stand, compatible with Verifone P400.

Collateral

• Part Description - EMV-SELF-SERV-VF-P400
• Compatibility - I-Series AiO Interactive Displays (15" & 22") on Wallaby Stands
• Interface - USB for power, WiFi or Bluetooth for data*
• Weight (Unpackaged) - 5.51 lbs / 2.50 kg
• Dimensions - Please review the Wallaby Self-Service Stand dimensional drawing for more information: https://docs.elotouch.com/MS602460.pdf
• Shipping Box Dimensions - 19.68" x 11.61" x 4.72" / 500 mm x 295 mm x 120 mm

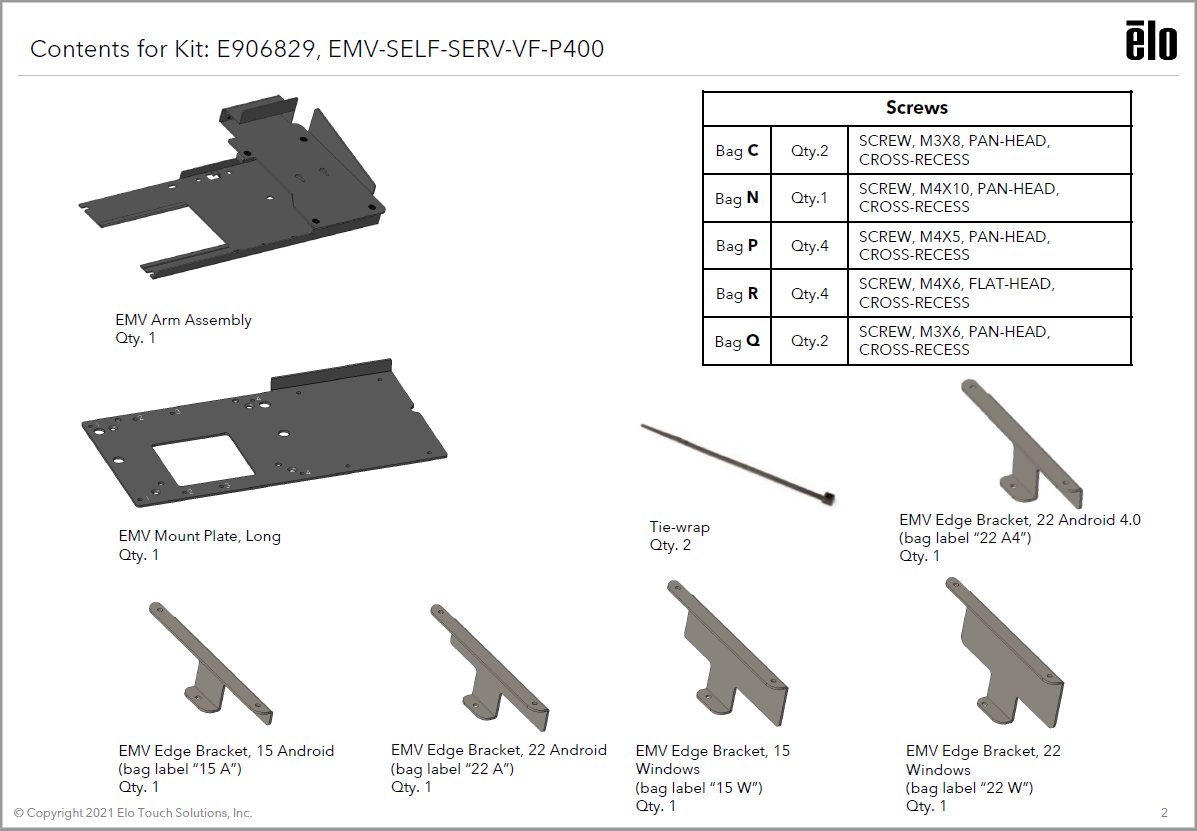

Kit Contents

• The following items shall be included in the P400 Bracket kit
  • P400 Bracket Subassy with desiccant
  • EMV Plate L (see SD608935 for details) with desiccant
  • Edge Connect brackets (qty 5)
  • Cable ties (qty 2)
  • In bag labeled “C”: Qty (2) 4 Screw, M3x8, Pan Head, Cross-Recess, Black
  • In bag labeled “N”: Qty (1) Screw, M4x10, Pan Head, Cross-Recess, Black
  • In bag labeled “P”: Qty (4) Screw, M4x5, Pan Head, Cross-Recess, Black
  • In bag labeled “R”: Qty (4) Screw, M4x6, Flat Head, Cross-Recess, Black
  • In bag labeled “Q”: Qty (2) Screw, M3x6, Pan Head, Cross-Recess, Black

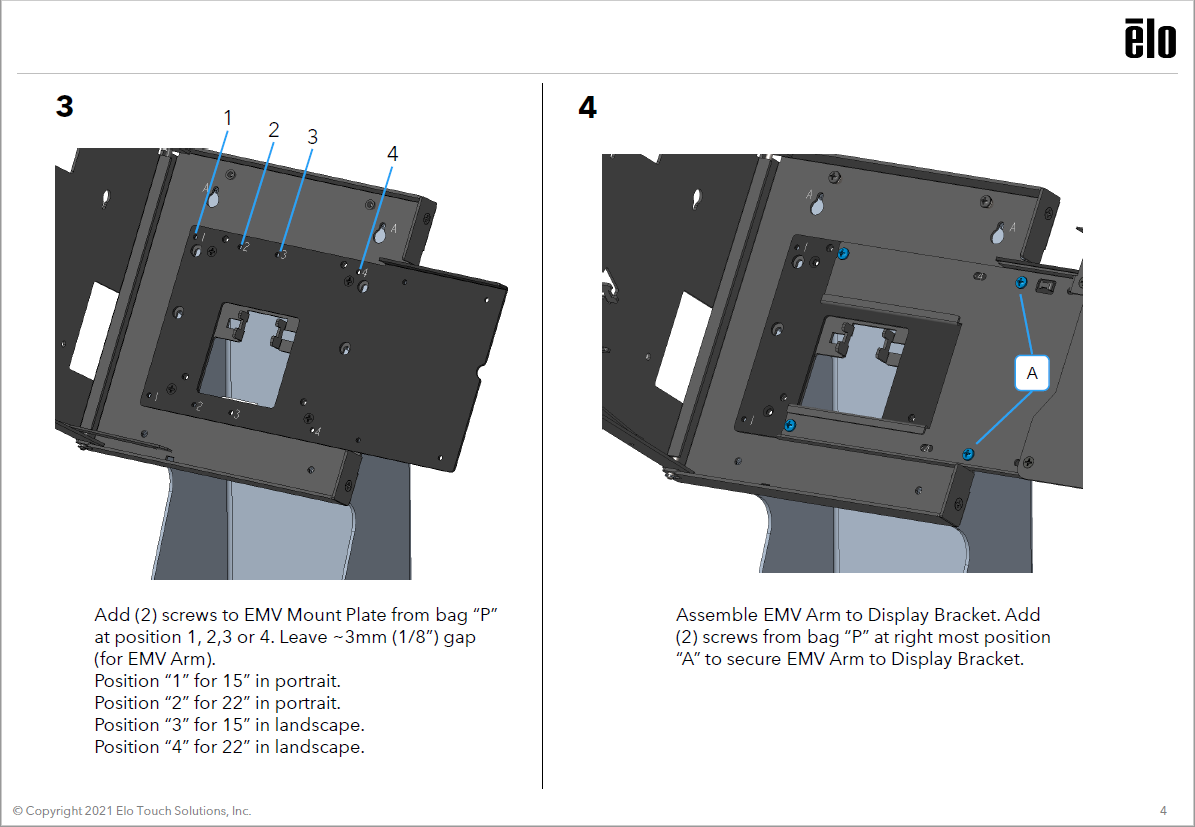

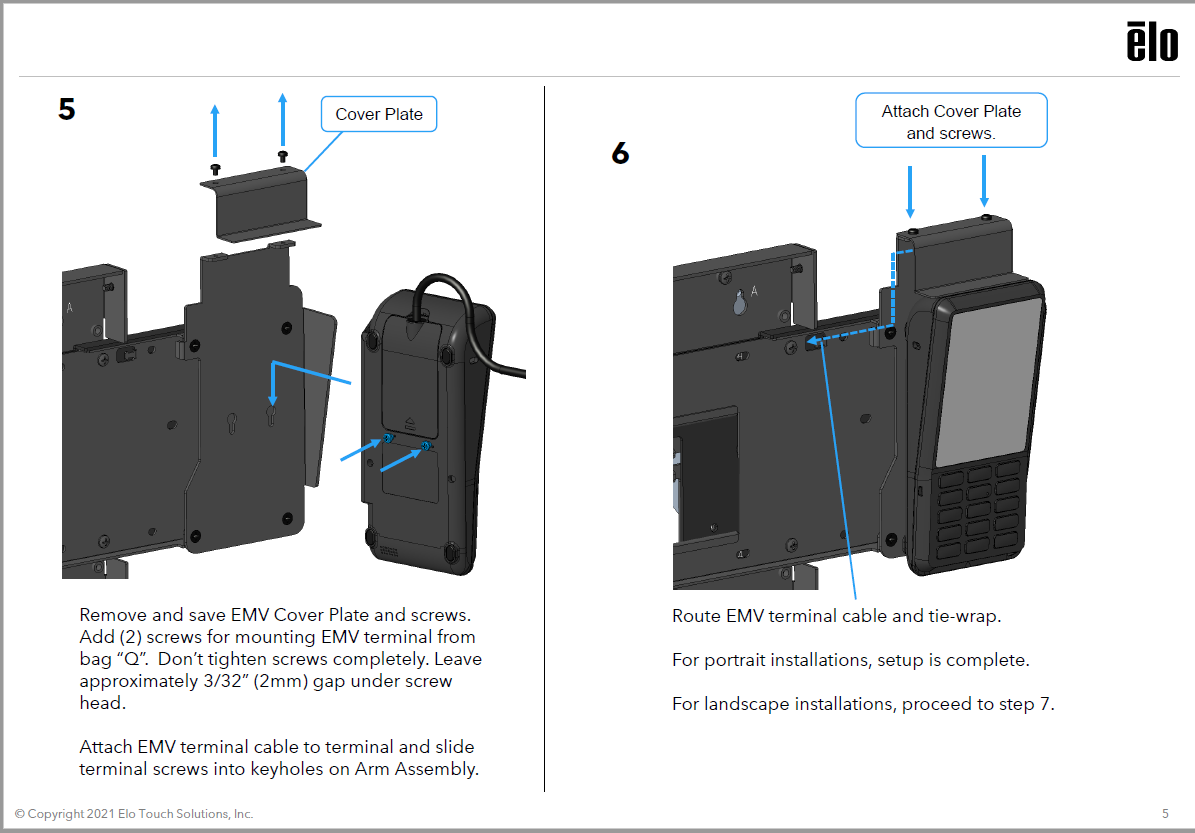

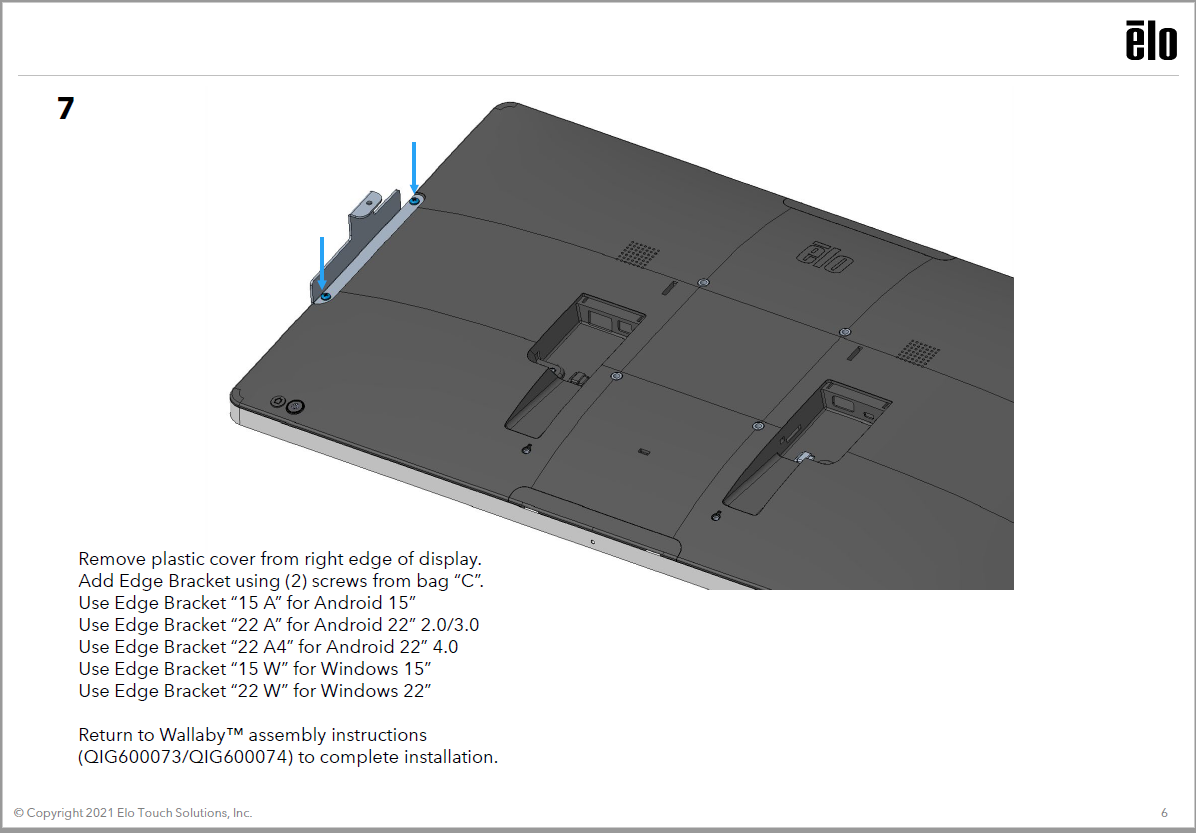

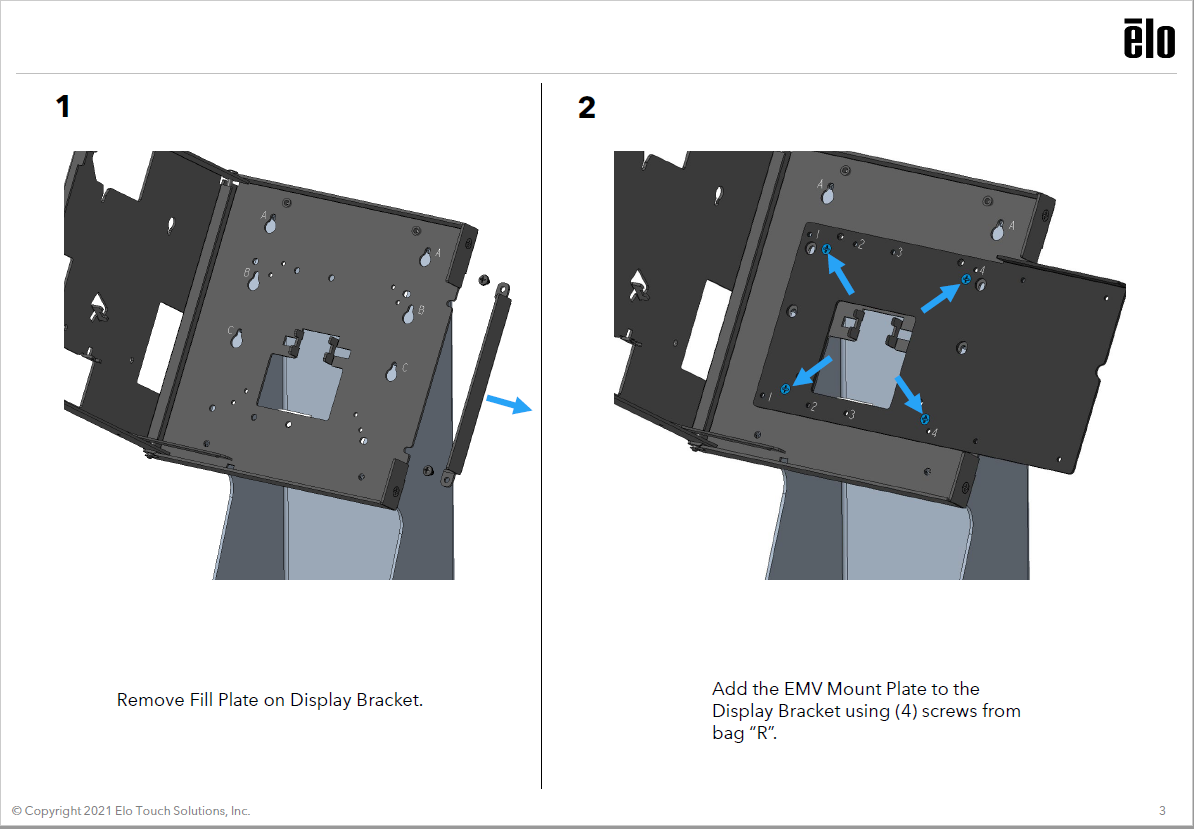

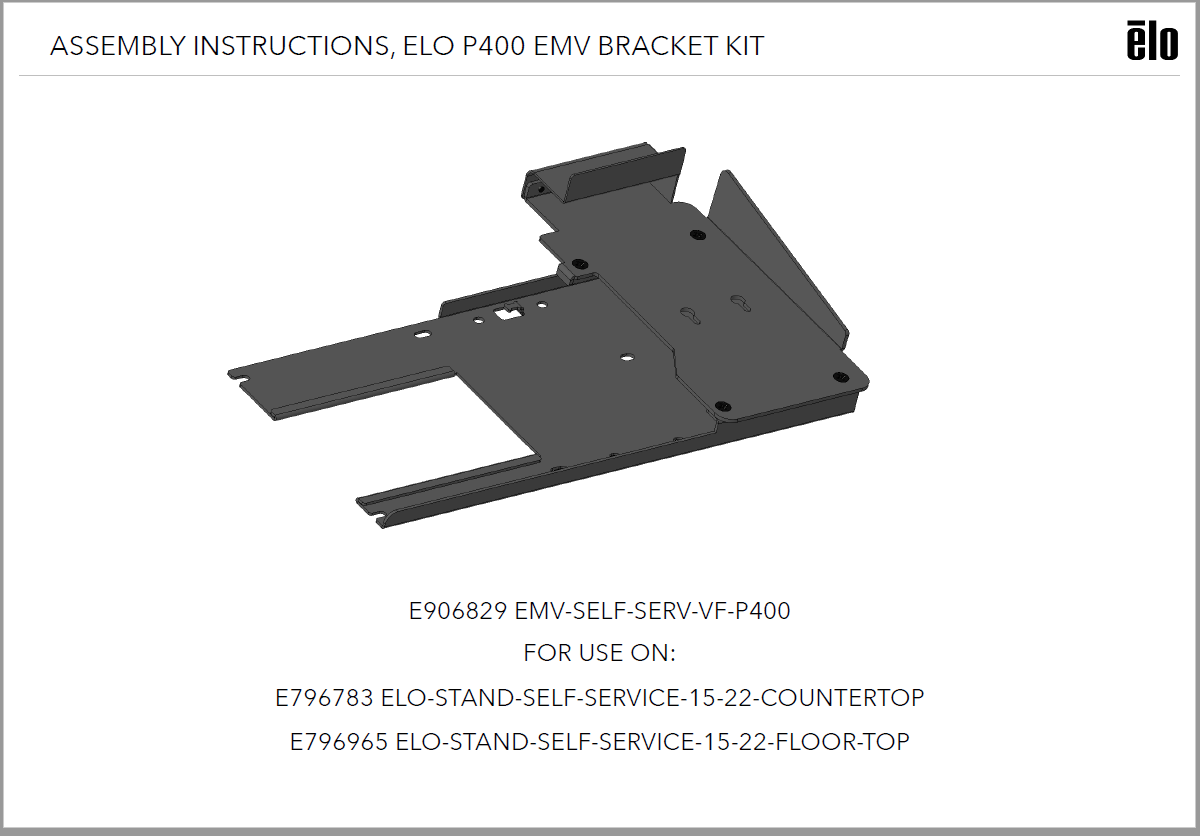

  • QIG600161 (also available below and in .pdf here)

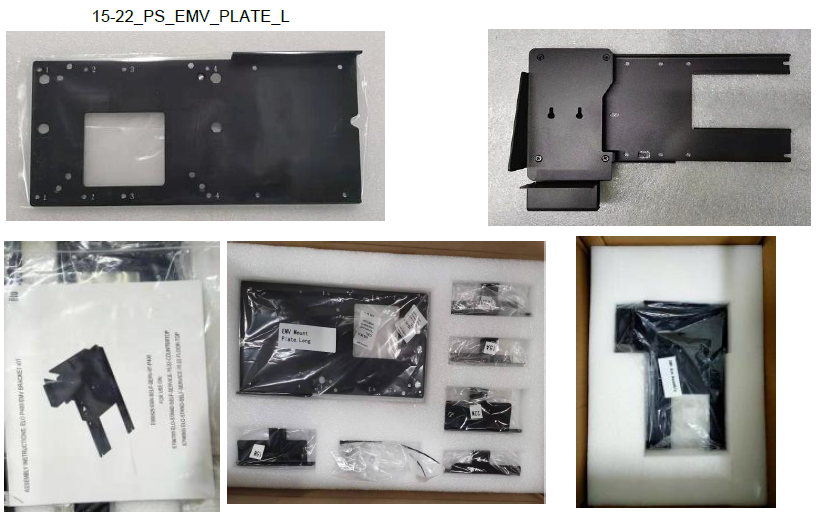

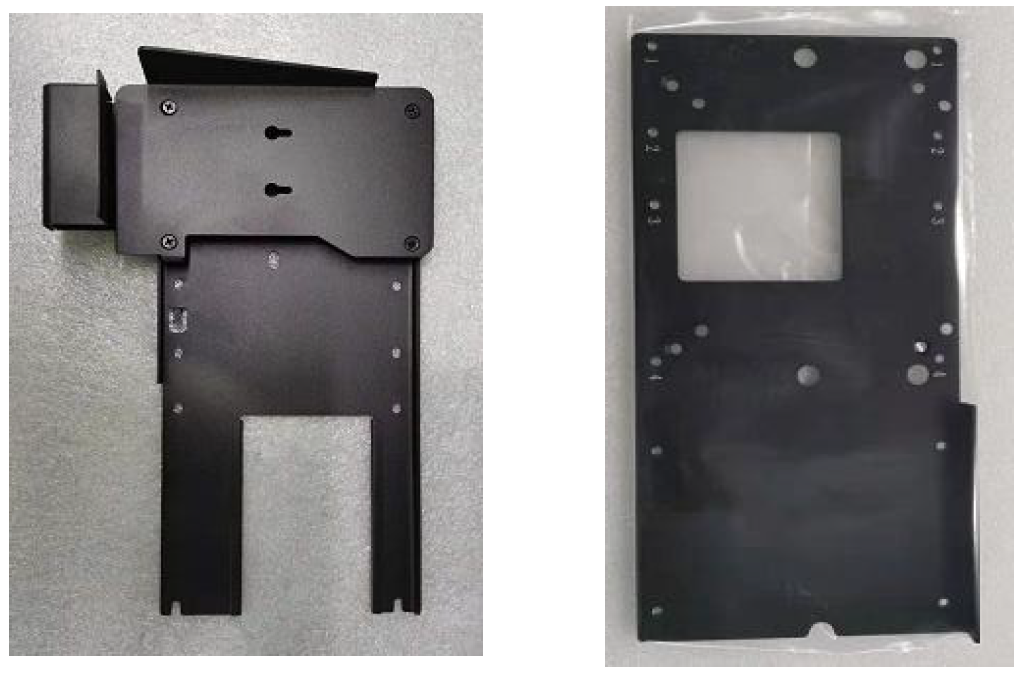

Photos

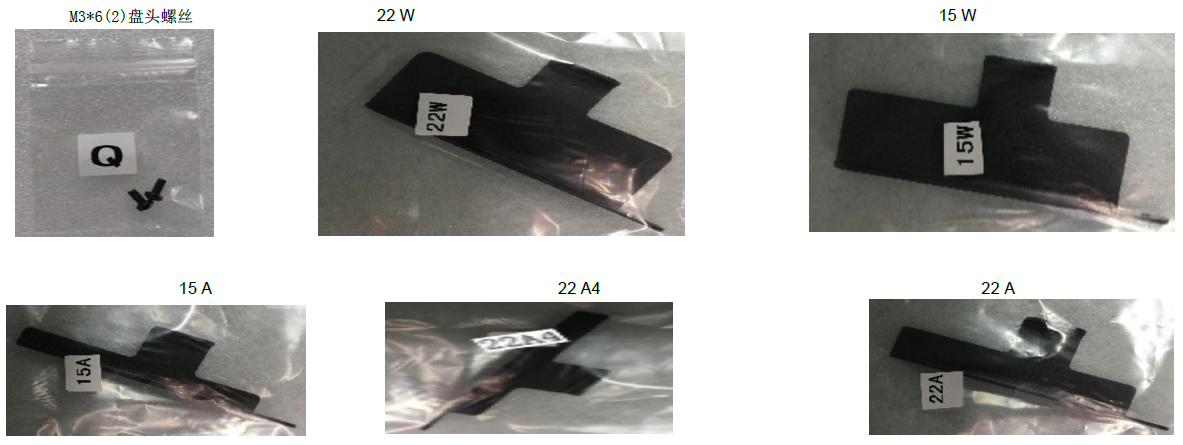

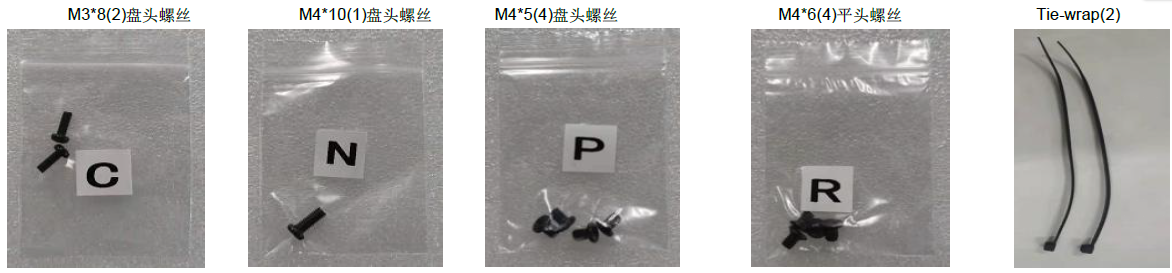

Package Contents

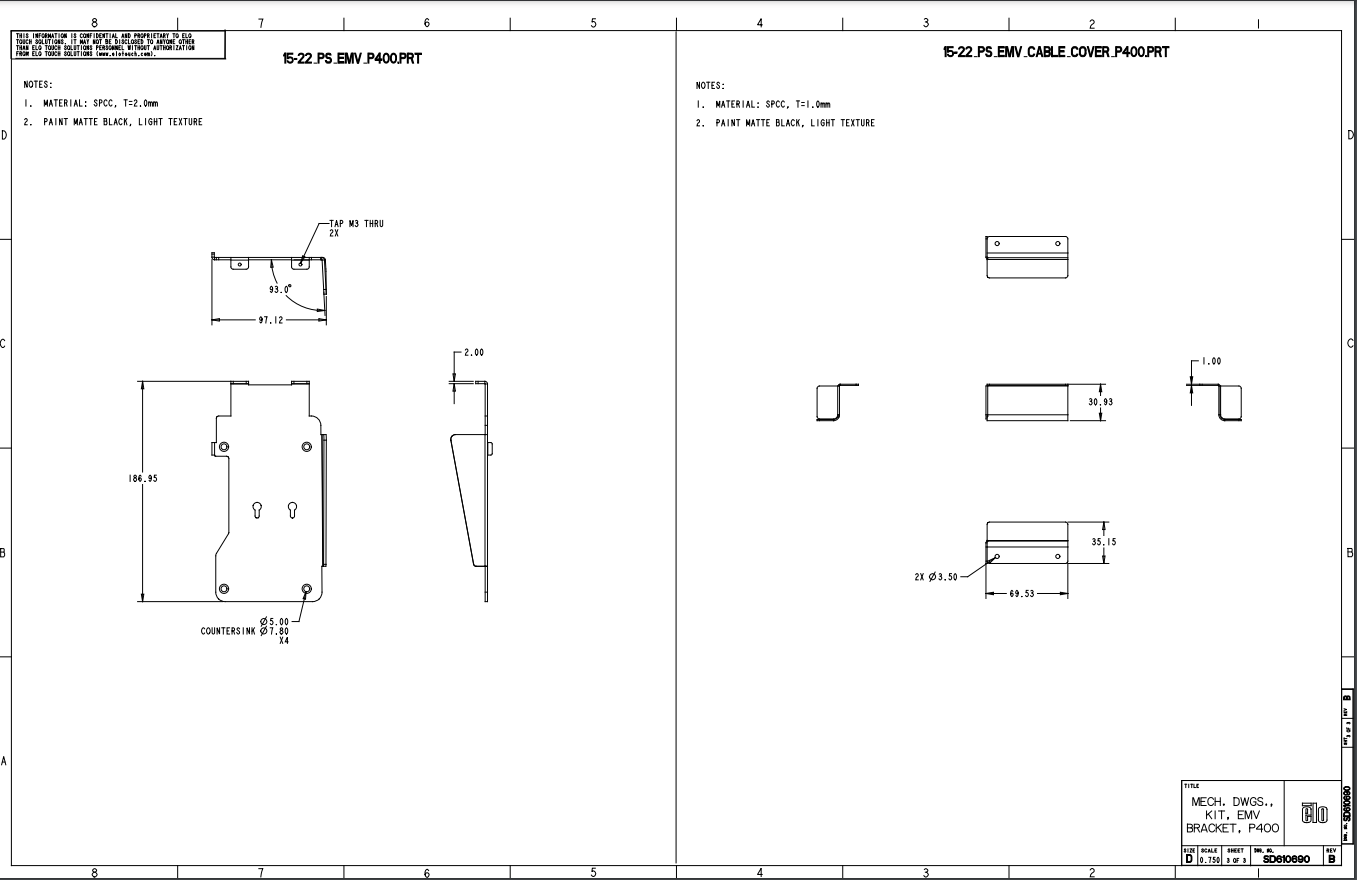

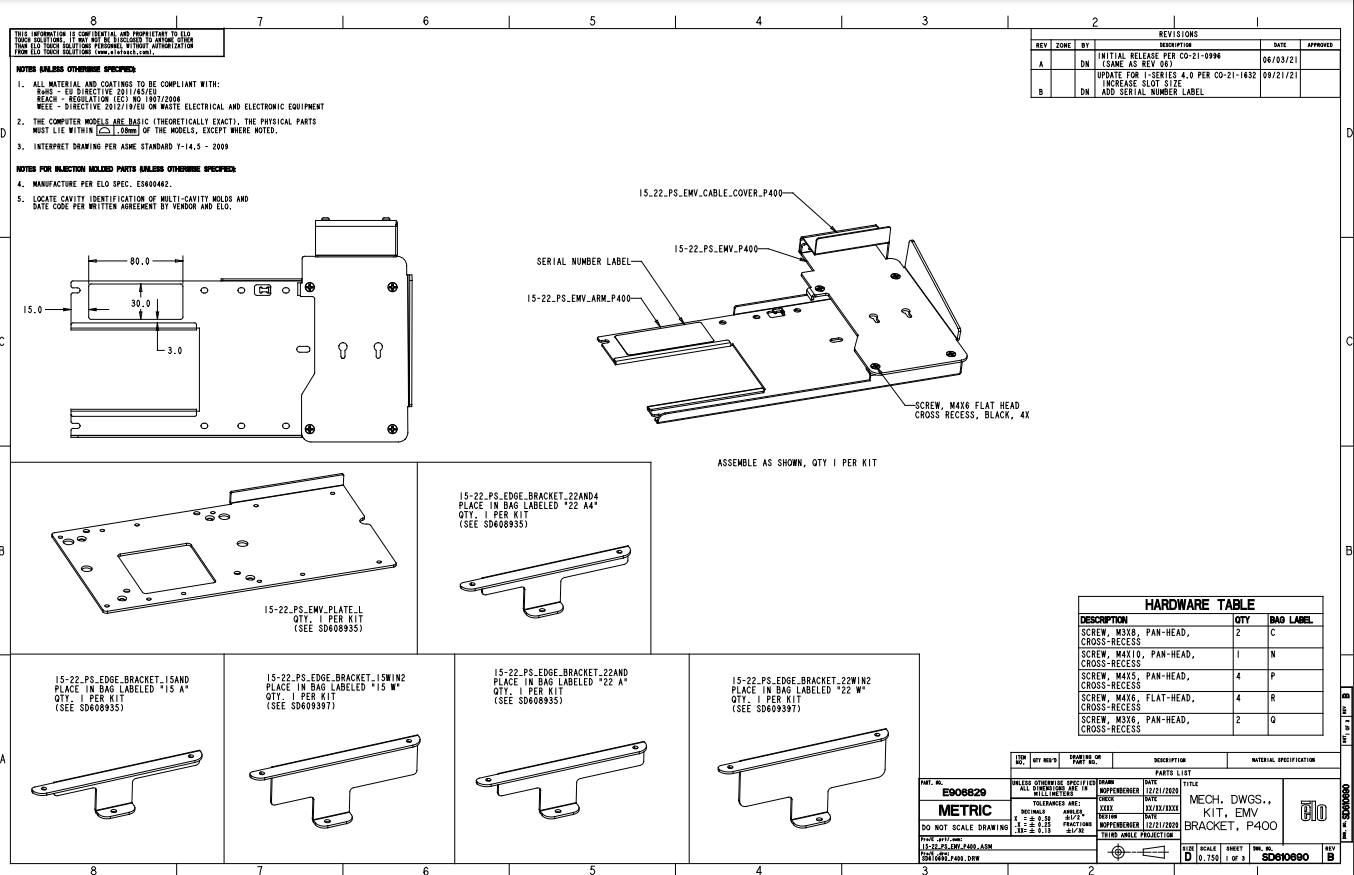

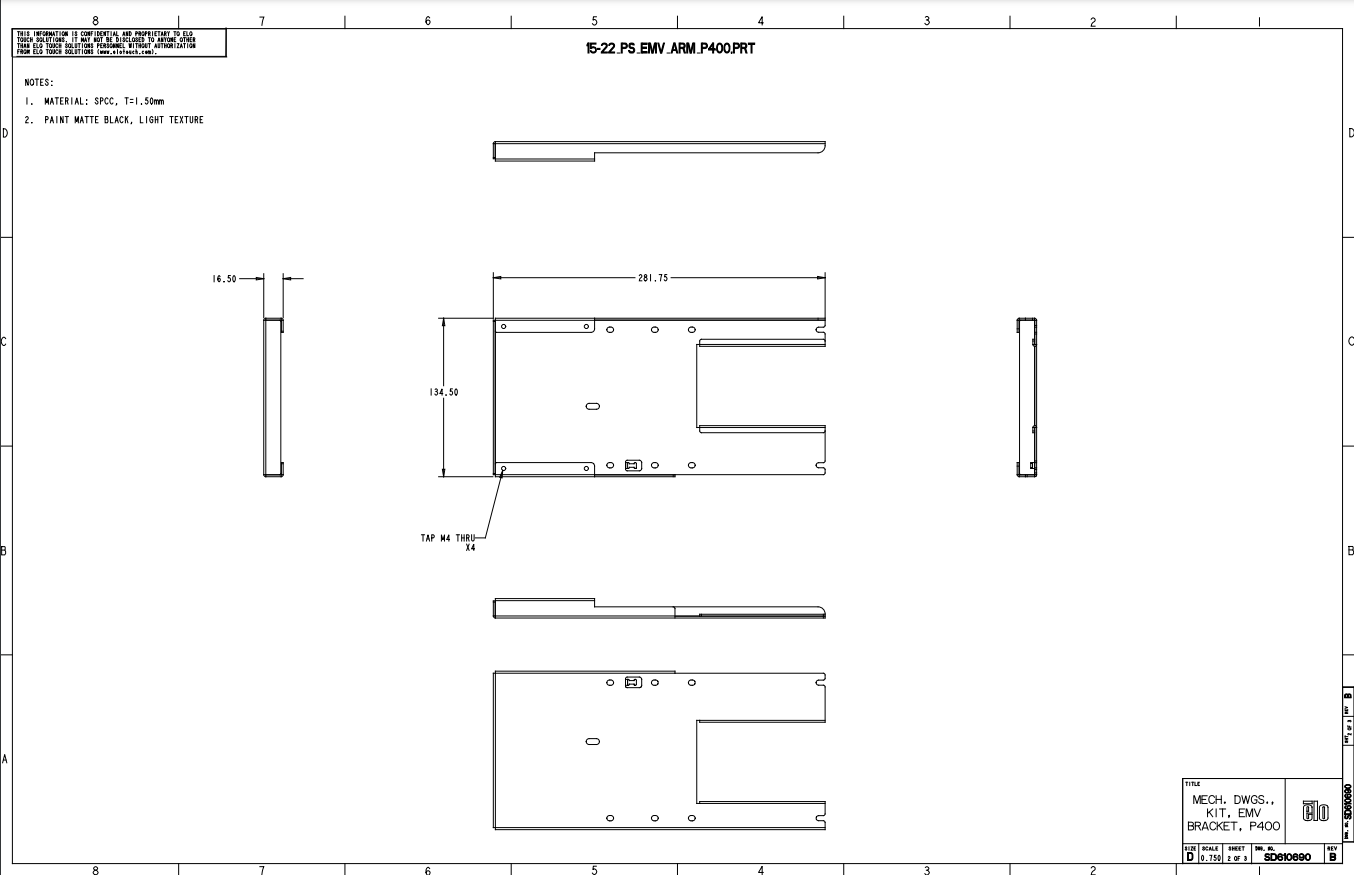

Drawings (also attached to this article)
