Below are the detailed power specifications for the Elo 2210L, 22-Inch Non-Touch Monitor.
Input Voltage Requirements
Rated Input Voltage: – 110V ±10% – 220V ±10%Power Consumption
Monitor ON: – Under 15W (default brightness: 90%) – Up to 27W (maximum brightness: 100%) Monitor SLEEP: – Under 0.5W Monitor OFF: – Under 0.3W @ 110V – Under 0.3W @ 230VPower Behavior
Monitor ships in the Off state by default On power-up, displays Elo logo for 5 seconds before switching to video input or entering sleep mode Remembers last power state after being unplugged and replugged Can be powered on even if “Power Locking” is enabled To turn on/off, press the power button oncePower Status Indicator

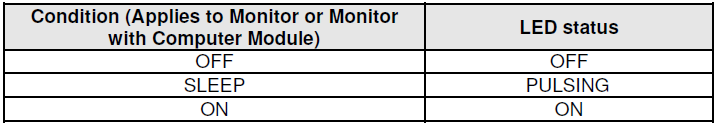

An LED indicator located on the side of the monitor reflects the current power status. Refer to the chart below for behavior based on monitor condition:
