What kind of mounting does the Elo 2210L, 22-Inch Non-Touch Monitor have?

This article describes the mounting feature on the back of the Elo 2210L, 22-Inch Non-Touch Monitor.

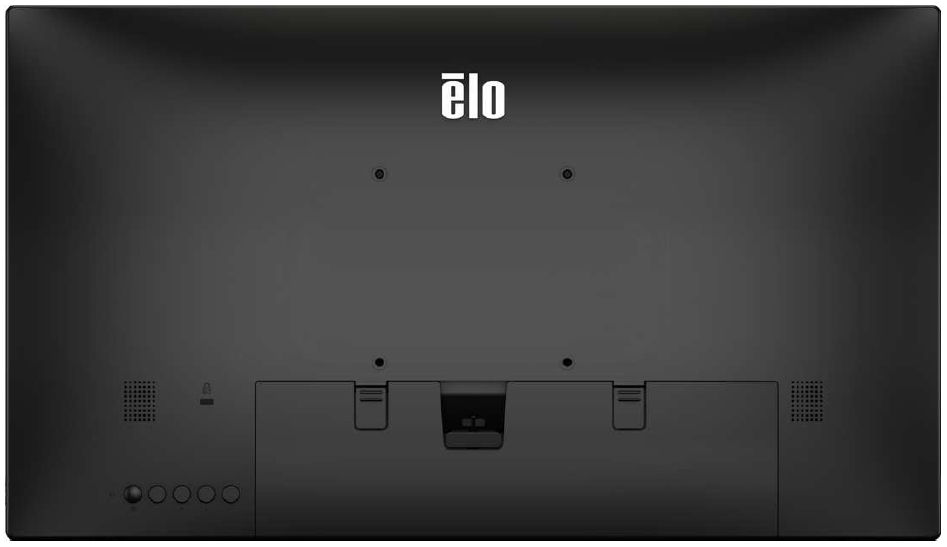

A four-hole mounting pattern for M4x10mm screws is provided on the rear of the monitor for 100x100mm VESA mounting.


The VESA FDMI-compliant counting is coded: VESA MIS-D. Reference dimensional drawing on elotouch.com for detailed dimensions.

  • Screw quantity: 4
  • Screw thread size: M4
  • Screw length: 5mm – 10mm
  • Screw head type: Flat head or pan head depending on mounting needs.
