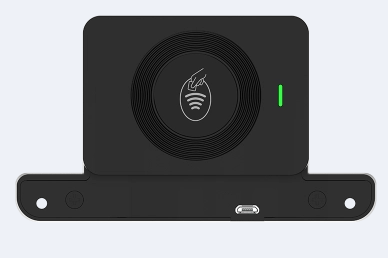

This article explains Elo E673037 Edge Connect™ NFC/RFID Reader Incompatibility with Contact EMV/Chip Cards

The Elo E673037 NFC/RFID reader is designed exclusively for contactless card and tag communication using radio‑frequency identification (RFID) and near‑field communication (NFC) standards such as ISO 14443 and ISO 15693.

Although it can read many types of contactless payment or authentication tokens, it does not support EMV “chip‑on‑card” transactions that require physical contact with a smart‑card interface.

This article explains the difference and clarifies why EMV/chip card compatibility is outside the functional scope of the Elo E673037.

Supported Technologies

The E673037 module is built for RFID and NFC operation, supporting:

• NFC‑A / NFC‑B protocols (ISO 14443 Type A/B)
• ISO 15693 vicinity cards (high‑frequency, 13.56 MHz)
• FeliCa and MIFARE® cards
• Peer‑to‑peer NFC data exchange (depending on host configuration)

These specifications are intended for contactless identification, access control, and tap‑to‑connect applications.

Not Supported: EMV or Contact Smart‑Card Standards

❌ No Physical Chip Interface

EMV‑compliant cards use a contact chip interface that requires direct electrical connection between the card’s chip and the reader’s metallic contact pads.

The Elo E673037 contains only an inductive (RF) interface coil—there are no physical chip contacts or circuitry to handle direct EMV communication.

❌ Not EMV Level 1/Level 2 Certified

EMV card acceptance requires compliance with:

• EMV Level 1 (physical and electrical interface)
• EMV Level 2 (payment kernel and protocol support)

The E673037 is not certified for either of these standards, so it cannot perform secure EMV transactions or manage cryptographic operations required for chip‑card payments.

❌ No Secure Element or PCI‑PTS Hardware

Payment terminals that process chip cards include a secure element (SAM) and PCI‑PTS‑validated firmware for transaction encryption and key management.
The Elo reader lacks these components; it transmits UID and limited tag data only, not financial or EMV transaction data.

Typical Use Cases

The E673037 is ideal for:

• Employee or customer identification (NFC badges, 13.56 MHz tags)
• Kiosk user authentication via phone tap
• Loyalty card or event pass check‑in
• Device pairing or asset tracking via NFC tag scanning

Compatible Alternatives

If your application requires EMV or chip‑card functionality, use a device with dedicated EMV certification and dual‑interface card support, such as:

• Ingenico Lane/Series or Verifone UX terminals
• ID Tech Kiosk or Hybrid readers with EMV Level 1 & 2 compliance

These devices include electrical contact interfaces, secured firmware, and the necessary EMV kernels for chip‑based financial transactions.

Summary

Key Takeaway

The Elo E673037 is a contactless NFC/RFID reader, not a payment or EMV device.
It cannot read or process contact chip cards, and it does not support the protocols or certifications required for secure EMV transactions.
