This article provides an overview and specifications for P/N: E541676, Elo Edge Connect 10-Key Keypad.

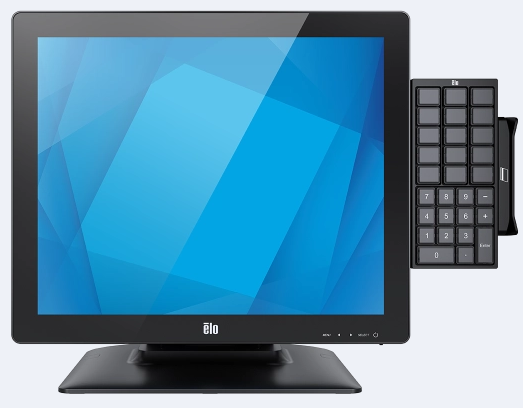

The Elo Edge Connect 10-Key Keypad is designed for high-volume, numeric-intensive environments where speed and accuracy matter. It enables fast, reliable entry of PLUs, prices, and quantities. The tactile, ergonomic key layout improves efficiency, while wired connectivity ensures secure, uninterrupted, low-latency input.

Built for seamless integration with POS systems and data-entry applications, the 10-Key keypad delivers consistent, durable performance shift after shift.

Key Features

15 Programmable Keys

The keypad includes 15 programmable buttons to support custom workflows and application-specific shortcuts. Keys can be configured to lock or unlock the device, enabling secure access control.

Edge Connect Expansion

An integrated Edge Connect port is located on the right side of the keypad, allowing additional Elo Edge Connect peripherals to be connected without consuming a separate device port.

Secure Mounting

The keypad mounts securely to the edge or rear of the display, providing stability during fast, high-volume operation.

Specifications

Part Number

• E541676

Enclosure Color

• Black

Compatibility

• Touchscreen Monitors: 1523L, 1723L
• Note: A different metal bracket is required depending on the monitor model.

Power

• USB powered

Compliance

• USB 2.0 Full-Speed

Interface

• Wafer Connect USB
• Pitch: 1.25 mm
• Cable length: 235 mm

Supported Operating Systems

• Android 10, 12, 14
• Windows 10, 11
• Linux 22.04

Dimensions

• 7.37 in × 3.35 in × 0.98 in
• 187.3 mm × 85 mm × 24.8 mm

Shipping Box Dimensions

• 9.53 in × 9.73 in × 3.19 in
• 242 mm × 247 mm × 81 mm

Weight

• Unpackaged: 0.49 lb (222 g)
• Packaged: 2.86 lb (1300 g)

Environmental

• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Storage temperature: −20°C to 50°C (−4°F to 122°F)
• Humidity:
  • Operating: 20% to 80%
  • Storage: 10% to 95%

Regulatory

• CE
• FCC / IC

Warranty

• 2-year limited warranty

What’s in the Box

• 1 × 10-Key Keypad with integrated USB cable
• 1 × Bracket for 1523L
• 1 × Bracket for 1723L
• 1 × Quick Install Guide (QIG)
• 1 × M4 × 18 screw (A) for mounting the bracket to 1523L or 1723L monitors
• 2 × M3 × 6 screws (B) for mounting the MSR kit
• 4 × M3 × 7 screws (C) for mounting the bracket to the keypad
• 1 × Key cap / tip removal tool (D)

Documentation

• Dimensional Drawing:
  https://docs.elotouch.com/MS-0057748.pdf
• Quick Install Guide:
  https://docs.elotouch.com/QIG600330.pdf
