Product Launch Bulletin
|
PLB: 000-261 | Elo 04LS Non-Touch Commercial Monitors (7" to 15")
Audience: Public (Customers, Partners, Resellers, System Integrators)
Article Type: Product Announcement / New Product Introduction (NPI)
Effective Date: October 6, 2026
Overview
A sleek new way to display more.

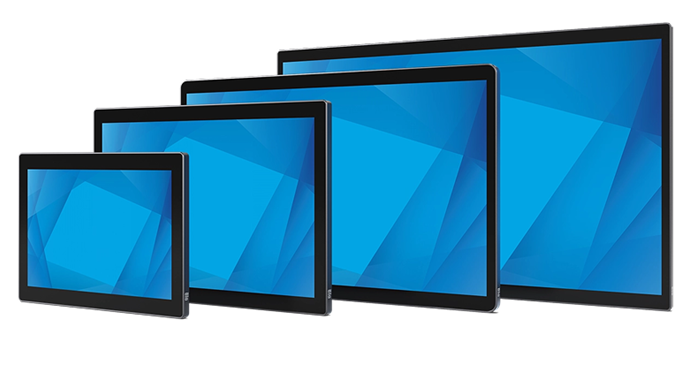

Now available in non-touch across all sizes, the Elo 04LS product line expands sleek, commercial-grade display technology to more enterprise workflows. Offered in 7", 10", 13", and 15" form factors, these slim displays feature zero-bezel narrow borders, enhanced durability, and optical bonding for brilliant clarity in any lighting environment.
From customer-facing displays (CFD) and interactive retail media to industrial human-machine interfaces (HMI), queue management systems, and point-of-information (POI) terminals, the 04LS non-touch lineup delivers a clean, flexible form factor built to fit demanding commercial settings.
Key Highlights & Features
🔌 USB-C Connectivity
Single-cable connection streamlining video, touch/data, and power distribution for clean cable management and rapid installation.
✨ Optically-Bonded Displays
Direct optical bonding eliminates internal air gaps, reducing reflections, maximizing contrast, and providing superior impact durability.
📐 Narrow Borders & Zero-Bezel
Ultra-slim, edge-to-edge glass aesthetic with anti-glare treatment delivers a modern finish that is easy to sanitize and maintain.
Product Numbers & Ordering Information
| Part Number | Model | Screen Size & Resolution | Key Specifications |
|---|---|---|---|
| E623910 | Elo 0704LS | 7.0-inch Wide LCD HD 1280 x 800 |
Non-touch, Anti-Glare, Zero-Bezel, No Stand, USB-C Input, Gray, Worldwide |
| E624103 | Elo 1004LS | 10.1-inch Wide LCD HD 1280 x 800 |
Non-touch, Anti-Glare, Zero-Bezel, No Stand, USB-C Input, Gray, Worldwide |
| E736884 | Elo 1304LS | 13.3-inch Wide LCD Full HD 1920 x 1080 |
Non-touch, Anti-Glare, Zero-Bezel, No Stand, USB-C Input, Gray, Worldwide |
| E737067 | Elo 1504LS | 15.6-inch Wide LCD Full HD 1920 x 1080 |
Non-touch, Anti-Glare, Zero-Bezel, No Stand, USB-C Input, Gray, Worldwide |
Target Applications
- Retail & Hospitality: Customer-facing displays (CFD), secondary POS screens, self-order status screens, and targeted digital promotion.
- Industrial & Manufacturing: Machine HMI dashboards, test station readouts, and assembly line process monitors.
- Healthcare & Commercial Infrastructure: Patient queue tracking, service counter information boards, and compact check-in kiosks.
Contact Elo Sales & Technical Support
To learn more about Elo 04LS Series monitors, visit the 04LS Product Page or contact our sales team:
- Toll-Free Sales: 844-356-3548
- Corporate Headquarters: (408) 597-8000
- Email: elosales.na@zebra.com
- Address: Elo Touch Solutions, 2439 Bertelkamp Ln, Knoxville, TN 37931
