¿Dónde puedo encontrar un pinout del conector LVDS en los Módulos de Pantalla Elo?

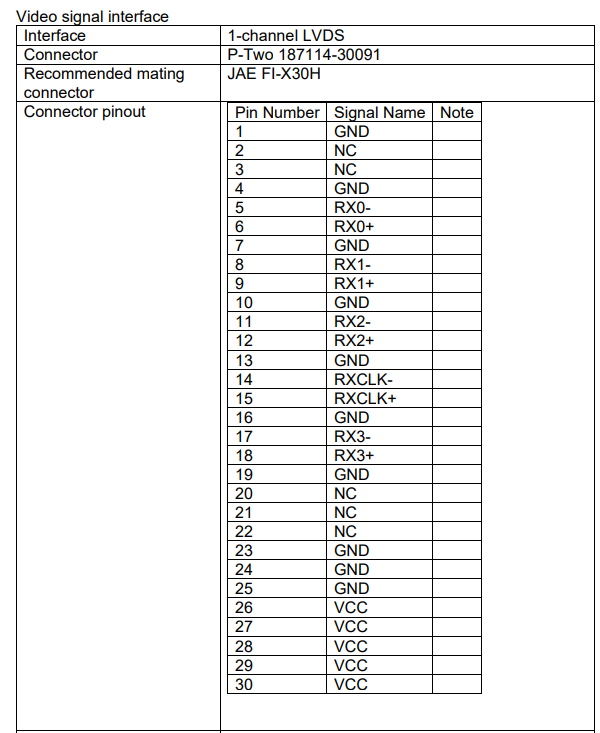

Este artículo muestra la disposición de pines del conector LVDS en el Módulo de Pantalla Elo de 15.6 pulgadas, P/N:E270963
