¿Dónde puedo encontrar el pin-out del conector LVDS para el módulo de pantalla Elo de 7 pulgadas?

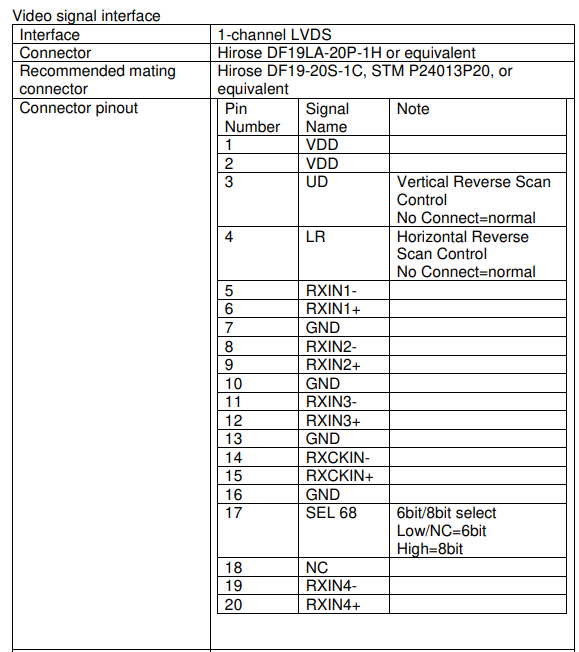

Este artículo muestra la disposición de pines para el conector LVDS en el módulo de pantalla Elo de 7 pulgadas, P/N:E271156



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
