¿Dónde puedo encontrar los dibujos dimensionales para el monitor 2799L Outdoor Open Frame?

Este artículo proporciona los dibujos dimensionales para el monitor 2799L Outdoor Open Frame

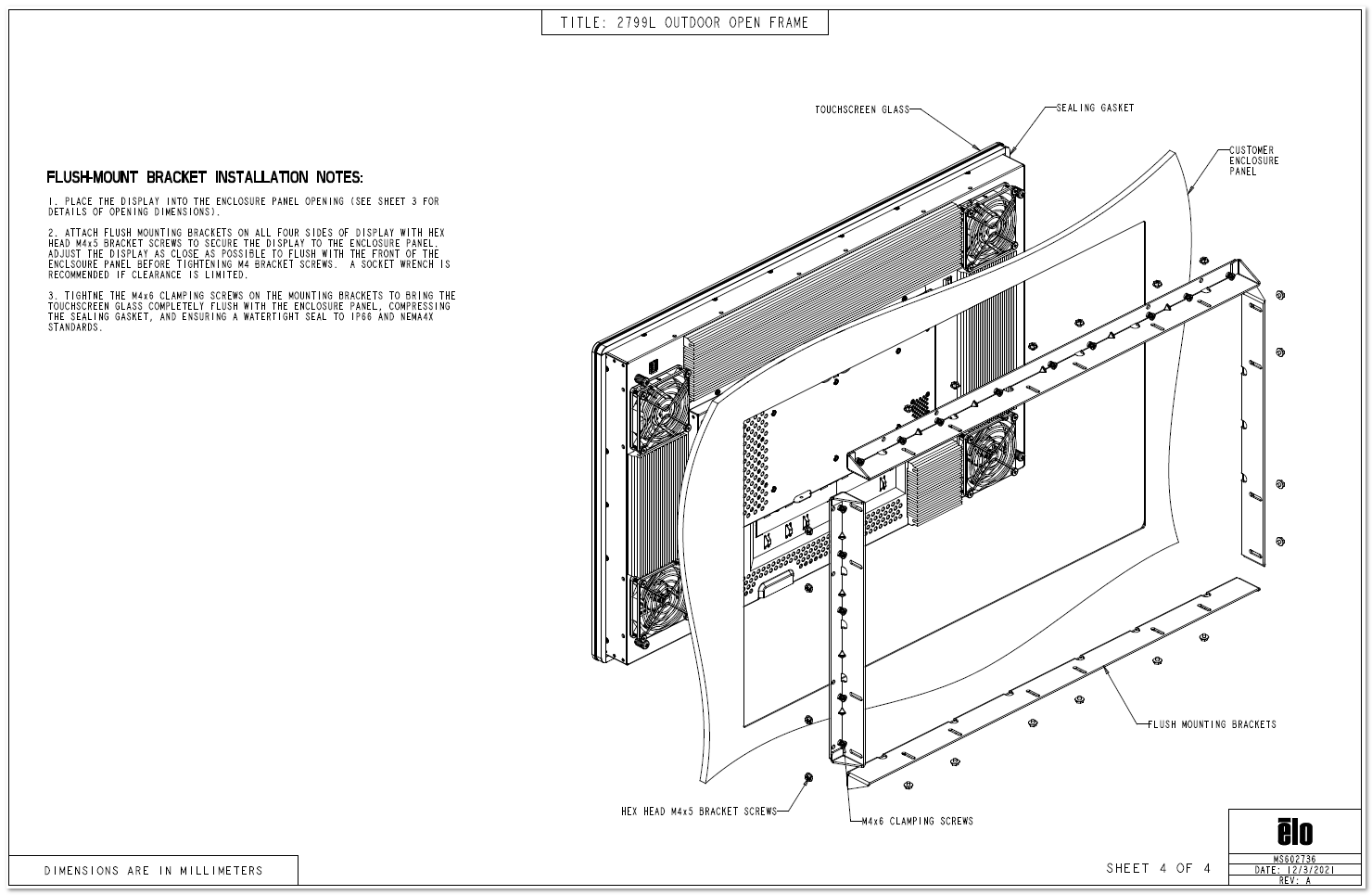

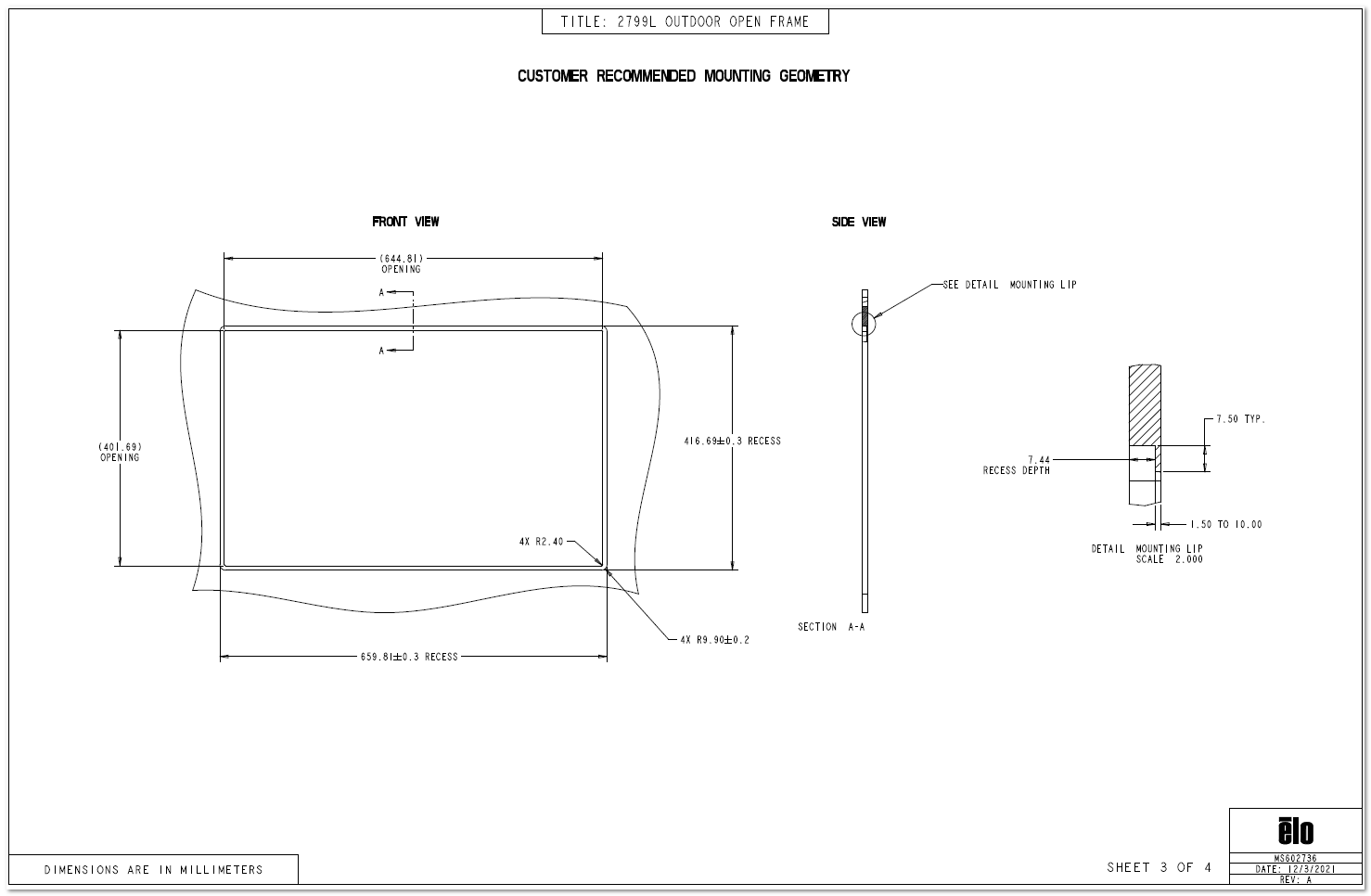

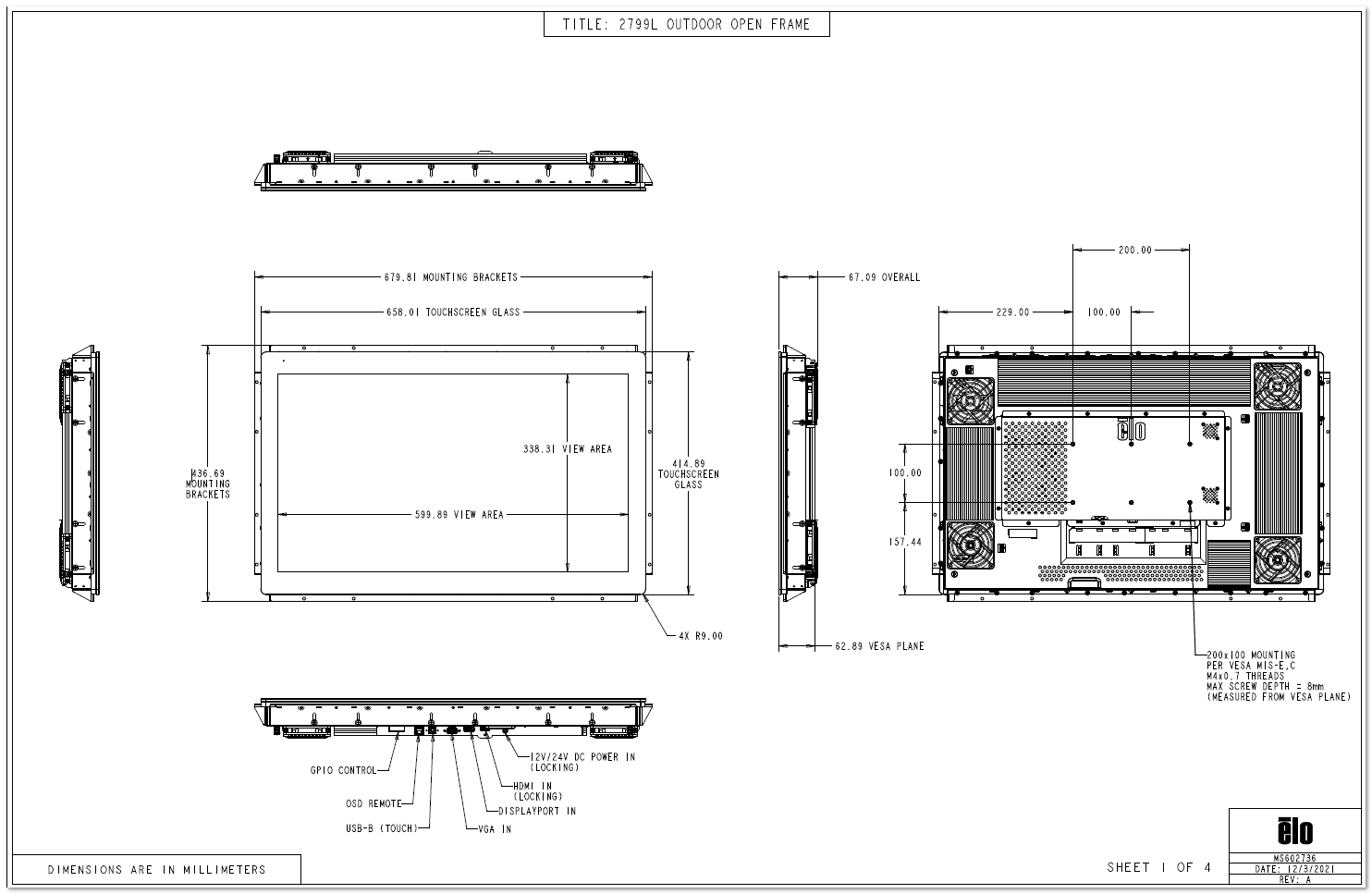

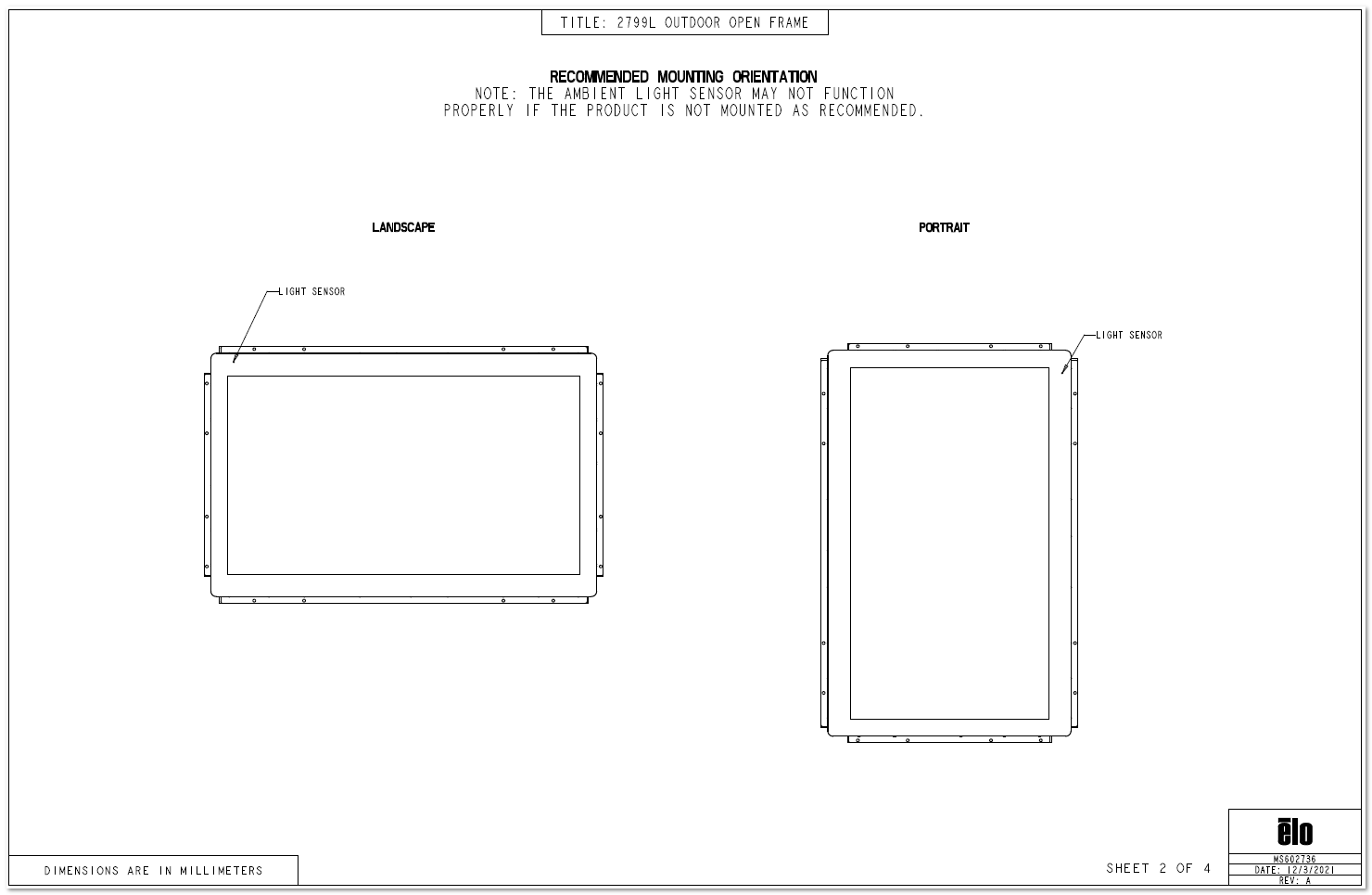

Dibujos:
