Bienvenido al Soporte de Elo

Controladores, información de productos, respuestas técnicas y más.

¿Dónde puedo encontrar información sobre E553352, kit de marco frontal de 20 pulgadas de Elo?

Este artículo proporciona información para P/N: E553352, Kit de bisel frontal de 20 pulgadas de Elo

Este kit de bisel es compatible con monitores Elo ET2094 equipados con tecnologías IntelliTouch, AccuTouch y SecureTouch. Esto NO es compatible con el monitor equipado con PCAP.

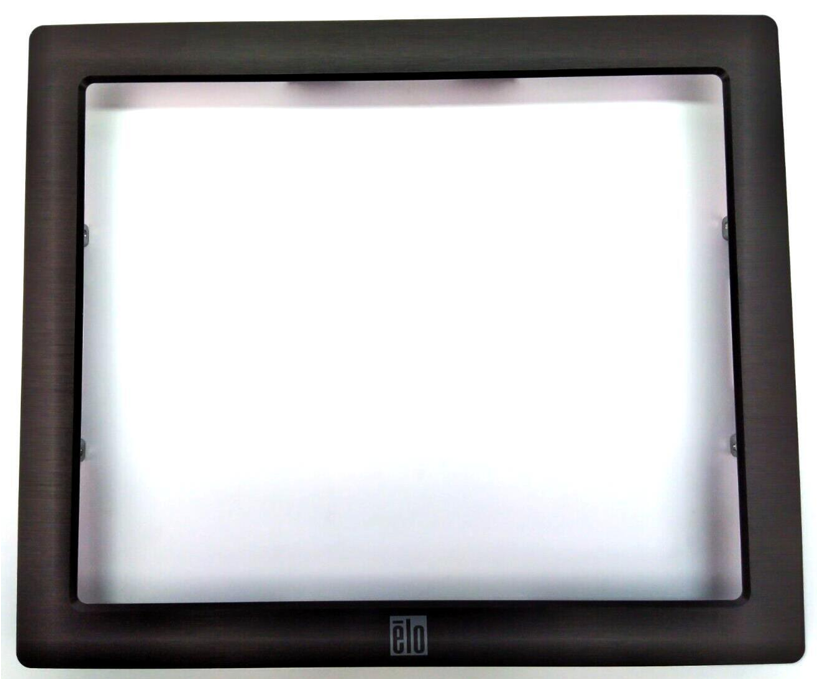

Foto:
(la foto mostrada es para el monitor de relación de aspecto estándar de 19". El kit de bisel para el 2094L será más ancho pero se parecerá mucho al de abajo)

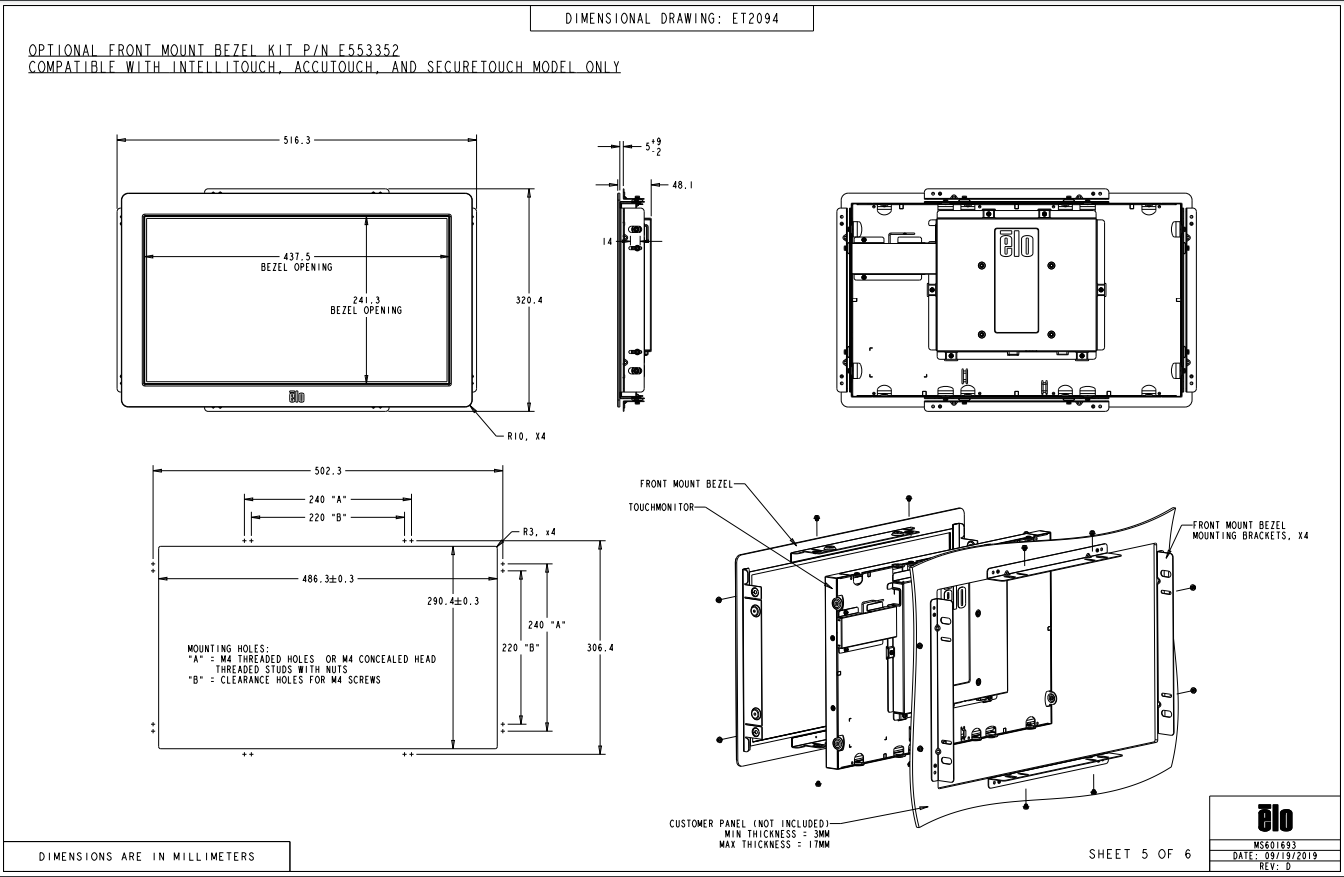

Dibujo

Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
