Bienvenido al Soporte de Elo

Controladores, información de productos, respuestas técnicas y más.

¿Dónde puedo encontrar información sobre E193547, Kit, adaptador VESA, E-Series 3, 75mm?

Este artículo proporciona información sobre E193547, Kit, Adaptador VESA, E-Series 3, 75mm.

Este adaptador VESA está diseñado específicamente para la computadora de pantalla táctil Elo E-Series 3 AIO.

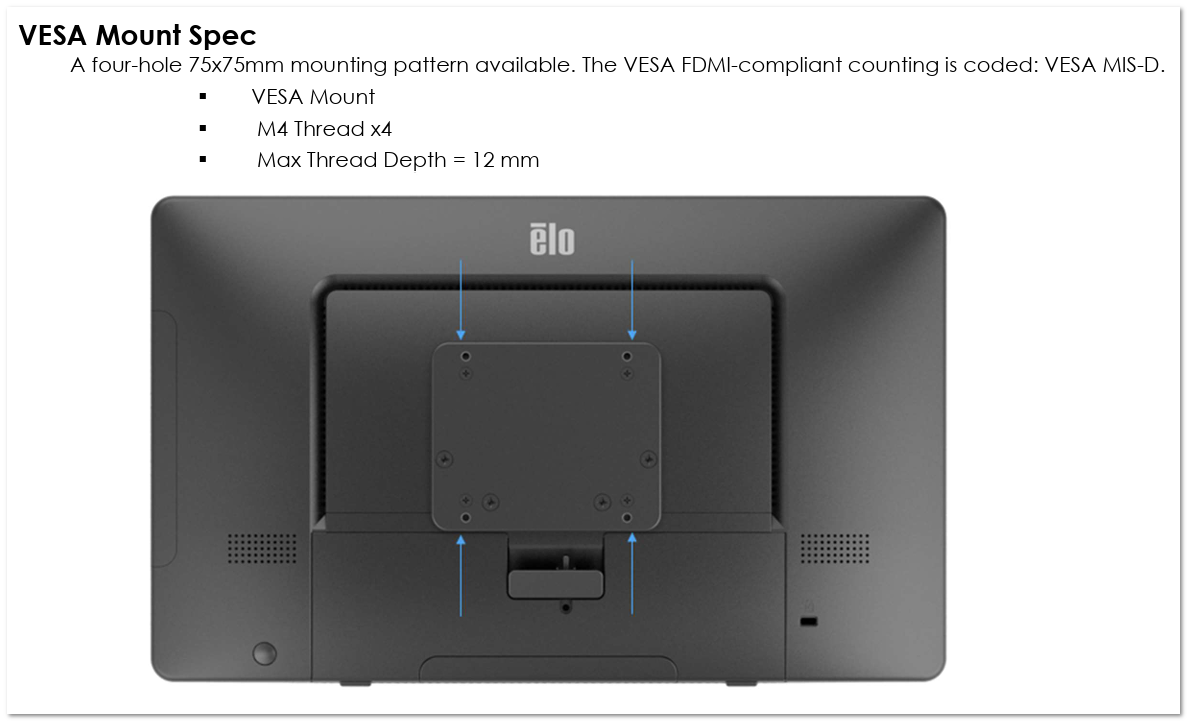

Dibujo CAD

Contenido del Kit E193547:

  • 1 Adaptador VESA

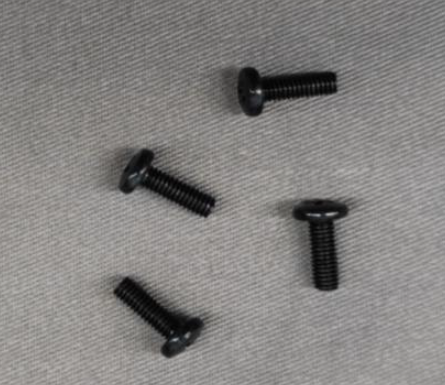

  • 4 tornillos, M4 X 12mm Long
  • 1 Guía de Instalación Rápida

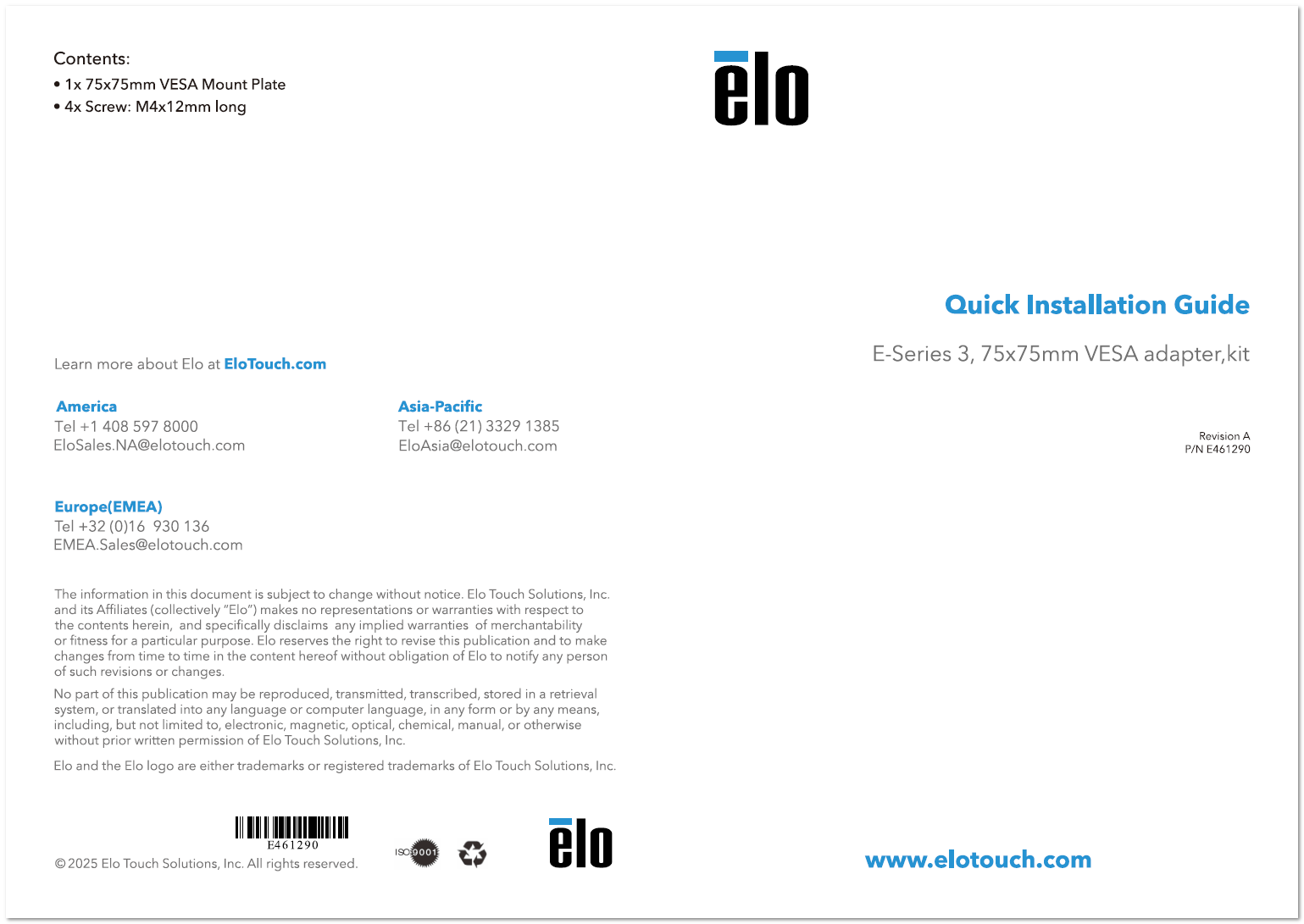

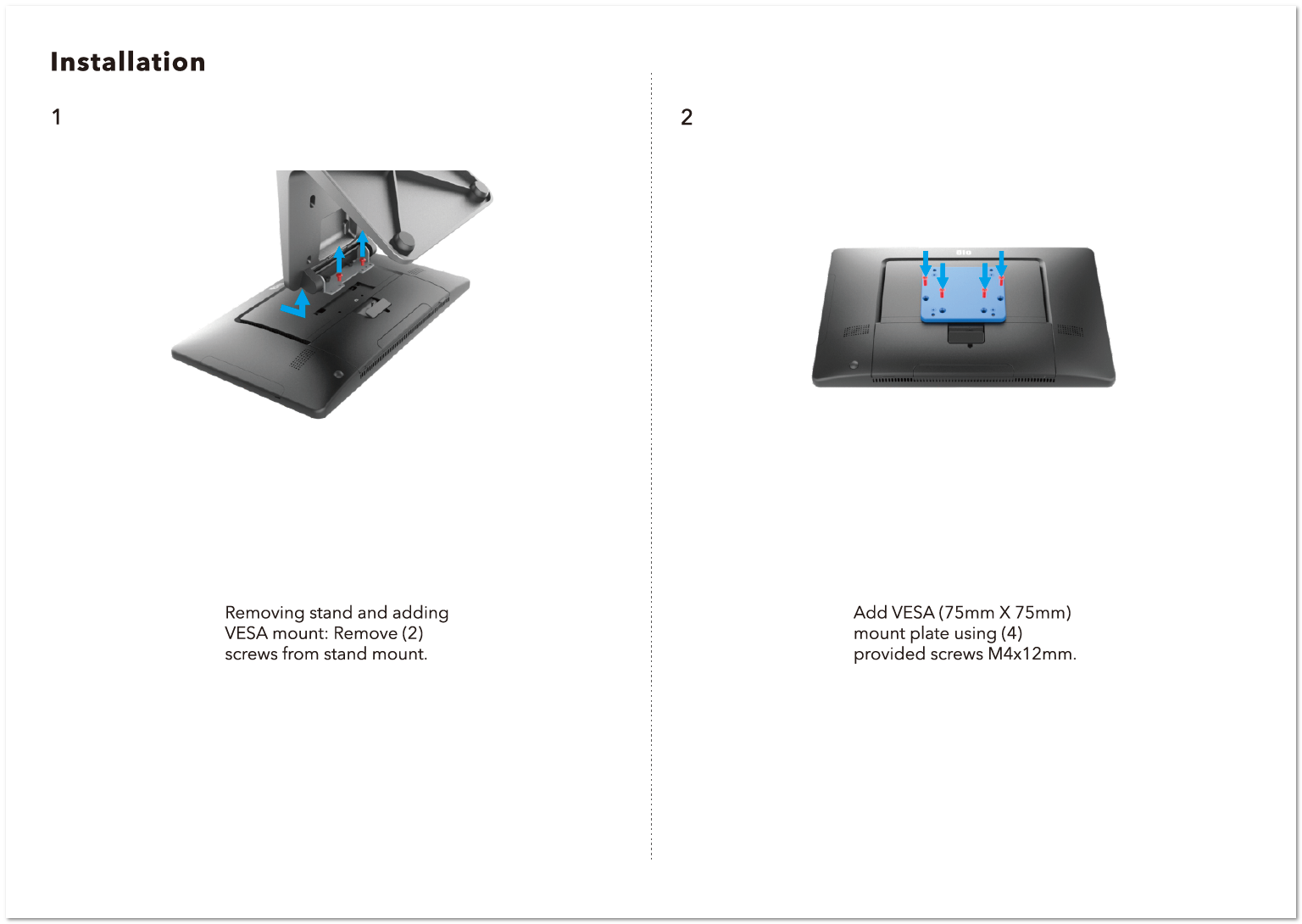

Guía de Instalación Rápida

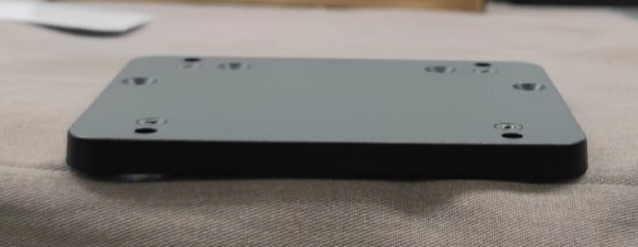

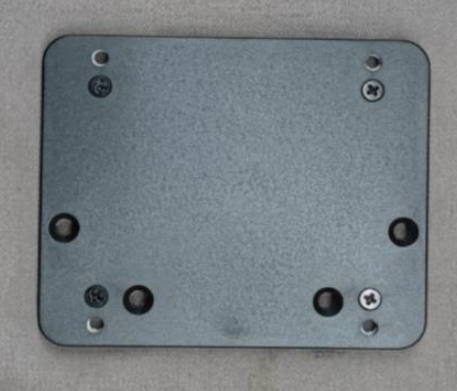

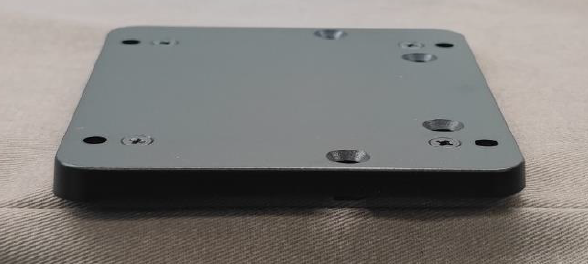

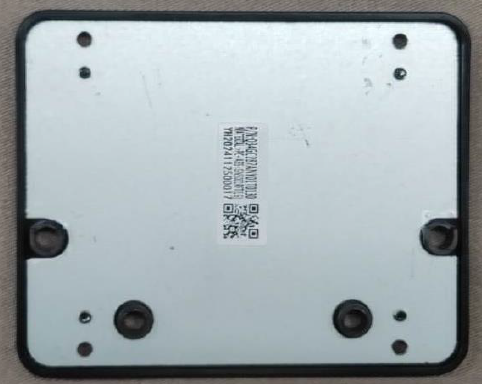

Fotos:
