Bienvenido al soporte de Elo

Controladores, información del producto, respuestas técnicas y más.

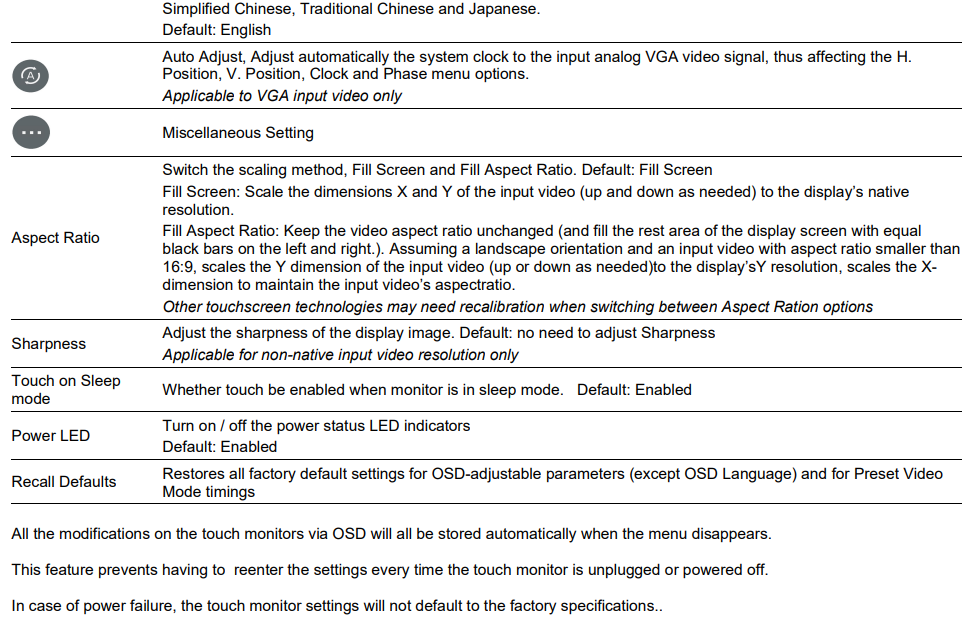

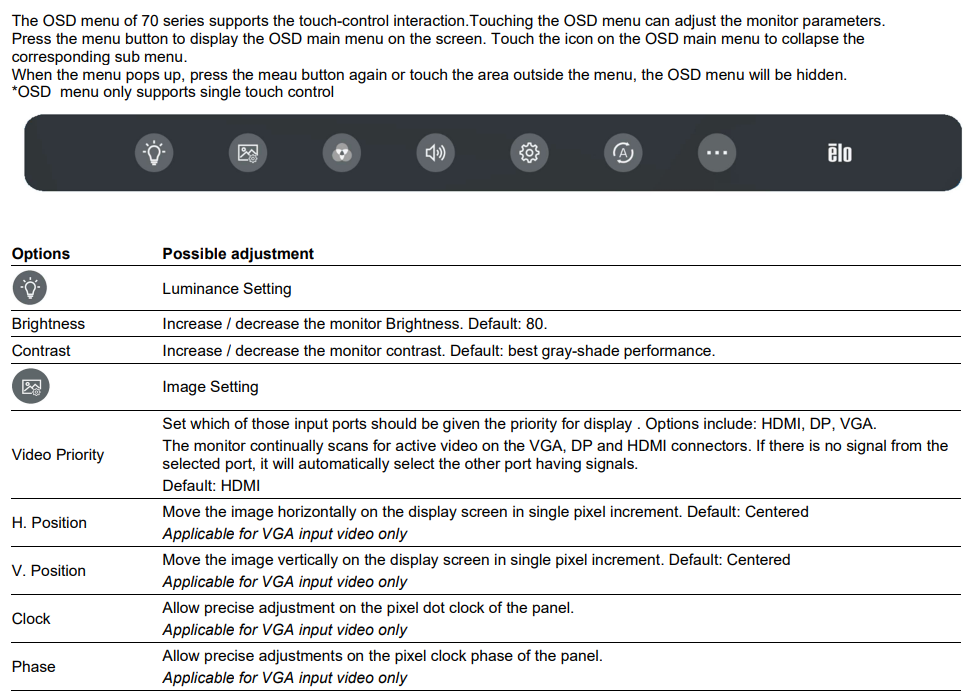

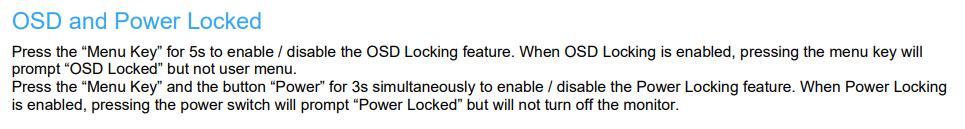

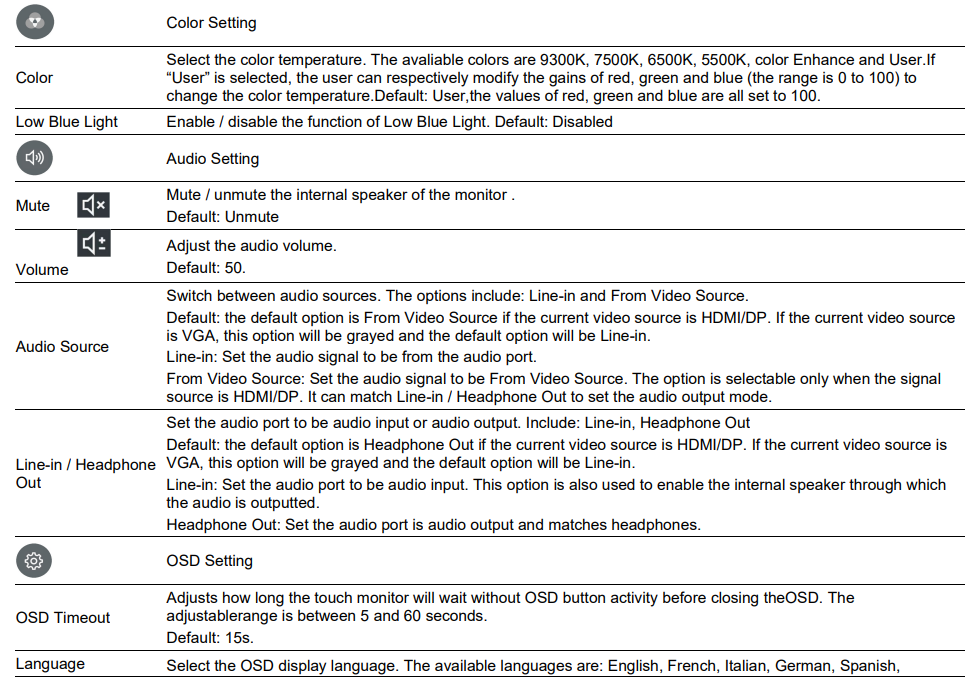

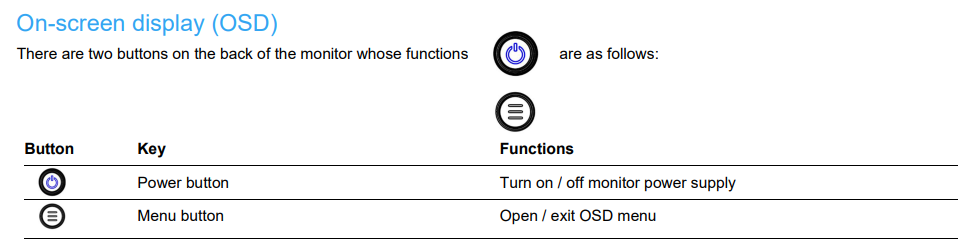

¿Dónde puedo encontrar información sobre el menú OSD de la serie 70?

Este artículo describe el menú OSD que está integrado en los monitores táctiles de la serie 70 (2270L, 2470L, 2770L)

Esta información también se puede encontrar en el Manual del Usuario de la Serie 70
