Bienvenido al soporte de Elo

Controladores, información del producto, respuestas técnicas y más.

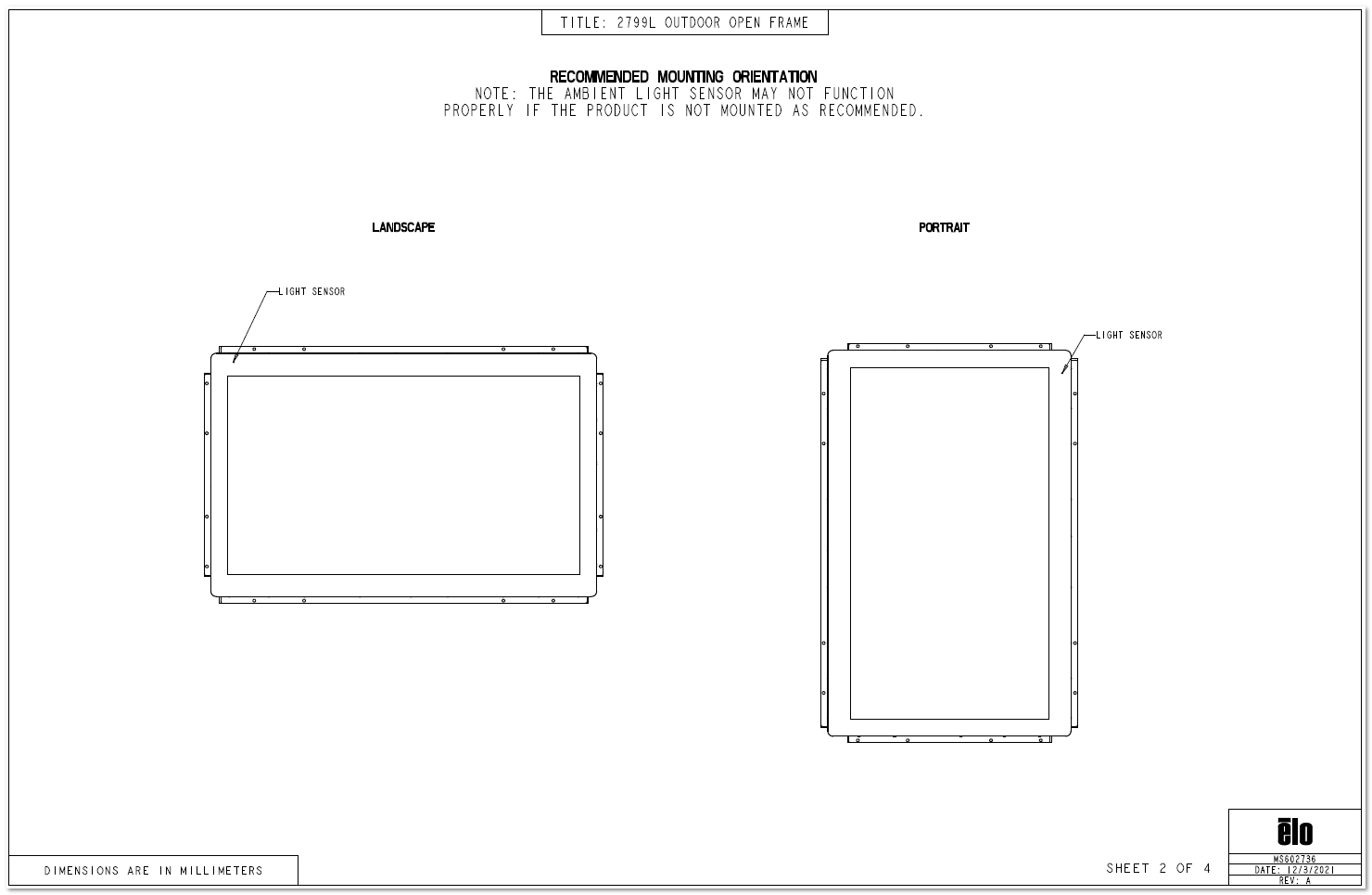

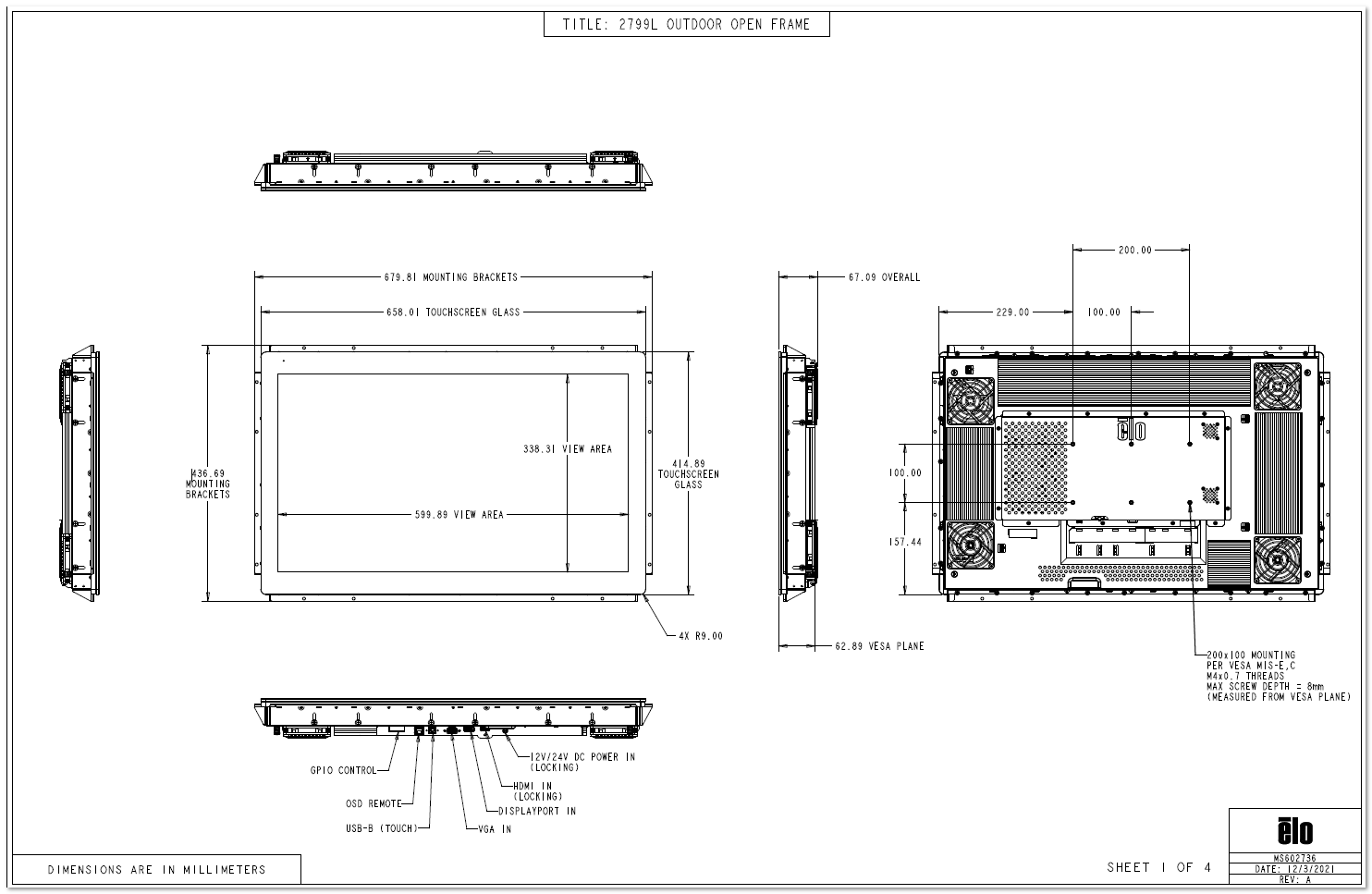

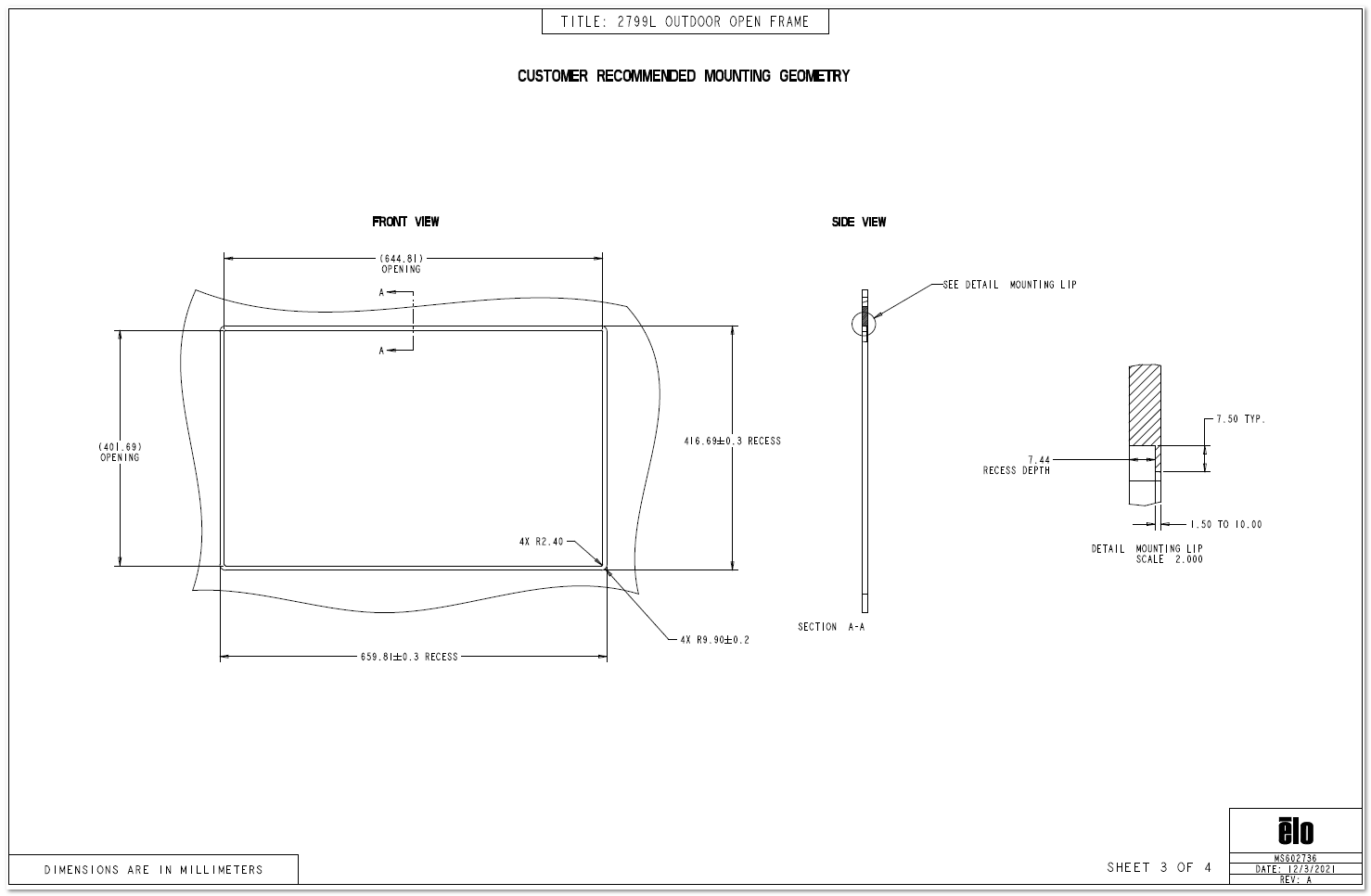

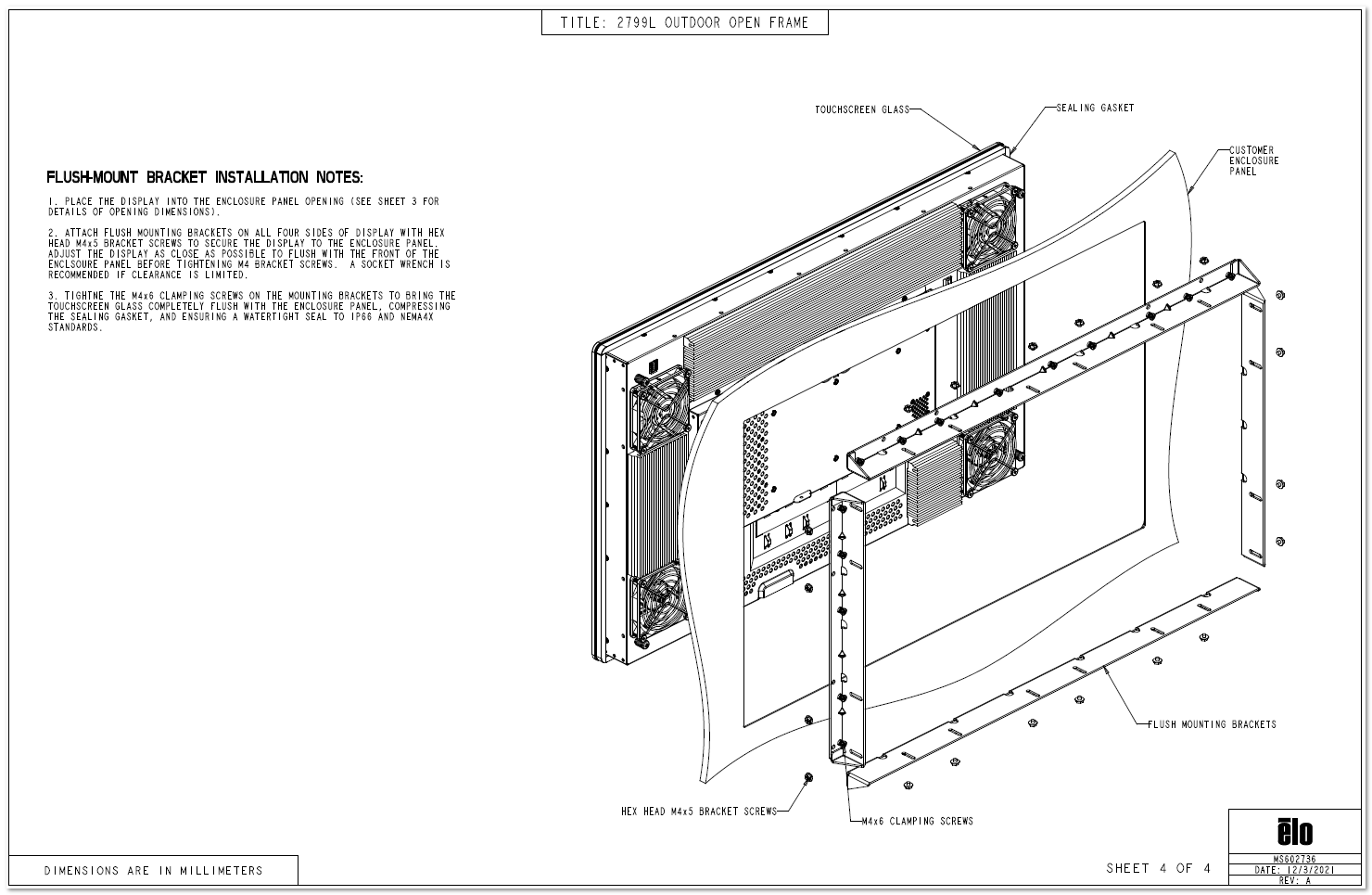

¿Dónde puedo encontrar dibujos dimensionale para el monitor 2799L Outdoor Open Frame?

Este artículo proporciona los dibujos dimensionales para el monitor 2799L Outdoor Open Frame

Dibujo:
