Bienvenido al soporte de Elo

Controladores, información del producto, respuestas técnicas y más.

¿Dónde puedo encontrar información sobre E553352, Kit de bisel delantero de 20 pulgadas de Elo?

Este artículo proporciona información para P/N: E553352, Kit de marco frontal de 20 pulgadas de Elo

Este kit de marco es compatible con monitores Elo ET2094 equipados con tecnologías IntelliTouch, AccuTouch y SecureTouch. Esto NO es compatible con el monitor equipado con PCAP.

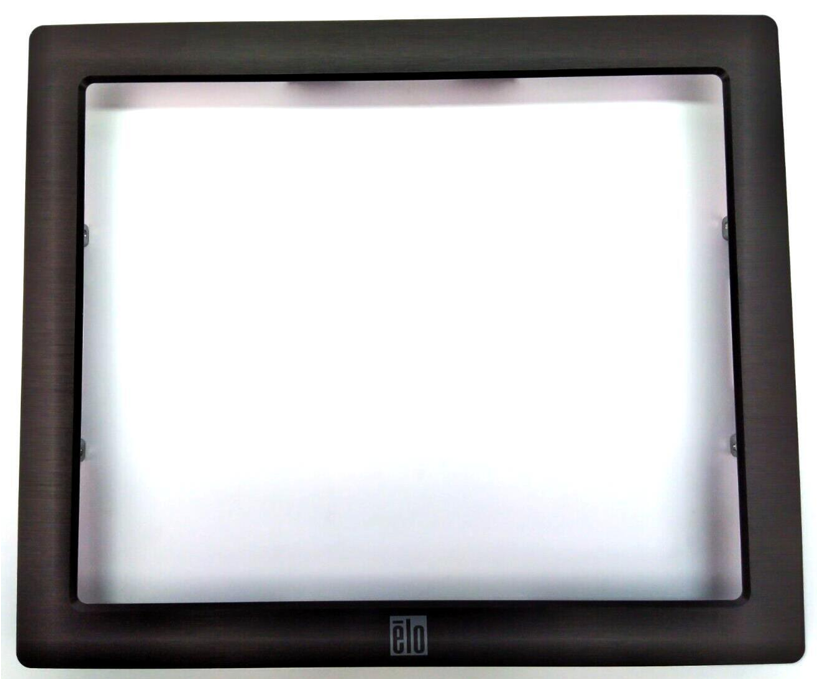

Foto:
(la foto mostrada es para el monitor de 19" con relación de aspecto estándar. El kit de marco para el 2094L será más ancho pero se verá muy parecido al de abajo)

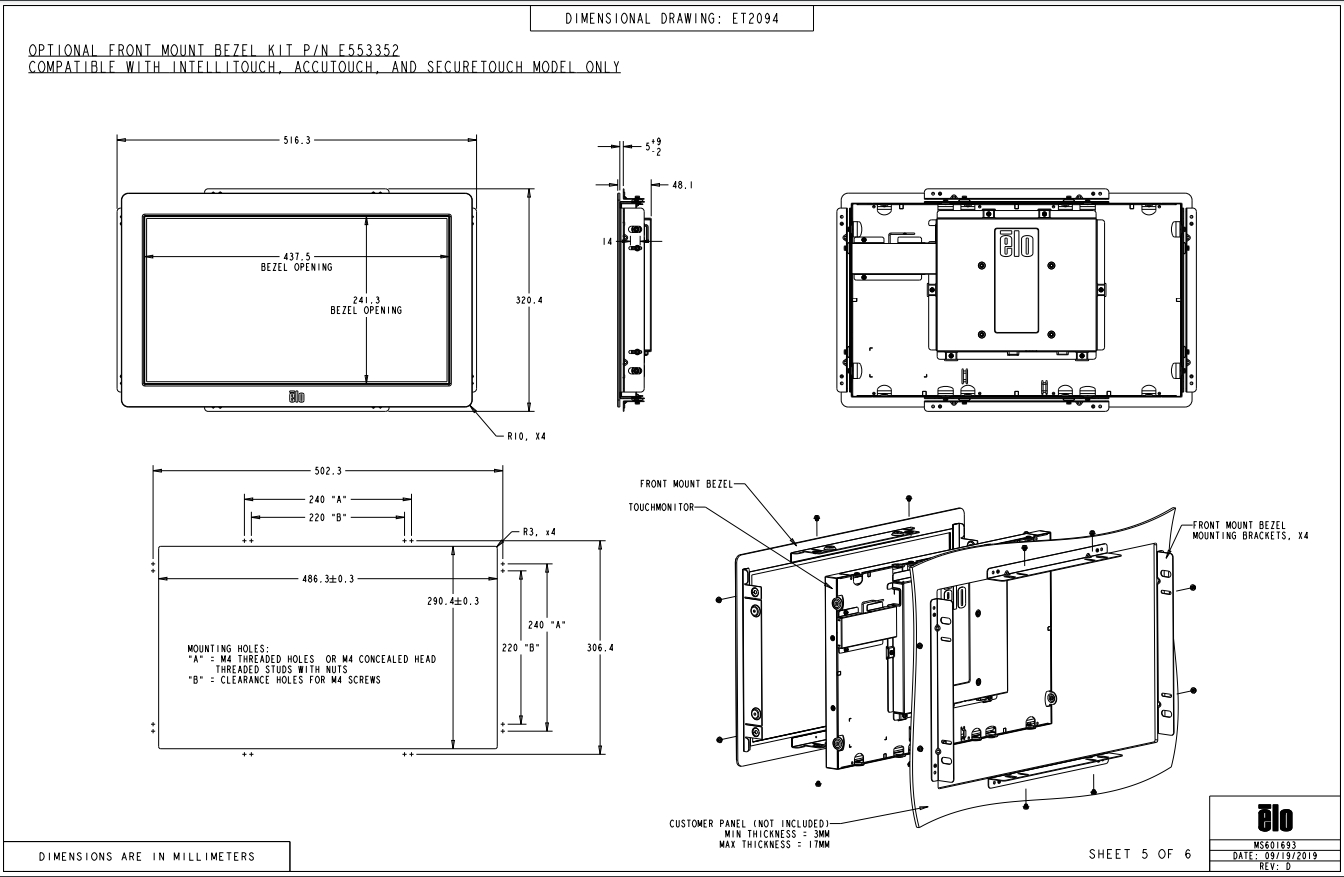

Dibujo
