Bienvenido al soporte de Elo

Controladores, información del producto, respuestas técnicas y más.

¿Dónde puedo encontrar dibujos dimensionales para el monitor 1099L Outdoor Open Frame?

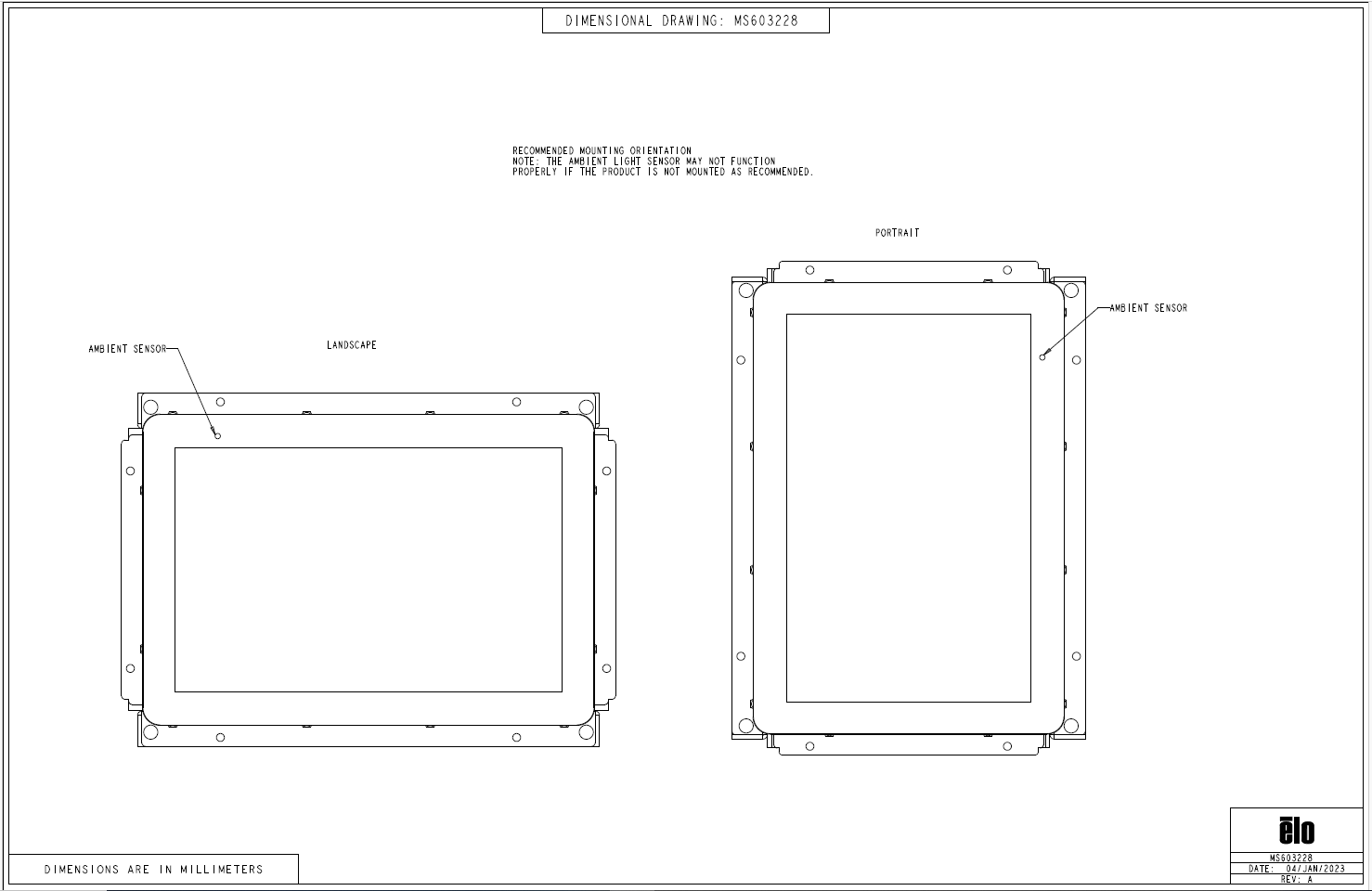

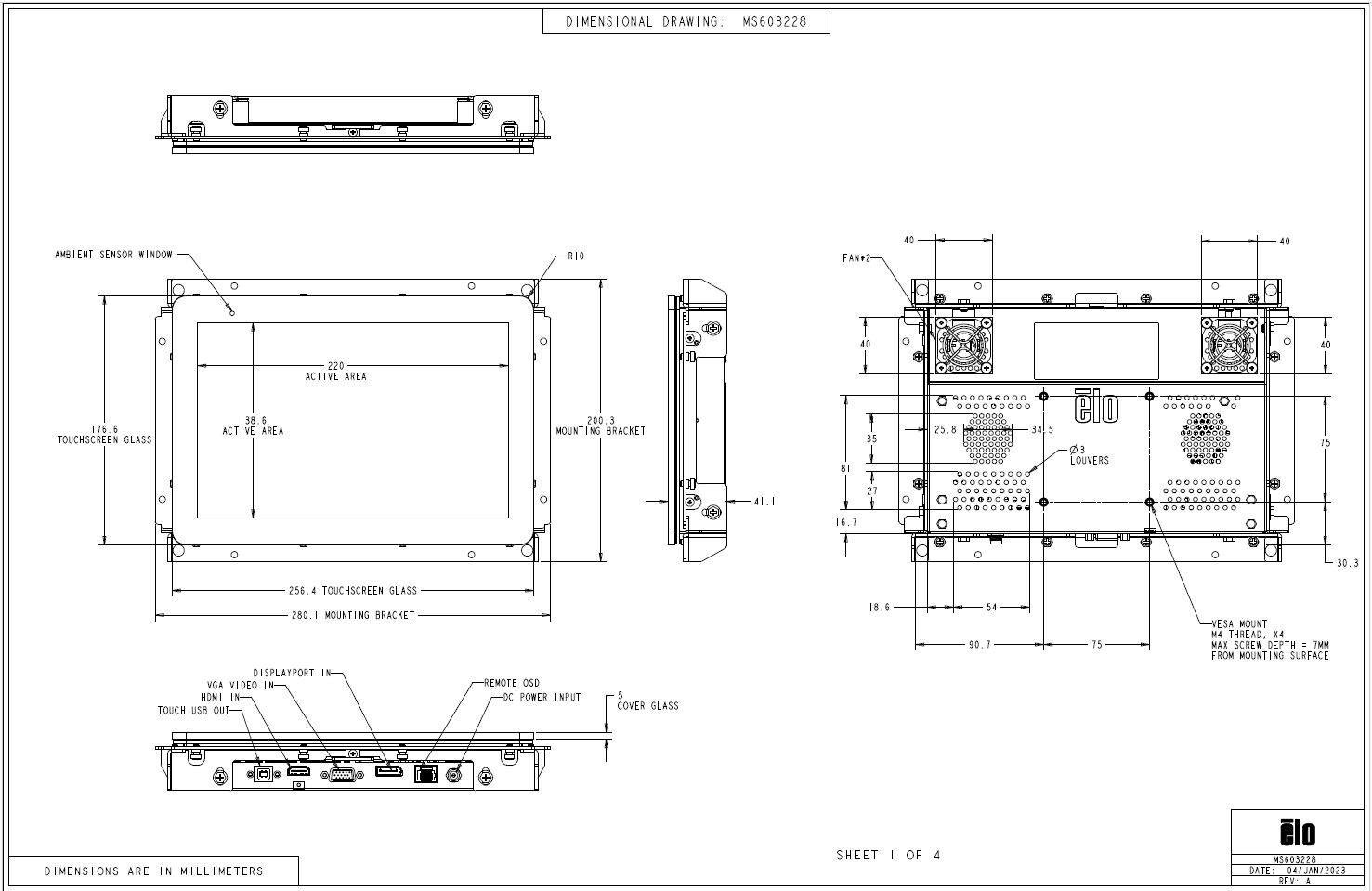

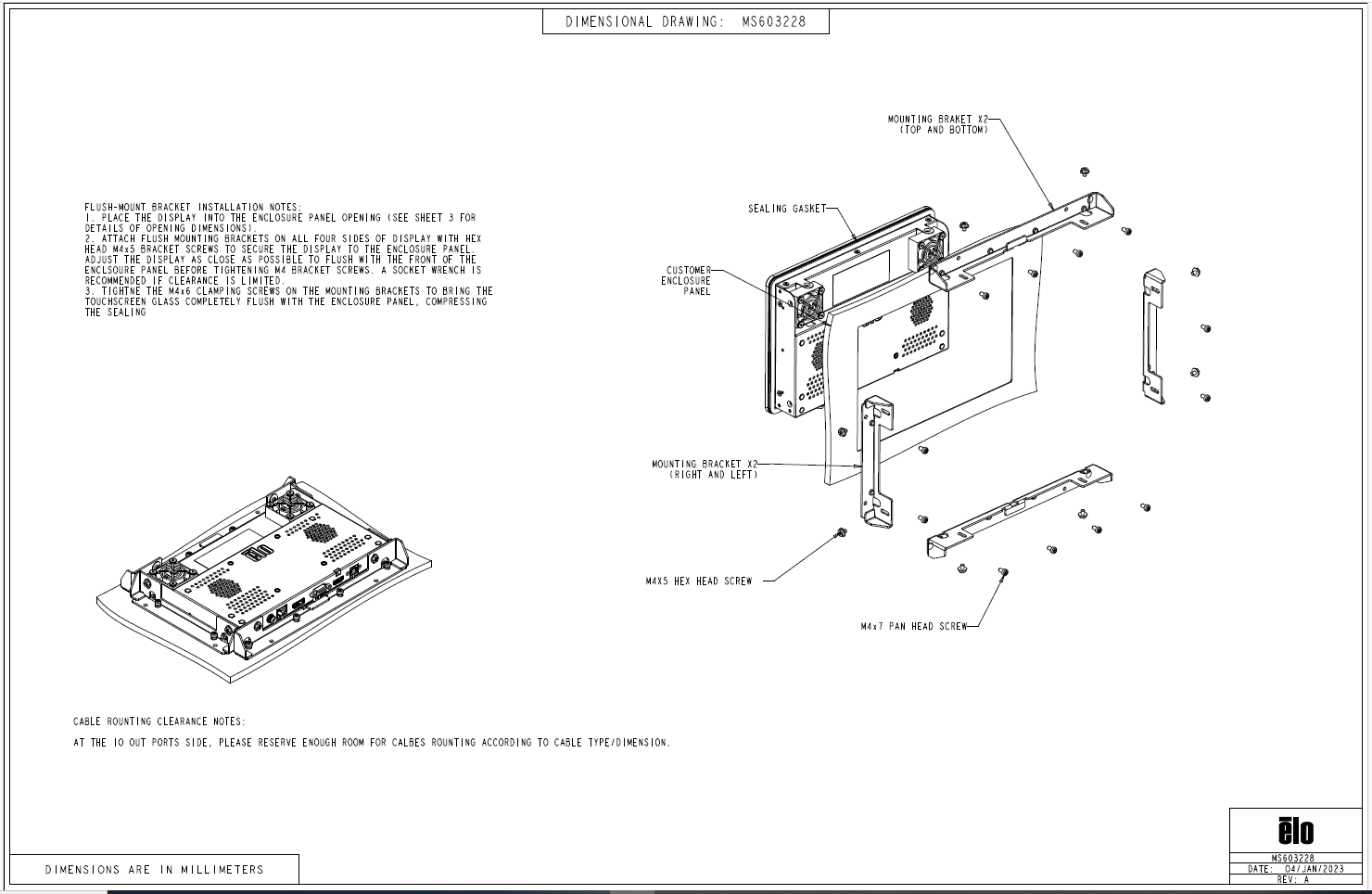

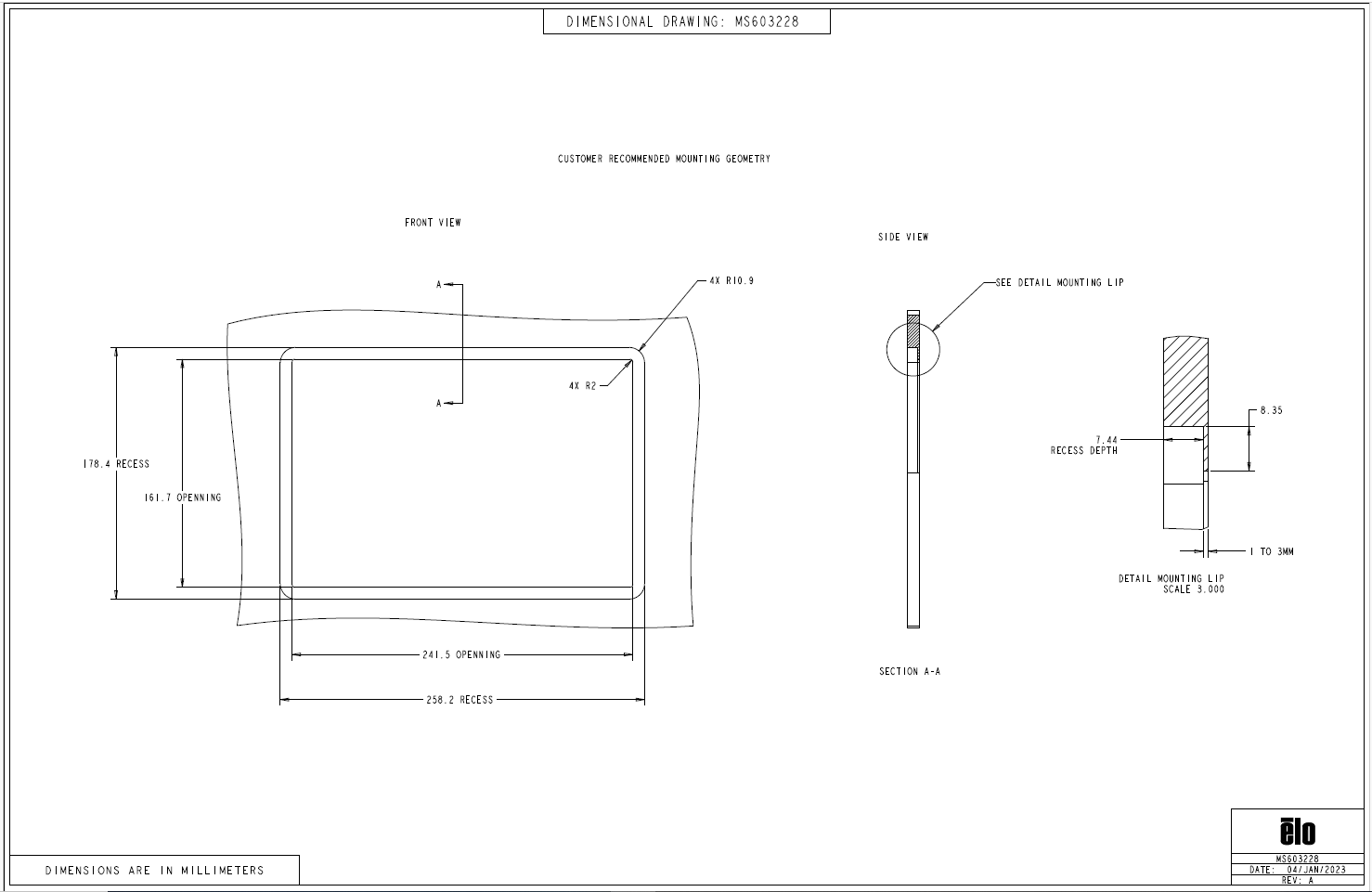

Este artículo proporciona los dibujos dimensionales del monitor táctil ET1099L Outdoor Open Frame

Además, encuentre los dibujos adjuntos a este artículo.
