Où puis-je trouver le schéma de brochage du câble RJ45 vers DB9 pour les unités EloPOS ?

Cet article décrit le branchement pour le câble RJ45 à DB9 qui est inclus dans la boîte avec les unités EloPOS

Description de la pièce : 5K.47T20.501 : CÂBLE RJ45-RS232 900MM EA15PA0-1

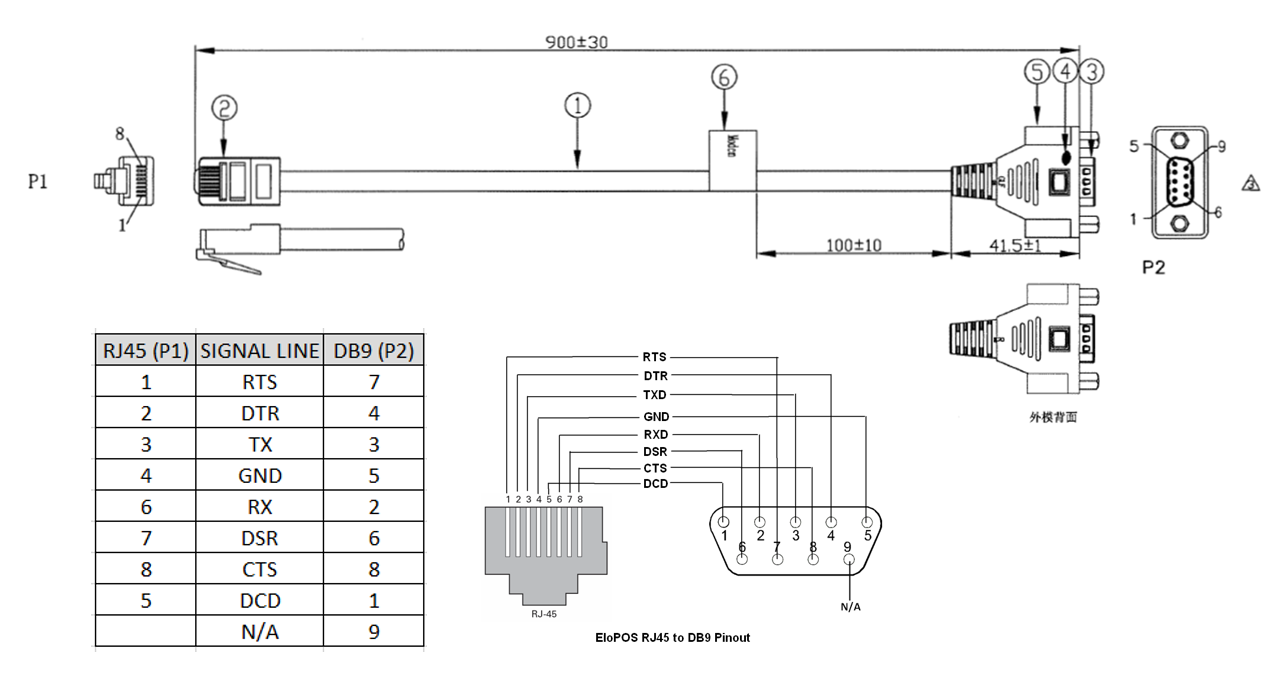

Branchement EloPOS RJ45 à DB9

ELOPOS RJ45 TO DB9 PINOUT-BC.PNG
