Où puis-je trouver le brochage du câble E196292, X-Series RS232 vers DB9 ?

Cet article contient le brochage pour le câble E196292, série X RS232 à DB9



Ci-dessous se trouvent le schéma et les brochages pour P/N : E196292, câble RS232 à DB9, série X.

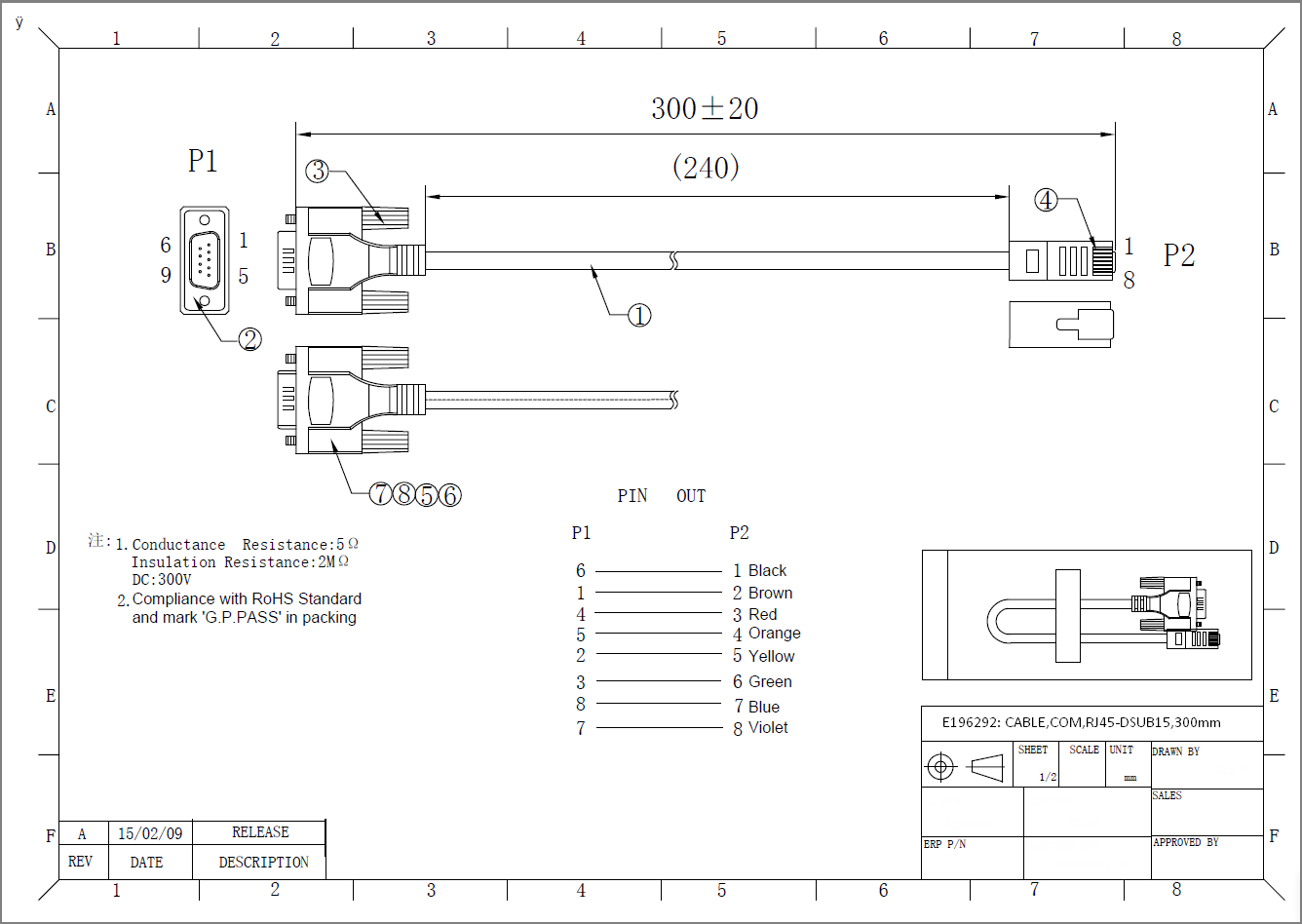

E196292 CABLE,COM,RJ45-DSUB15,300mm.png

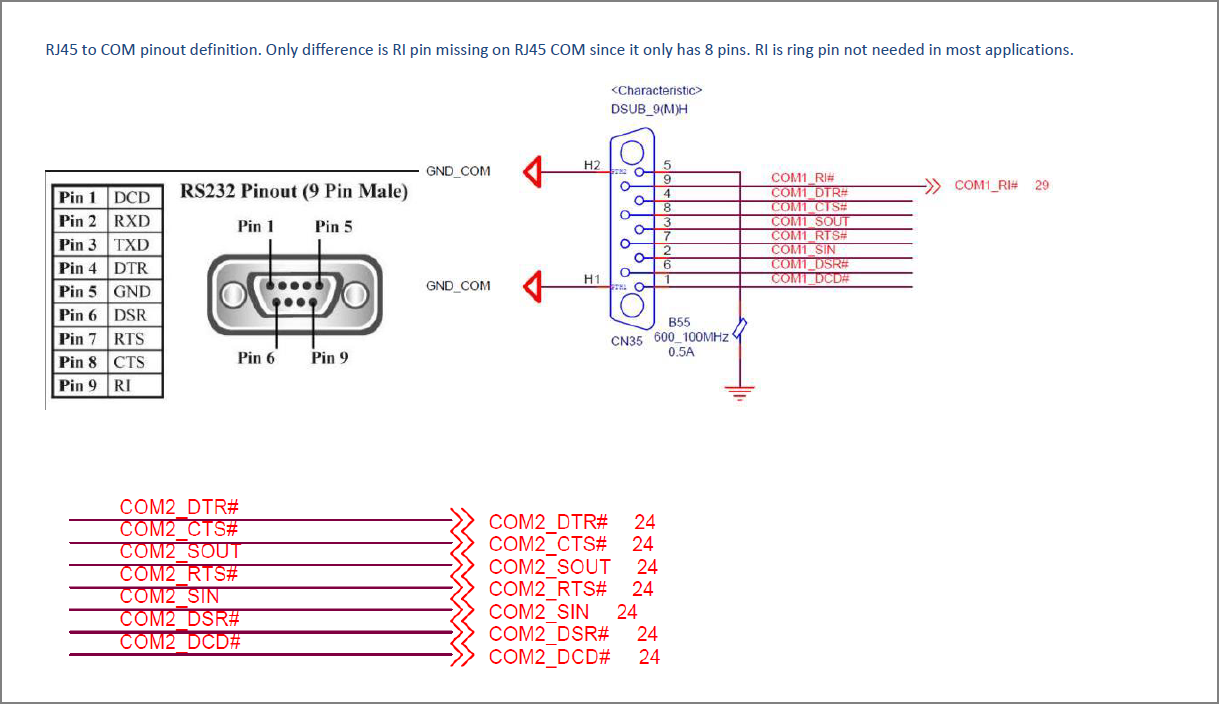

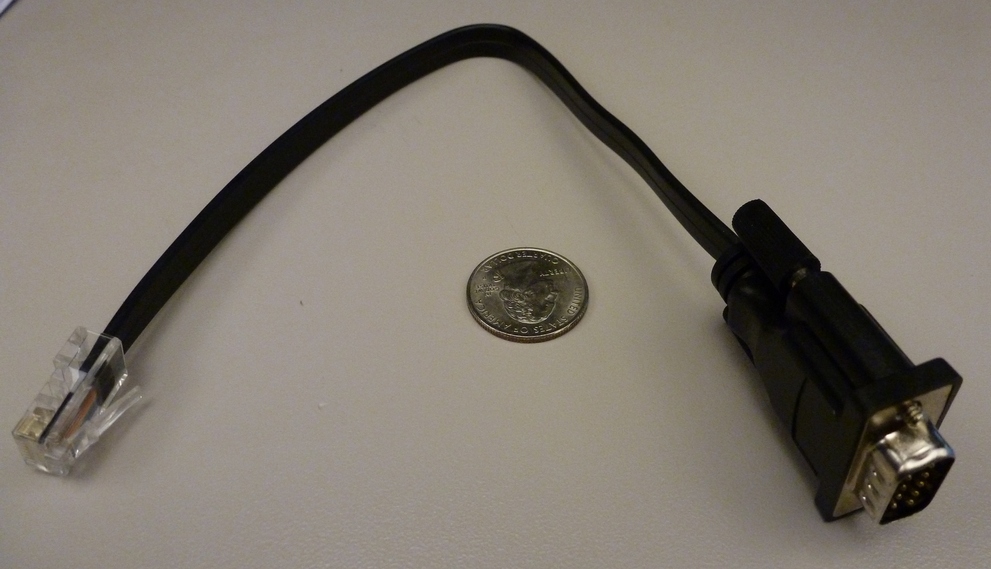

E196292 CABLE,COM,RJ45-DSUB15,300mm_2.pngE259086_RJ45_DB9_Cable.jpg
