Bienvenue dans le support Elo

Pilotes, informations sur les produits, réponses techniques et plus encore.

Quelles sont les différences entre le câble EloPOS DB9 vers RJ45 et le câble X-Series DB9 vers RJ45 ?

Cet article contient des informations concernant les différences entre le câble EloPOS DB9 vers RJ45 et le câble X-Series DB9 vers RJ45

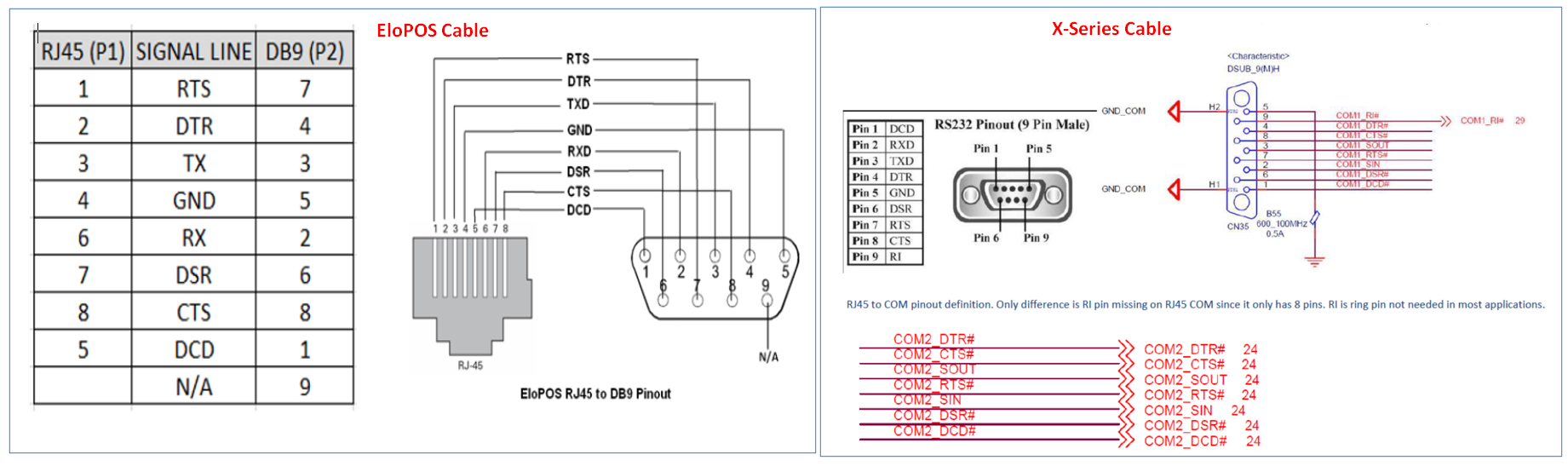

Ci-dessous, les différences de brochage entre le câble EloPOS DB9 vers RJ45 et le câble X-Series DB9 vers RJ45. Ces deux câbles NE SONT PAS interchangeables.

Voir les spécifications complètes de ces câbles dans les articles ci-dessous :
