Où puis-je trouver des informations sur E075614, câble Y USB pour 0700L (Obsolète) ?

Cet article fournit plus d'informations sur le P/N Elo : E075614, câble Y USB pour moniteur 0700L

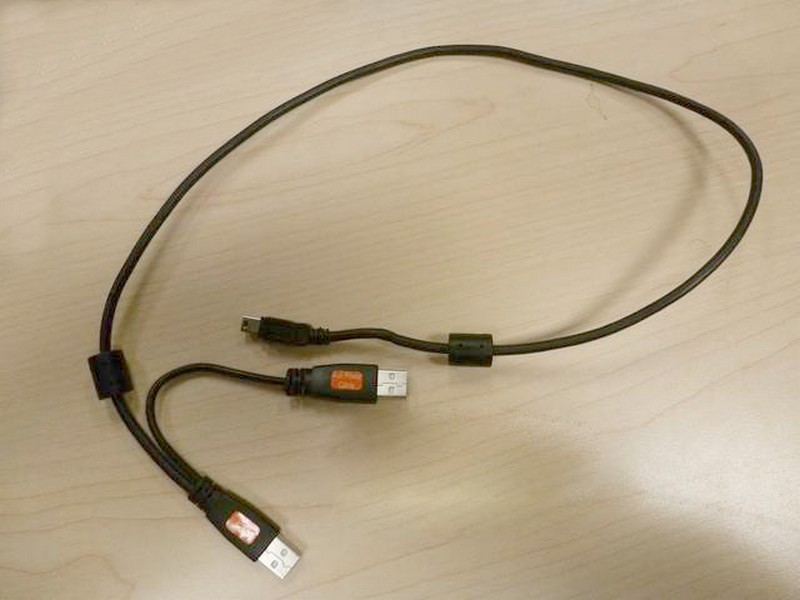

Ci-dessous des informations sur le P/N Elo : E075614, câble Y USB de 8 pieds pour moniteur 0700L (actuellement obsolète)

Numéro de pièce & Description

  • E075614 : CAB-USB-XT-8.2FT-R
  • CAB-KIT-2.5 mètres câble Y pour le 0700L
  • Remarque : Le connecteur final qui se branche sur le 0700L est Mini-USB

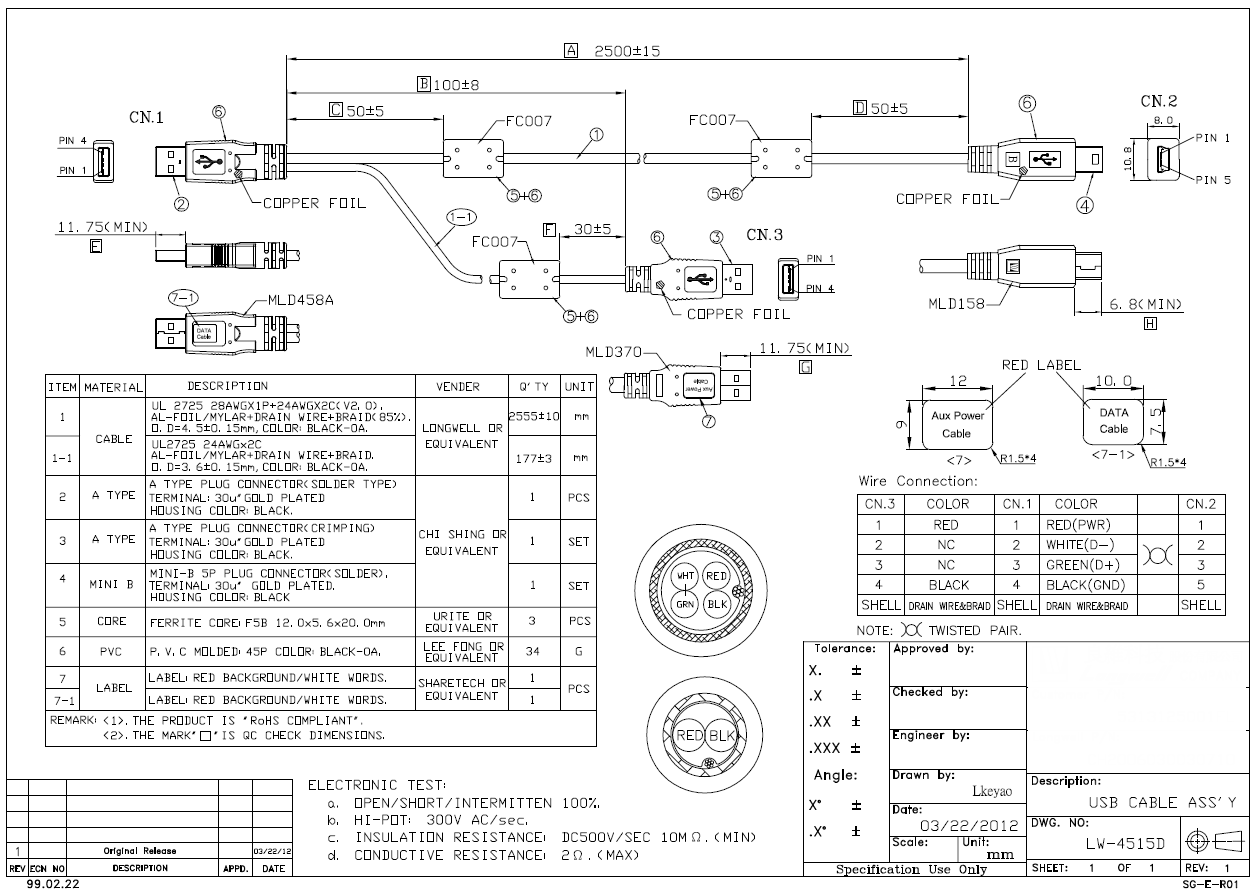

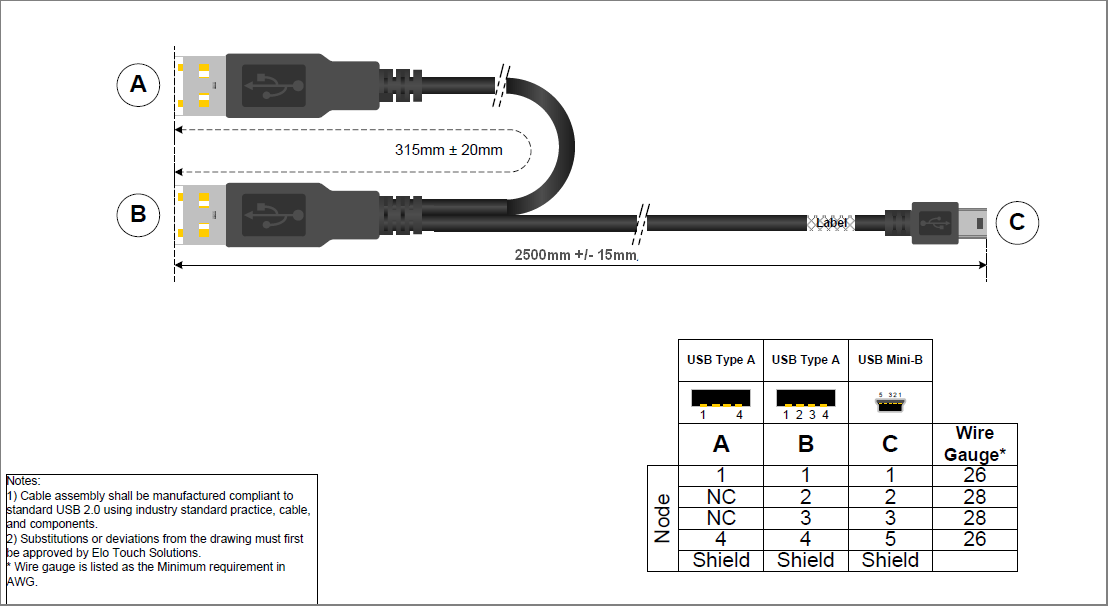

Dessin
