Où puis-je trouver les dessins dimensionnels pour le kit de montage mural E143088 ?

Cet article fournit les dessins dimensionnels pour le Kit de Montage Mural E143088

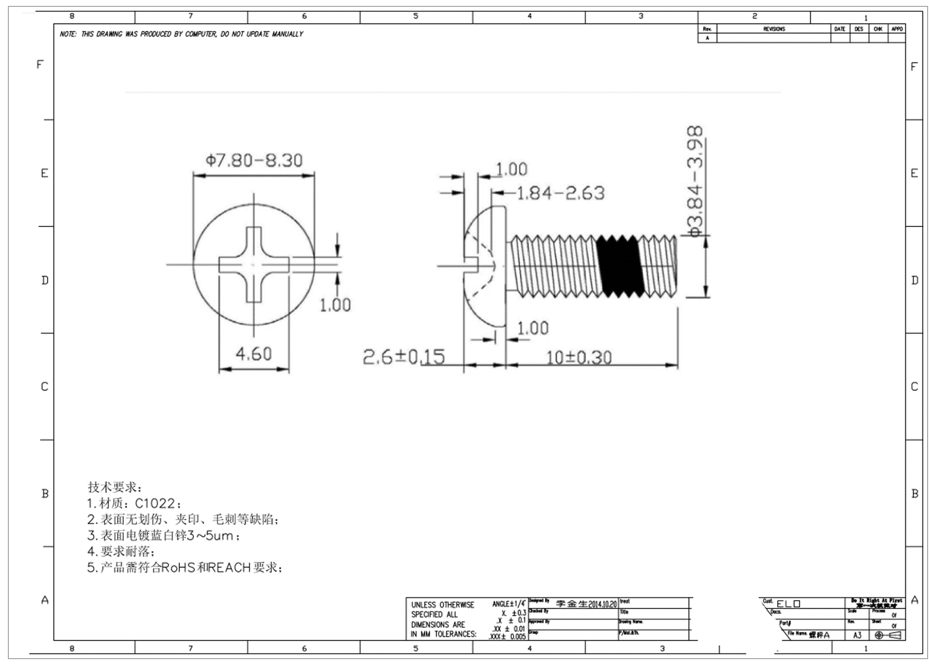

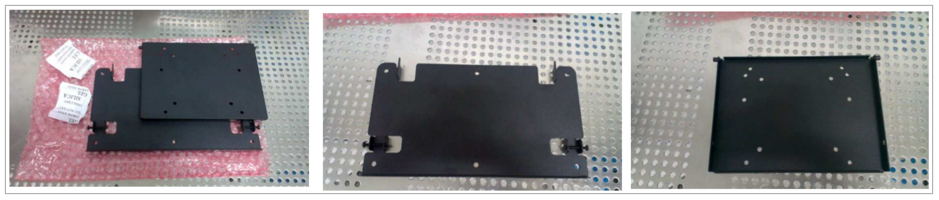

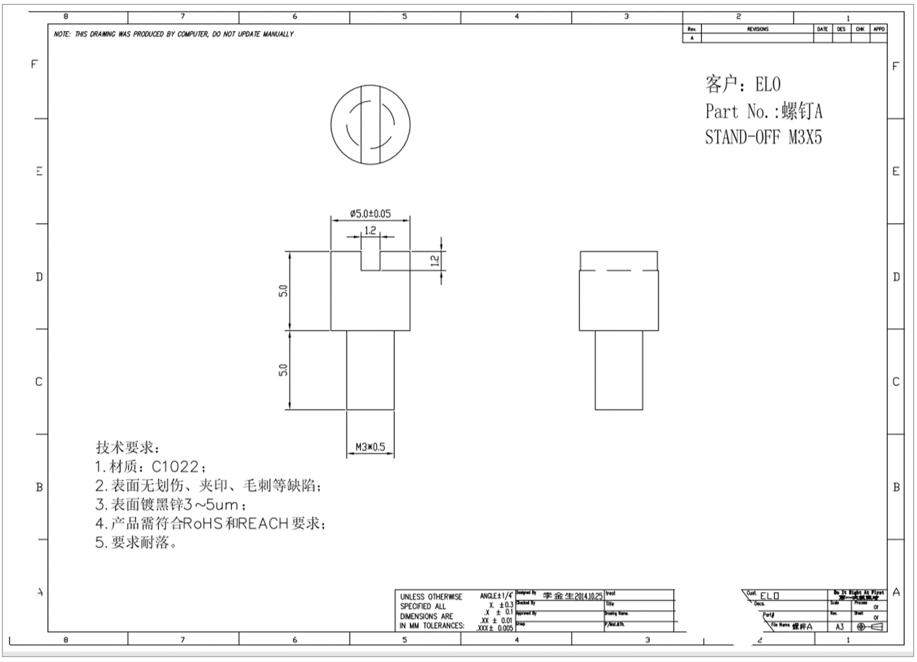

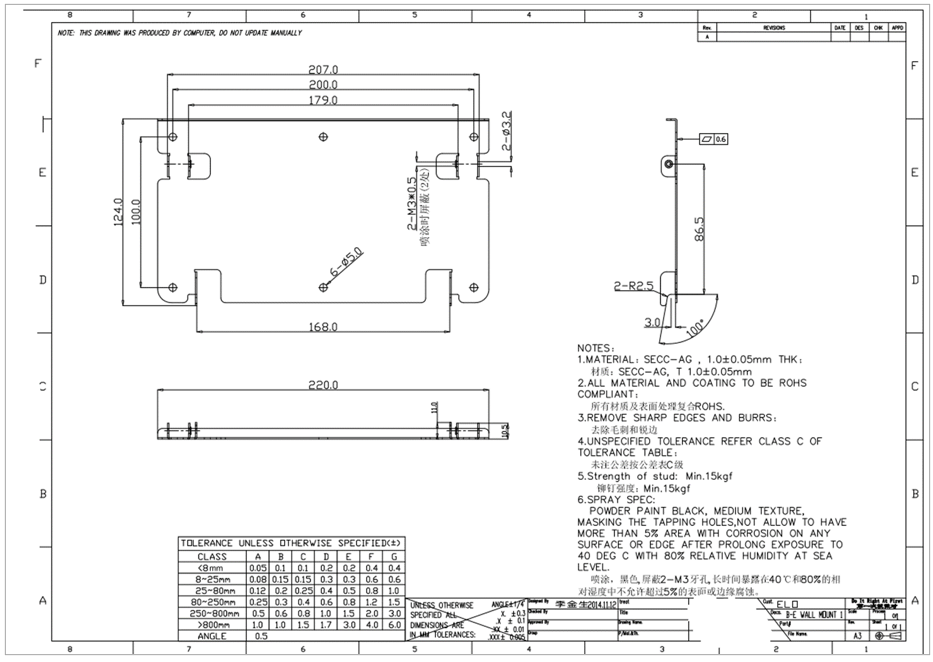

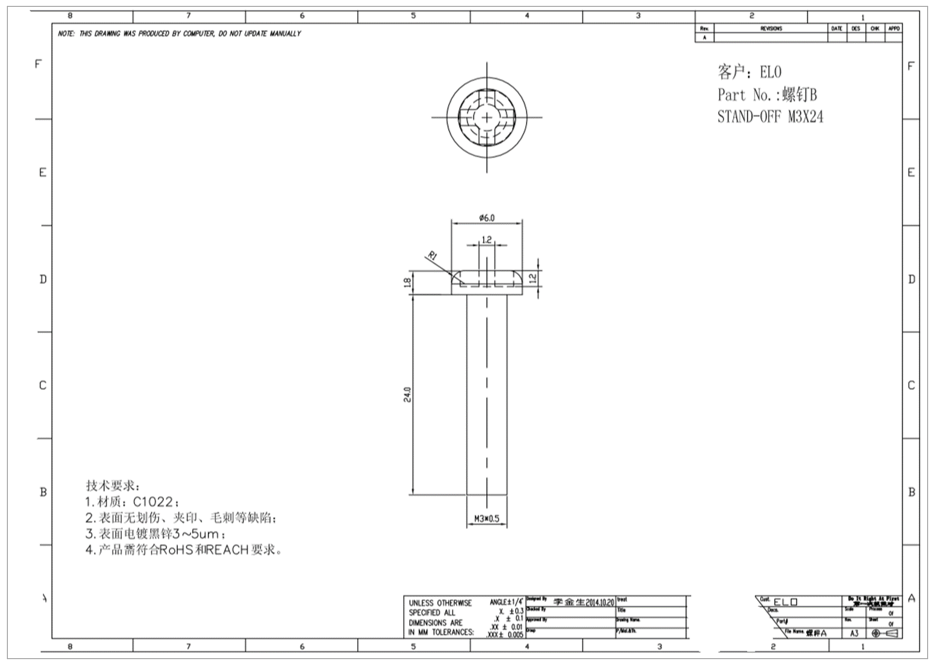

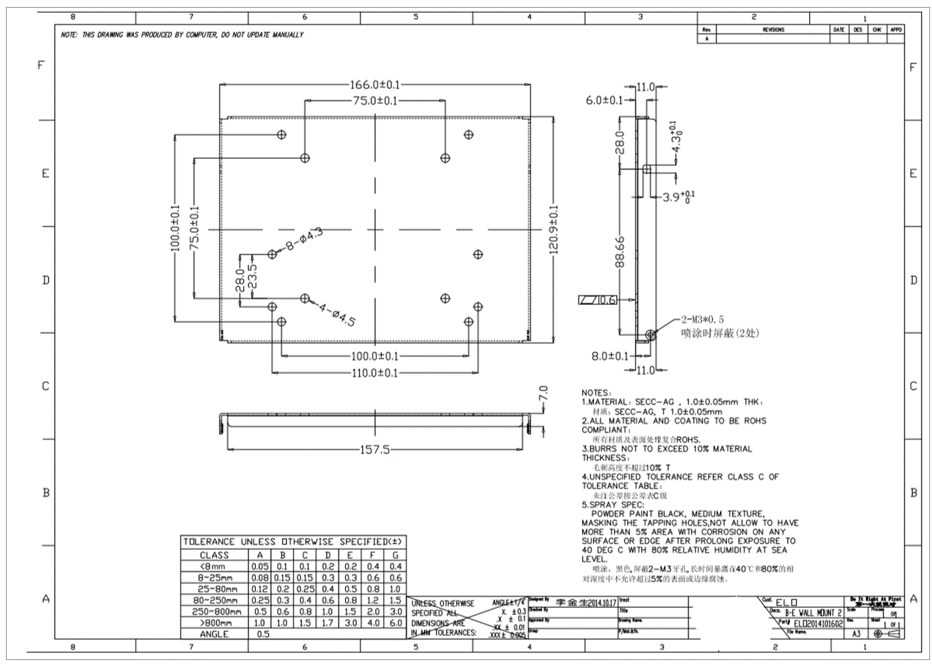

Voir ci-dessous les dessins dimensionnels du Kit de Montage Mural E143088 pour les ordinateurs tout-en-un tactiles basés sur Intel-Windows de la série E-I-X.




Téléchargez le package .pdf des dessins ci-dessus ici .
