Benvenuto nel Supporto Elo

Driver, informazioni sui prodotti, risposte tecniche e altro ancora.

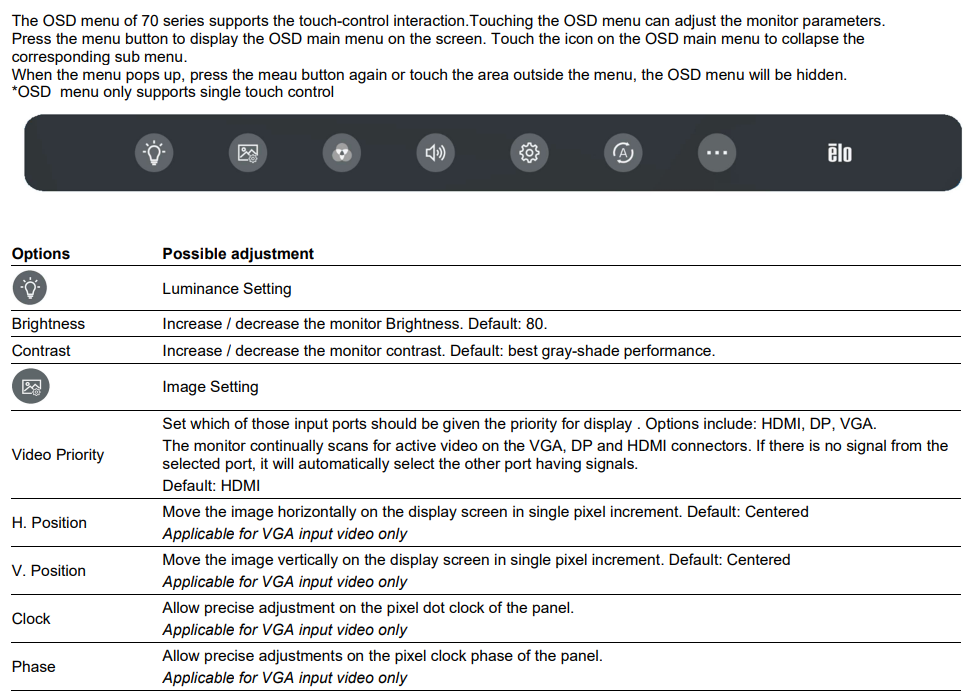

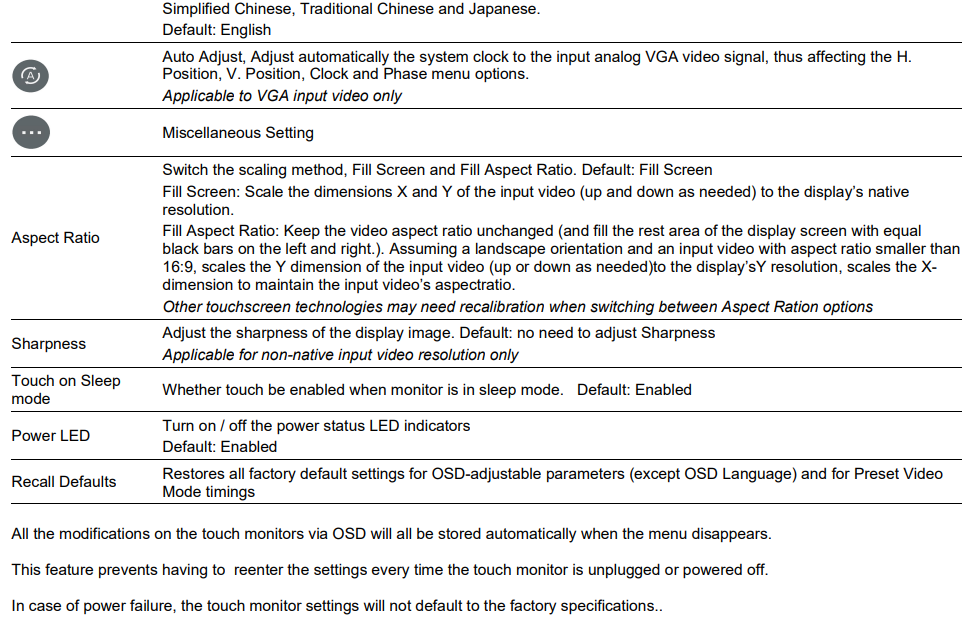

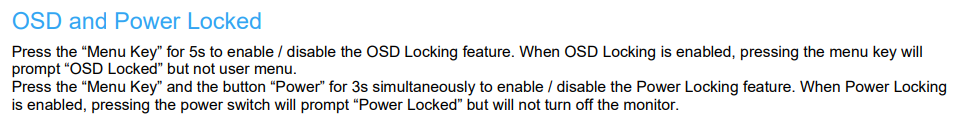

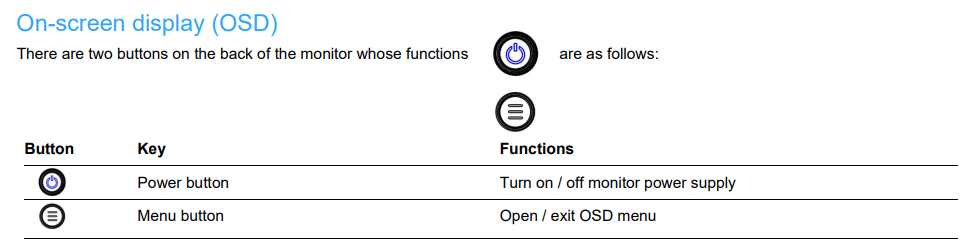

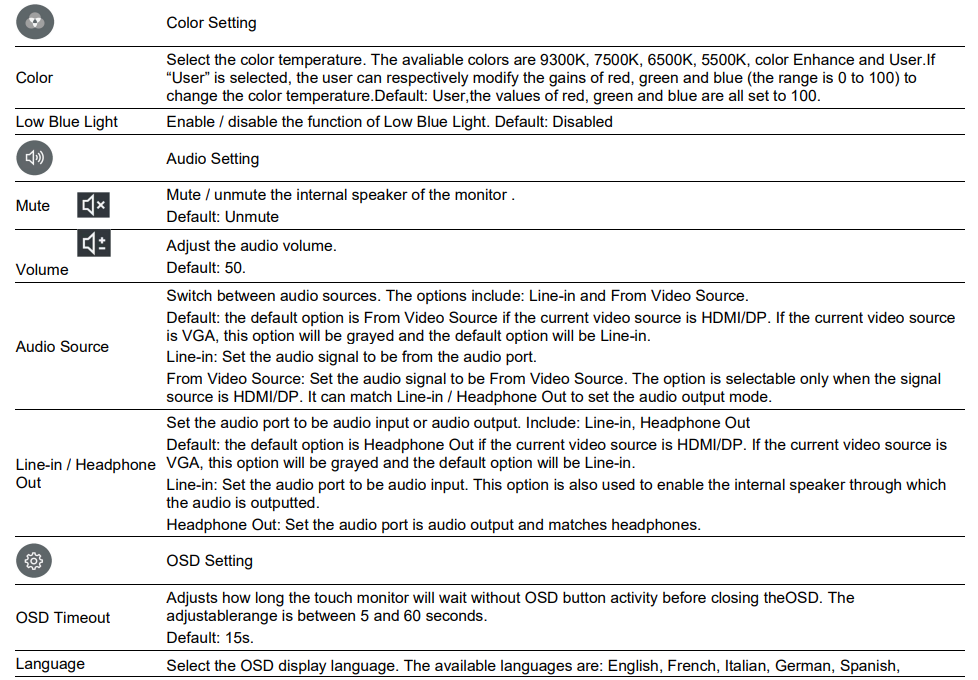

Dove posso trovare informazioni sul menu OSD della serie 70?

Questo articolo descrive il menu OSD integrato nei touch monitor della serie 70 (2270L, 2470L, 2770L)

Queste informazioni possono essere trovate anche nel Manuale Utente della Serie 70


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
