EloディスプレイモジュールのLVDSコネクタのピンアウトはどこで見つけられますか？

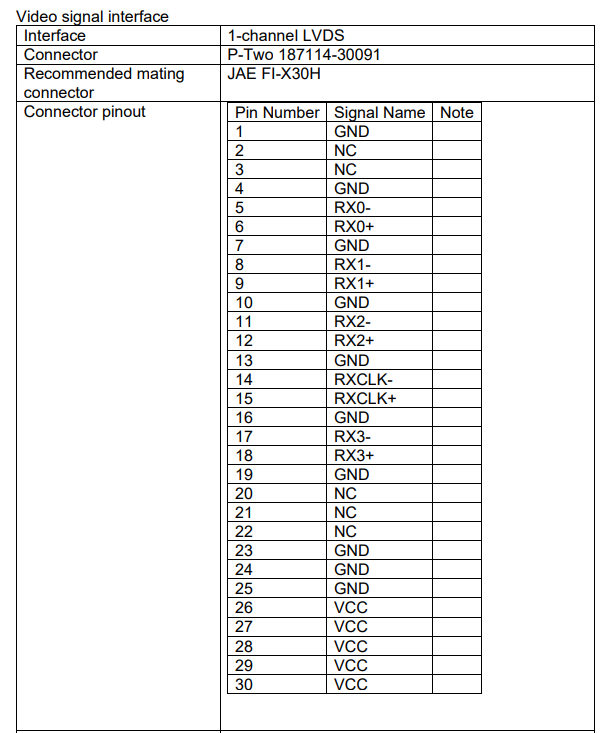

この記事は、Elo 15.6インチディスプレイモジュールのLVDSコネクタのピン配置を示します。P/N:E270963



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
