Elo 7インチディスプレイモジュールのLVDSコネクタのピンアウトはどこにありますか？

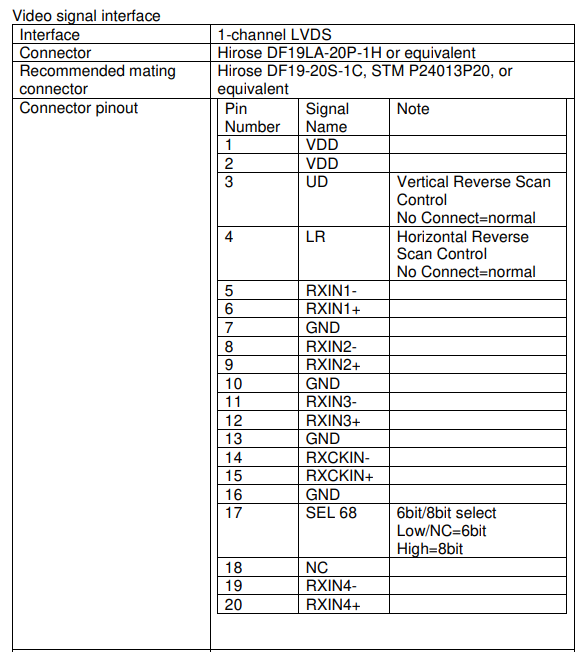

この記事は、7インチEloディスプレイモジュールのLVDSコネクタのピン配置を示しています。P/N:E271156



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
