Elo 기술 지원에 오신 것을 환영합니다

드라이버, 제품 정보, 기술 문의 답변 등.

X-Series용 P/N: E038989 후면 폴 마운트에 대한 정보를 어디에서 찾을 수 있나요?

이 문서는 X-Series에 대한 P/N: E038989 후면 폴 마운트에 대한 정보를 제공합니다.

아래는 Elo P/N: E038989 X-Series AIO TouchComputer용 후면 폴 마운트에 대한 정보입니다.

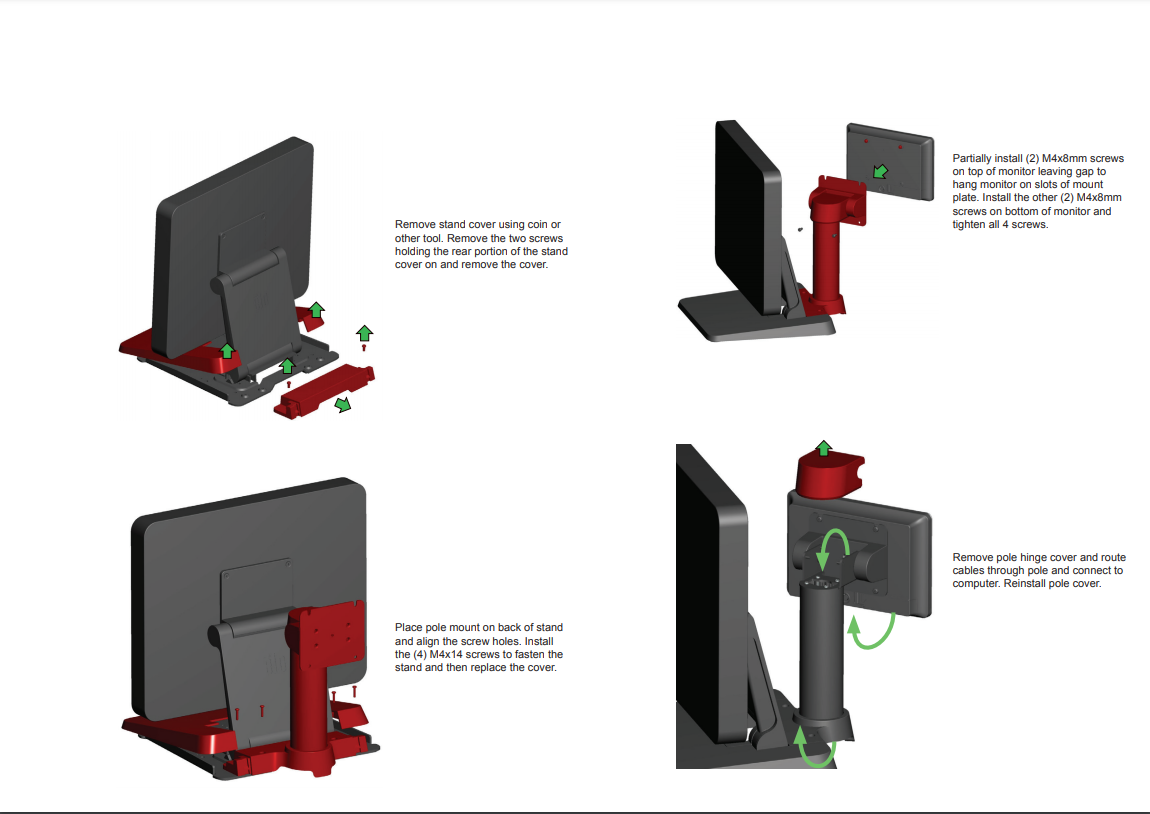

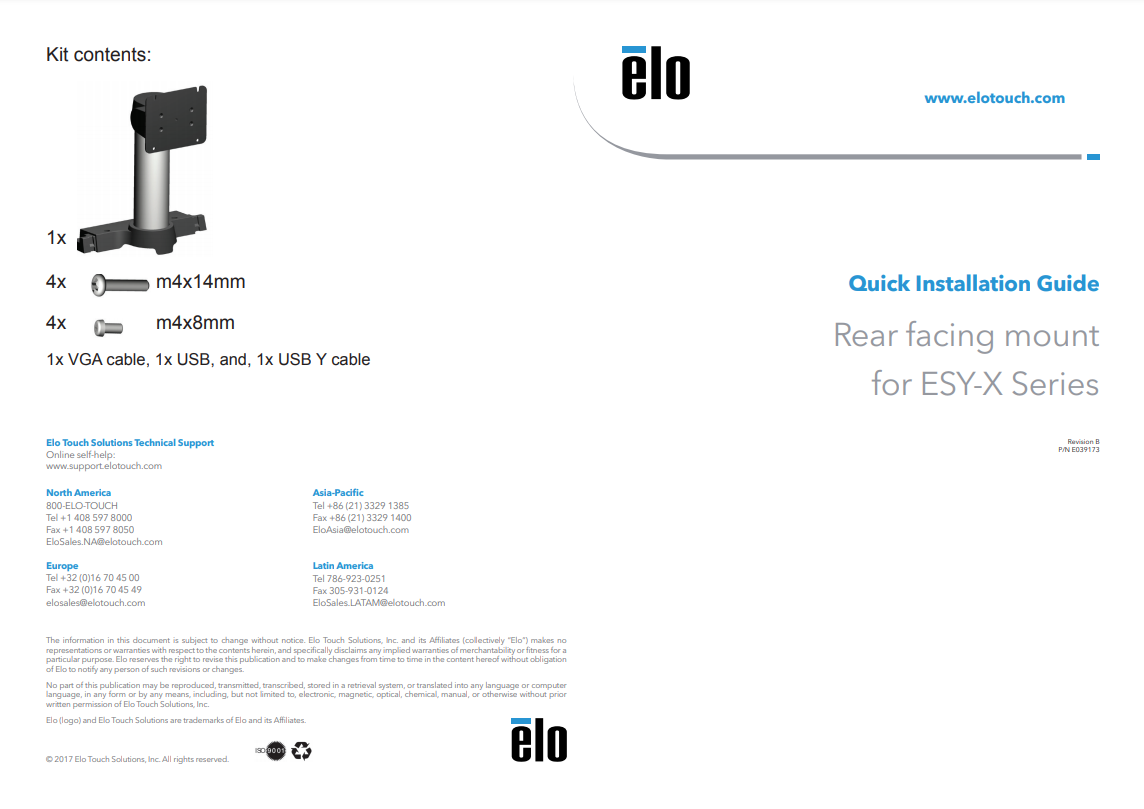

빠른 설치 가이드:

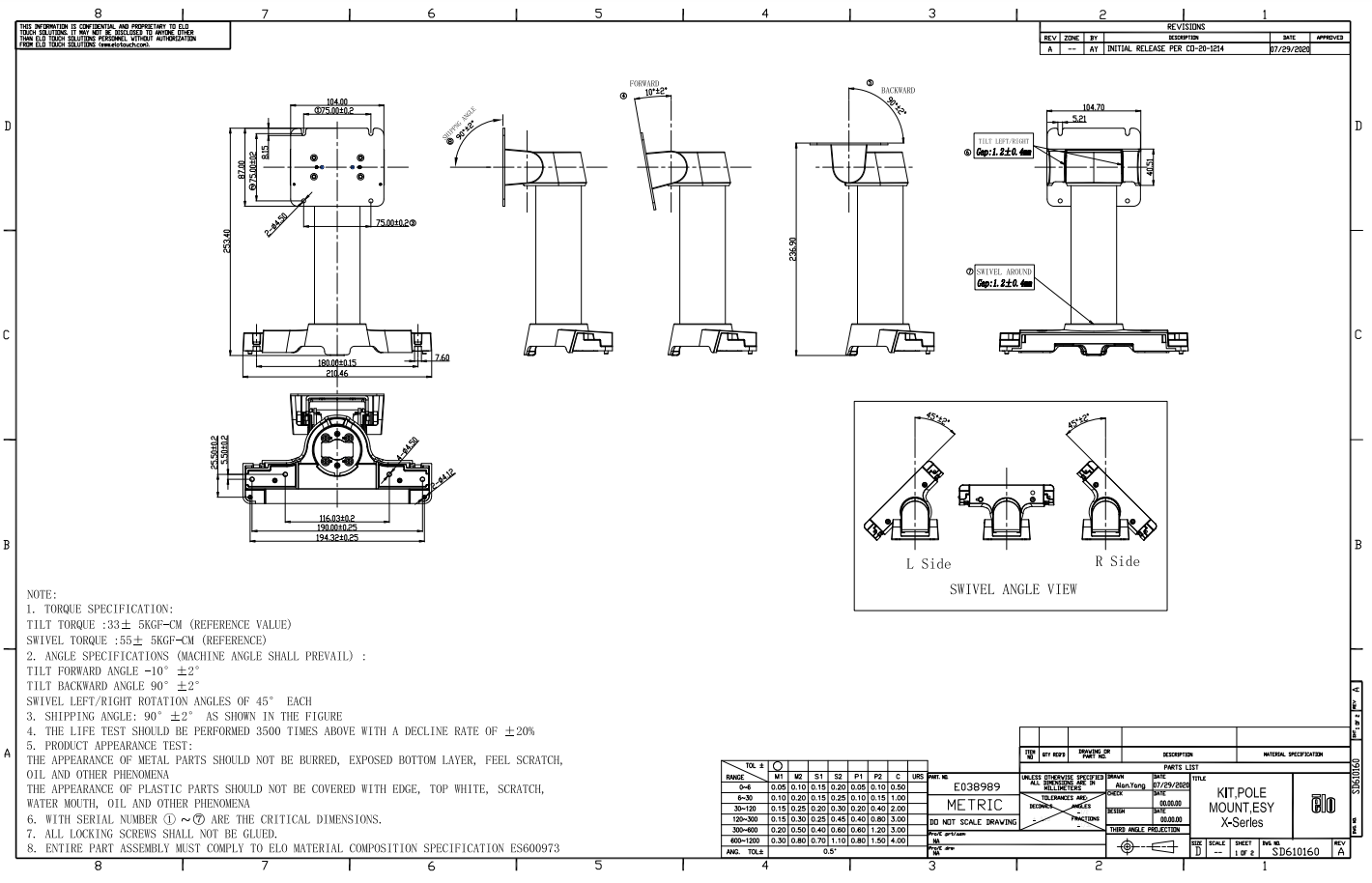

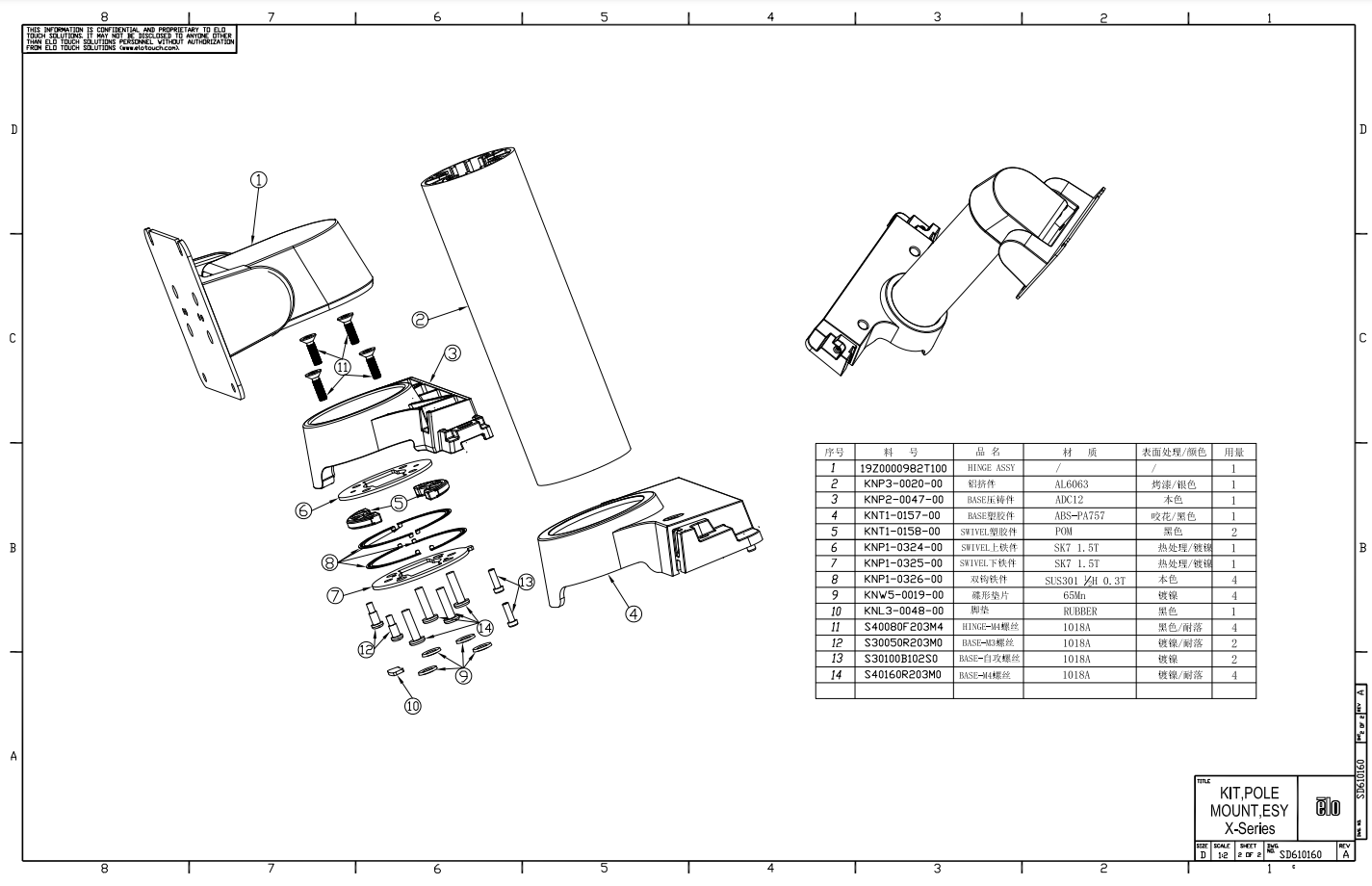

치수 도면:

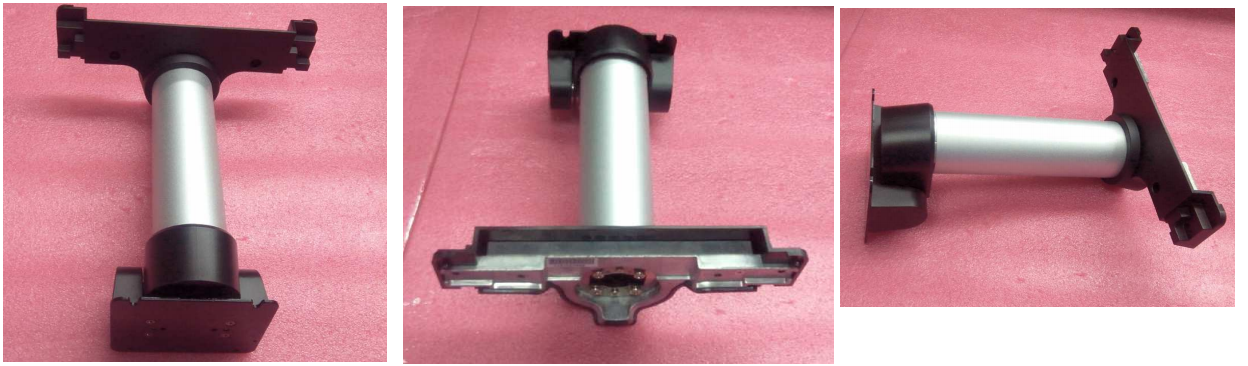

사진:


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
