E047458, 6인치 기둥 장착 키트 치수 도면은 어디에서 찾을 수 있나요?

이 문서에서는 E047458, 6인치 폴 마운트 키트 치수 도면을 이미지로 제공합니다

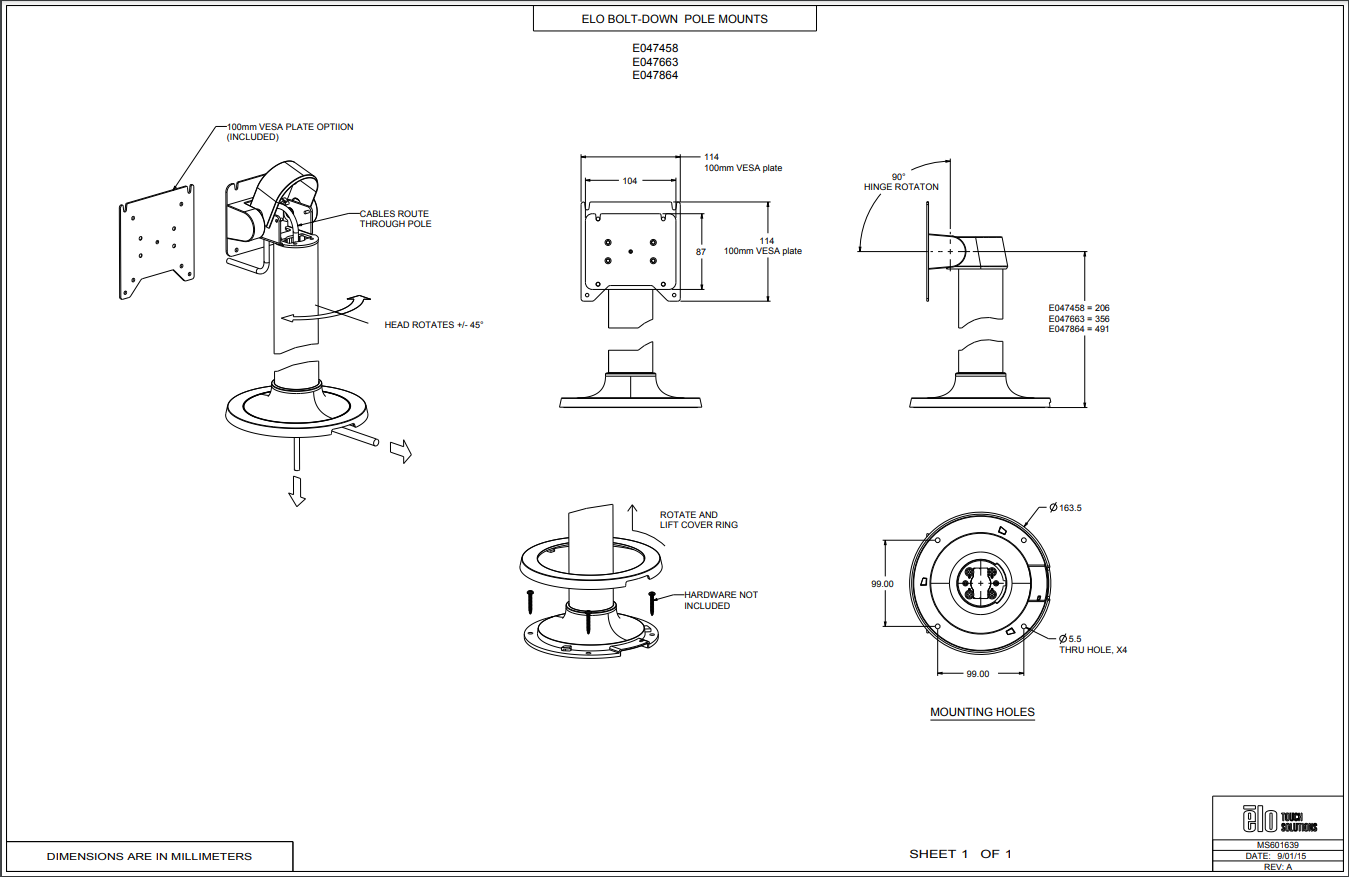

E047458, 6인치 폴 마운트 키트 치수 도면

아래 도면은 Elo 웹사이트에서도 확인할 수 있습니다 여기

CAD 도면 요청 여기

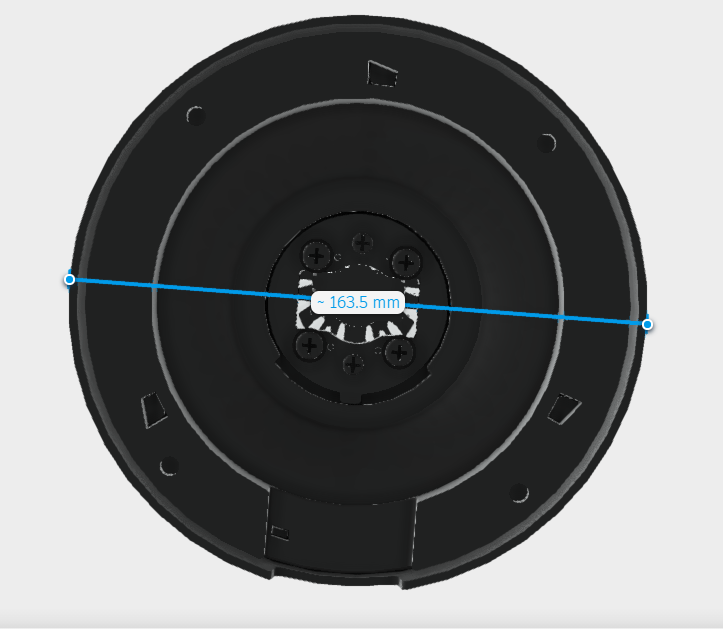

아래는 스탠드의 바닥 직경 측정 = 163.5mm를 보여줍니다
