Elo 기술 지원에 오신 것을 환영합니다

드라이버, 제품 정보, 기술 문의 답변 등.

Elo 10인치 디스플레이 모듈의 LVDS 커넥터 핀 배치를 어디에서 찾을 수 있나요?

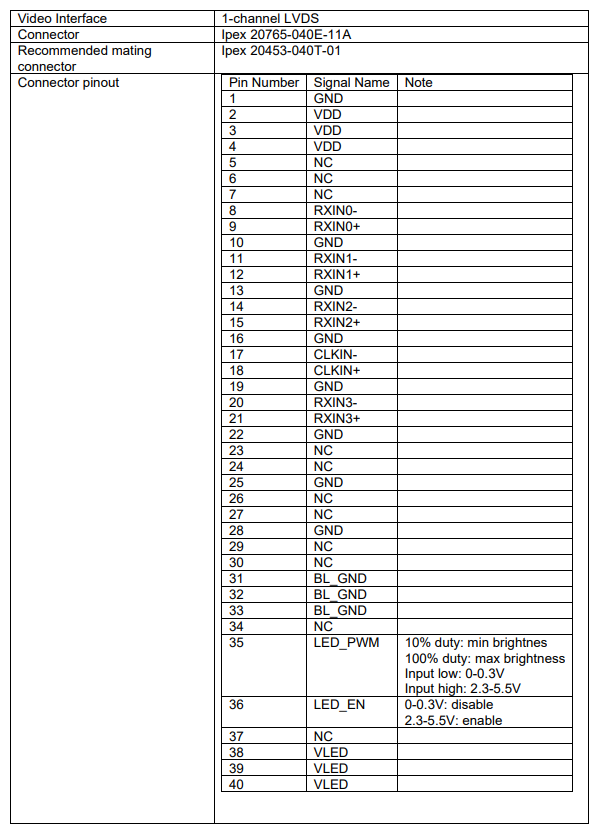

이 기사는 Elo 10.1인치 디스플레이 모듈 LVDS 커넥터의 핀 배열을 보여줍니다, P/N:E270763



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
