Elo 디스플레이 모듈의 LVDS 커넥터 핀 배치 정보를 어디에서 찾을 수 있나요?

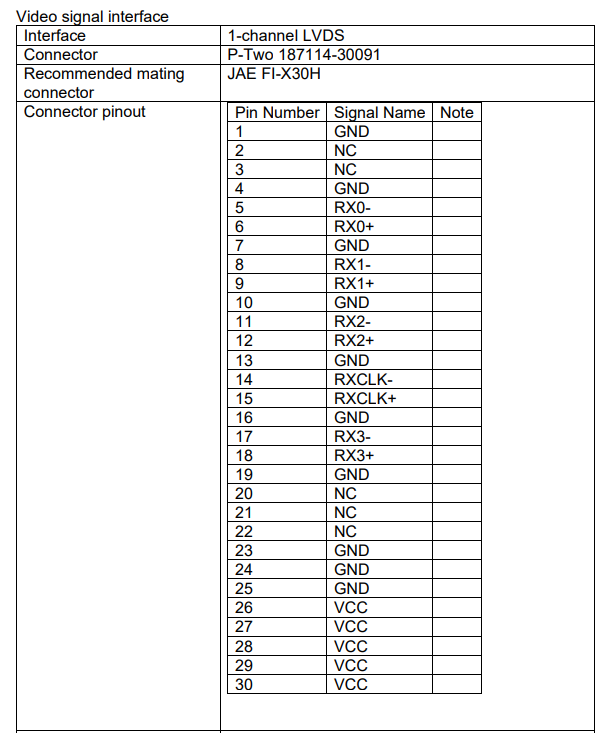

이 문서에서는 Elo 15.6인치 디스플레이 모듈의 LVDS 커넥터 핀 배열을 보여줍니다. P/N:E270963
