E668194 및 Elo 2293L-2294L 전면 장착 베젤 키트에 대한 정보는 어디에서 찾을 수 있나요?

이 문서는 E668194, Elo 2293L-2294L 프론트 장착 베젤 키트에 대한 정보를 제공합니다.

E668194, Elo 2293L-2294L 프론트 장착 베젤 키트는 intelliTouch, SecureTouch, AccuTouch 버전의 제품에만 적합합니다.

키트 내용물:

  • 4 x L 브래킷
  • 4 x 프론트 장착 브래킷
  • 16 x M4*6 장착 나사
  • 4 x 밀봉 폼 스트립-hv
  • 1 x 프론트 장착 금속 베젤 - 검정색

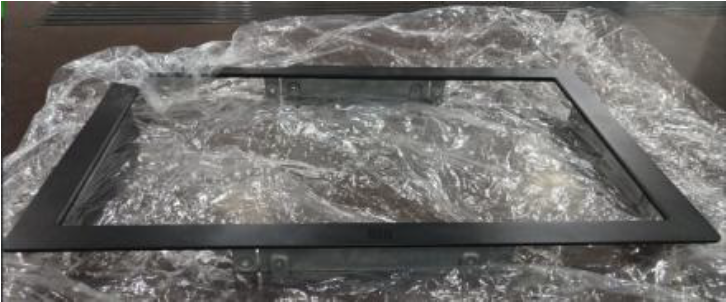

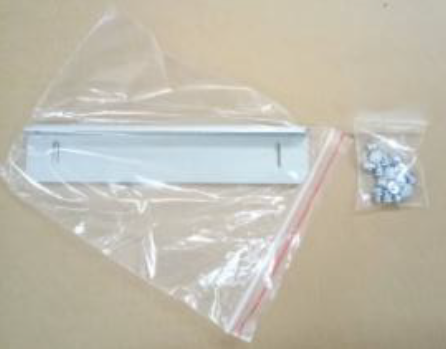

사진

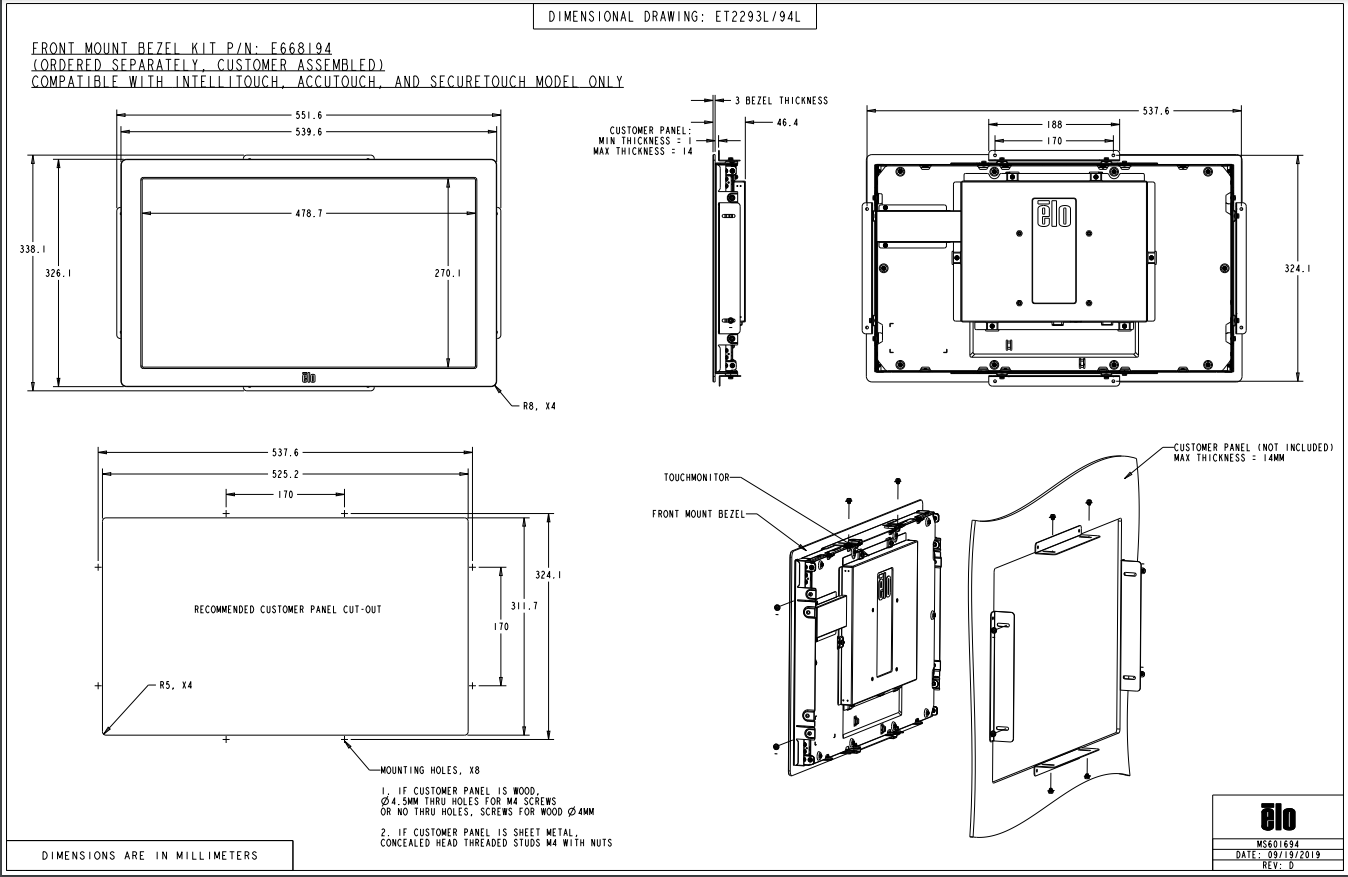

도면 및 조립
